Brazed Plate Heat Exchangers: Compact, Efficient, and Durable Flat Plate Solutions

What Is a Brazed Plate Heat Exchanger (BPHE)?

A brazed plate heat exchanger (BPHE) is a compact, high-efficiency heat exchanger built from corrugated stainless steel plates permanently joined by copper brazing or nickel brazing . It is widely used in HVAC , refrigeration , pool heating, industrial processing, and transportation cooling systems.

Definition

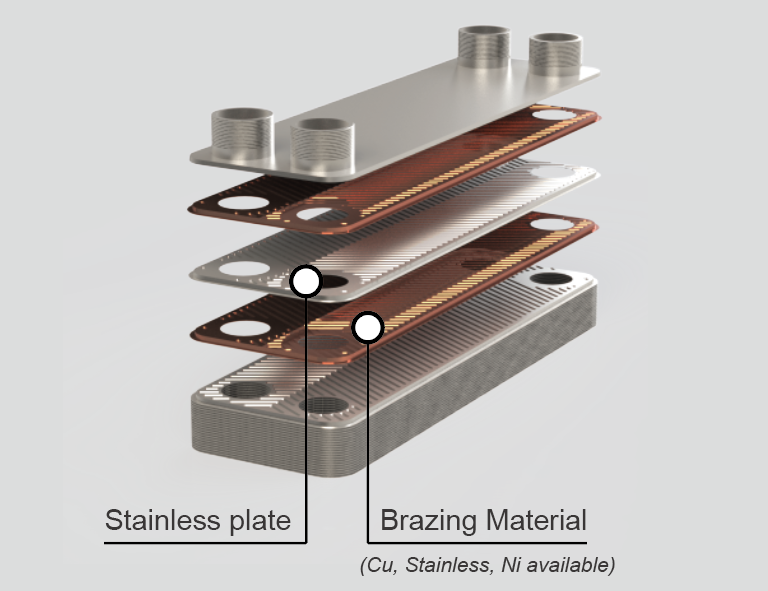

Unlike shell-and-tube exchangers, a BPHE uses multiple corrugated plates stacked into alternating flow channels. The plates are brazed in a vacuum furnace, creating a single sealed block with excellent thermal performance and reliability.

Working Principle

• Two fluids flow through alternating channels between corrugated plates.
• Heat transfers through thin stainless steel walls without fluid mixing.
• Corrugations generate turbulence , increasing heat transfer coefficients.

BPHE vs Gasketed Plate Heat Exchanger (GPHE)

A gasketed plate heat exchanger (GPHE) uses elastomer gaskets between plates, allowing disassembly for mechanical cleaning. A brazed plate heat exchanger is permanently sealed (no gaskets), typically offering a more compact footprint and higher leakage security.

Why Choose a Brazed Plate Heat Exchanger?

• High heat transfer efficiency in a compact volume
• Space-saving and lightweight for skids and retrofits
• No gasket leakage risk (gasket-free construction)
• Lower maintenance and reduced downtime

Core Features of Modern BPHE Designs

• Advanced plate geometry for high turbulence and heat transfer
• Stainless steel plates + copper/nickel brazing materials
• Wide compatibility across HVAC, refrigeration, and industrial duties
• Compact footprint for tight installation spaces

Where Brazed Plate Heat Exchangers Are Used

Comparison: Brazed Plate vs GPHE

• BPHE is permanently sealed; GPHE can be opened for mechanical cleaning.
• BPHE typically offers smaller footprint ; GPHE is preferred where frequent cleaning is required.
• BPHE reduces gasket-related leakage risks; GPHE requires gasket inspection/replacement over time.

Conclusion

A brazed plate heat exchanger delivers strong thermal performance, compactness, and reliability—ideal for energy-efficient HVAC, refrigeration, and many industrial heat transfer applications.

FAQ – Brazed Plate Heat Exchangers

Two fluids flow through alternating channels formed by corrugated stainless steel plates. The plates are brazed (copper or nickel) to create sealed paths. Heat transfers through the thin plates without fluid mixing.

BPHEs are permanently sealed and gasket-free—compact, pressure-resistant, and low maintenance. GPHEs can be opened for mechanical cleaning but require more space and periodic gasket replacement.

Water, glycol mixtures, many refrigerants (R134a, R410A, CO₂), hydraulic oils, and light industrial fluids. Copper-brazed units are typically not recommended for ammonia; nickel-brazed or fully stainless options are preferred for aggressive media.

Limits depend on design and materials. Many BPHE designs are rated up to 30–45 bar and up to ~200°C (model-dependent). Always verify the exact model rating.

BPHEs cannot be mechanically opened, but they can be cleaned using chemical CIP and flushing. Proper filtration and water treatment greatly reduce fouling.
