Heat Exchangers for HVAC Systems
Plate heat exchangers for district heating and cooling, HVAC hydronic systems, heat pumps, domestic hot water and building energy recovery.
Prepare Your Selection Request
Application engineering
Process Role
A hydronic heat exchanger transfers heat between primary and secondary circuits while allowing each loop to use its own pressure, water treatment and circulation arrangement. In a district-energy substation, it links the network temperature program to the building load; it does not create additional heating or cooling capacity.
Heat-pump refrigerant interfaces, domestic hot-water heaters and chilled-water isolation units have different rating conditions. Seasonal operation can change source temperature, flow and load together. Selection therefore needs the operating range as well as the design-day duty.
Thermal interfaces
Typical Thermal Duties
District heating and cooling
Match network supply and return temperatures to the building circuit, including the return-temperature objective and available pump head. The exchanger and control valve share the hydraulic budget.
Heat pumps and domestic hot water
Separate the refrigerant-side evaporator or condenser duty from a water-to-water interface. Domestic-water service also needs compatible contact materials and the documentation required for its jurisdiction and use.
Chilled water, condenser water and free cooling
A separating exchanger can isolate water quality between circuits. Free-cooling changeover depends on source conditions and required approach; heat recovery needs a concurrent heating demand.
Rating basis
Key Engineering Inputs
- Primary and secondary inlet/outlet temperatures, flow rates and load profiles at design and part load.
- Operating/design pressures and allowable pressure drop on each circuit, including valve and piping allowances.
- Glycol type and concentration, water chemistry, fouling allowance and freeze-protection strategy.
- Domestic-water contact requirements, cleaning access, connection standards and any customer-specified certification.
Design review
Application-Specific Design Challenges
Small driving force
A small temperature difference increases required UA. More area, different plate geometry or a multi-pass arrangement may help, but each changes velocity, pressure drop or temperature matching. Long plates and multi-pass designs are options, not universal requirements.
Seasonal water and control conditions
Glycol affects viscosity and thermal properties; use the actual mixture at the operating temperature. Review low-flow operation, fouling and startup control so a nominally adequate unit is not assessed only at its easiest operating point.
Published Evidence Scope
The published industrial heat-pump cases do not establish performance for a district-energy or domestic-water installation. No building-specific project result is claimed here.
Technology fit
Common Heat Exchanger Technologies

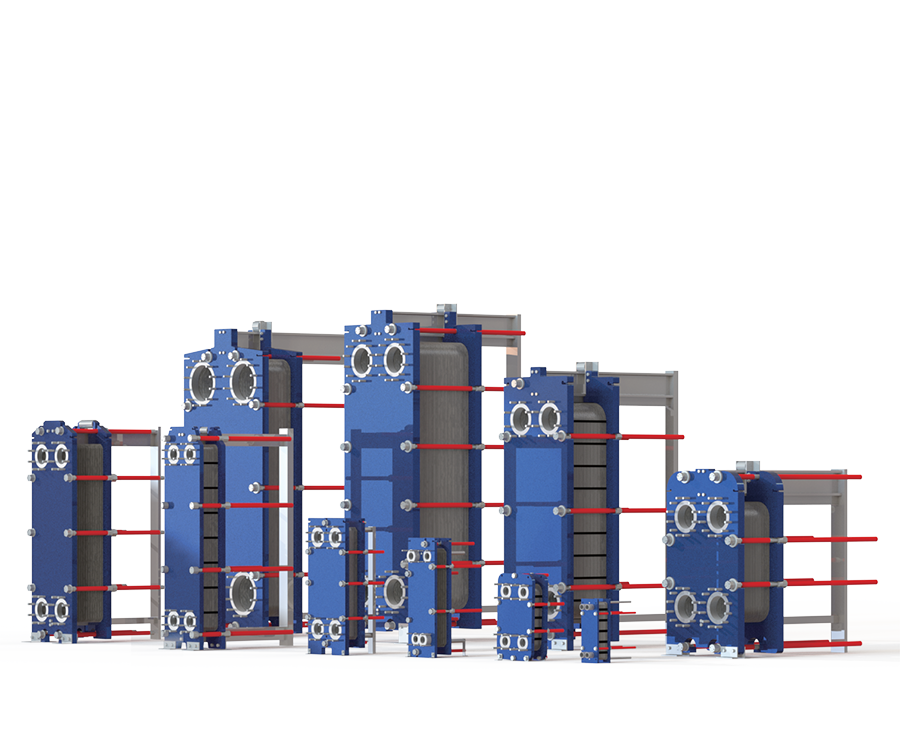

Gasketed plate
Suitable to evaluate for district substations and openable building-water interfaces, subject to plate and seal compatibility.

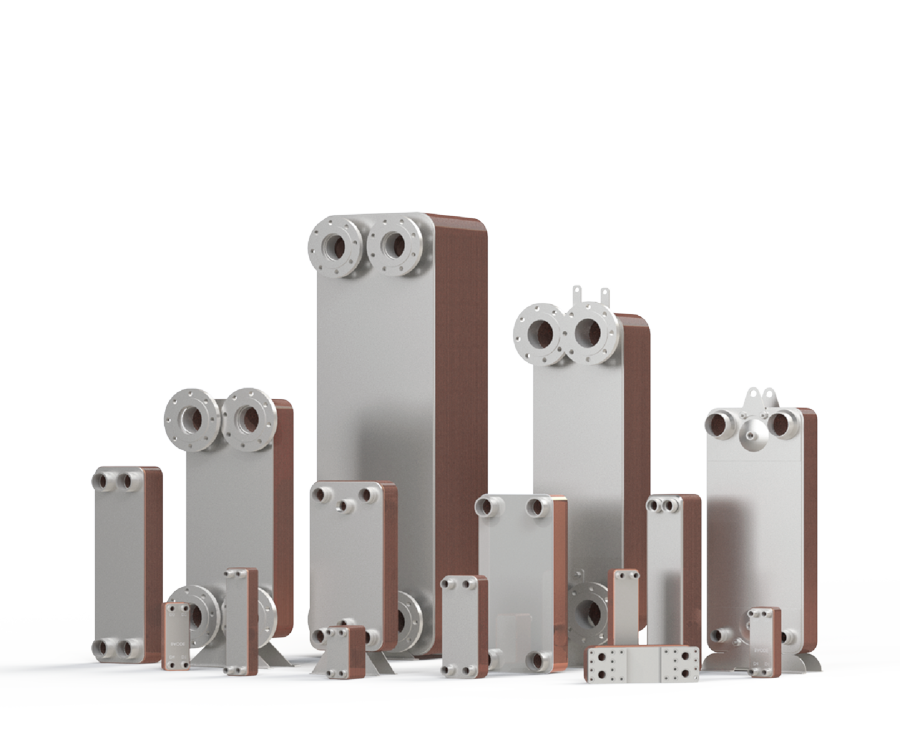

Brazed plate
Consider for packaged heat pumps and clean closed loops where the selected pressure rating and maintenance approach fit.

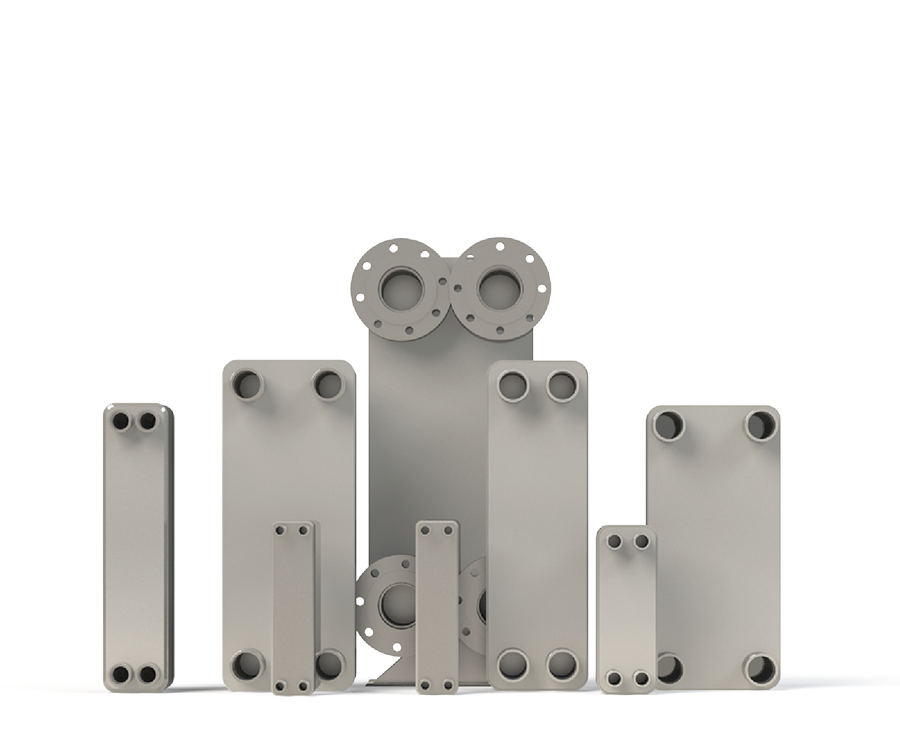

Stainless fusion-bonded
A copper-free candidate where the actual water chemistry or specification calls for it; confirm use-specific compliance.
Prepare your enquiry
What HEXNOVAS Needs for Selection
- Send the primary/secondary schematic and temperature/flow schedules for heating, cooling and part-load operation.
- State glycol concentration, water quality, pressure classes and the pressure drop available at the exchanger.
- For domestic hot water, include peak demand, control arrangement and required material/compliance documentation.
