The Compabloc heat exchanger working principle is based on a compact block of fully welded corrugated plates that create alternating flow channels for two fluids. By combining thin metal plate walls , high turbulence flow , and counter-current arrangement , a Compabloc heat exchanger can deliver very high thermal efficiency in a small footprint, especially in chemical, petrochemical, refinery, and heat recovery services.
What Is the Working Principle of a Compabloc Heat Exchanger?
A Compabloc heat exchanger is a type of fully welded plate heat exchanger . Inside the exchanger, corrugated metal plates are welded into a compact plate block. Two process fluids flow through alternating channels, and heat is transferred through the thin plate walls that separate them.
A welded core removes inter-plate gasket constraints, but the allowable service envelope still depends on materials, welds, cover seals and the approved design.
- Thin metal plate walls reduce thermal resistance
- Corrugated channels generate turbulence and improve heat transfer coefficients
- Counter-current flow maximizes temperature driving force
- Compact plate pack provides high thermal duty in limited space
Flow Arrangement and Heat Transfer Mechanism

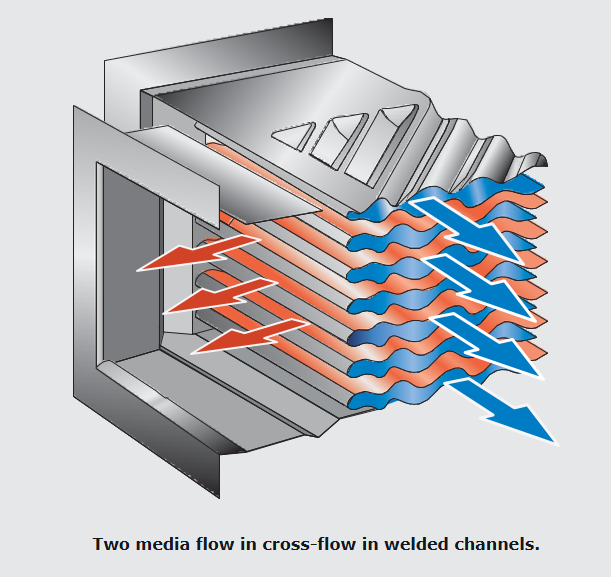

The heat transfer mechanism inside a Compabloc heat exchanger is straightforward in principle, but extremely effective in practice. One fluid enters one set of plate channels, while the second fluid enters the adjacent channels. The two streams remain physically separated, but thermal energy flows through the thin metal plates from the hotter side to the colder side.
In most industrial designs, the two fluids move in counter-current flow . This means the hot fluid and cold fluid travel in opposite directions. Counter-current arrangement maintains a stronger average temperature difference along the full flow path, which is one of the main reasons the Compabloc heat exchanger working principle is so efficient.
Inside a Compabloc heat exchanger:
- One fluid flows through alternating channels
- The second fluid flows through adjacent channels
- Heat passes through thin plate walls
- The welded plate pack keeps the streams separated
- Counter-current flow increases energy recovery performance
Because the thermal path is short and the heat transfer surface is large relative to the exchanger size, a Compabloc can often achieve a small temperature approach. This is especially valuable in energy recovery, process heating, condensation, evaporation, and liquid-to-liquid duties where efficiency directly affects operating cost.
Corrugated Plate Geometry and Turbulence
The corrugated plate geometry is not just a structural detail. It is central to the performance of a Compabloc heat exchanger. When fluids flow through corrugated channels, the streamlines are repeatedly disturbed. This reduces stagnant boundary layers on the plate surface and promotes more intense mixing within the fluid.
In practical terms, turbulence means that heat is transferred faster. A smooth surface allows a thicker boundary layer to build up, which acts like thermal insulation. A corrugated surface breaks that layer and increases the overall heat transfer coefficient.
Main performance benefits of corrugated plates
- More effective heat transfer area in a compact volume
- Higher turbulence even at moderate flow rates
- Reduced boundary layer thickness
- Improved thermal efficiency compared with smoother flow paths
- Better compactness than many traditional exchanger types
This is why fully welded plate heat exchangers such as Compabloc are frequently selected when the plant wants a compact exchanger with high thermal performance and limited installation space.
Why Compabloc Heat Exchangers Are Highly Efficient
The strong reputation of the Compabloc design comes from the fact that several efficiency-enhancing mechanisms are working together at the same time. It is not just one feature. It is the combination of thin plates, corrugated surfaces, counter-current flow, and compact geometry that makes the design so powerful.
- Thin heat transfer walls reduce conduction resistance
- High turbulence flow increases the convective heat transfer coefficient
- Counter-current arrangement maintains a strong temperature driving force
- Installed footprint includes piping and maintenance access; insulation and operating conditions govern external heat loss.
Thin plates and corrugated channels can support a high heat-transfer coefficient in suitable duties. Compare the same thermal duty, allowable pressure drop, fouling factor, materials and phase-change conditions, including maintenance access and nozzle/layout constraints; no universal performance multiplier is established here.
Effect of Fully Welded Construction
Welding removes inter-plate gaskets from the core; remaining seals, weld integrity and the rated design still govern service limits.
Advantages of fully welded construction
- No inter-plate gaskets in the welded core; other sealing interfaces require review.
- Mechanical integrity depends on fabrication, rating and inspection.
- Aggressive-fluid suitability depends on material compatibility.
- Thermal-cycle capability requires design-specific assessment.
- Reliability depends on operating conditions and maintenance.
This is one of the reasons the Compabloc heat exchanger is widely associated with industries such as chemical processing, petrochemical production, refinery service, pharmaceutical manufacturing, and advanced heat recovery systems.
Typical Operating Conditions and Applications
The Compabloc heat exchanger working principle is particularly valuable where the plant needs high performance under severe process conditions. Although the exact limits depend on materials, process design, code requirements, and manufacturer configuration, Compabloc units are commonly associated with the following types of service:
- High temperature processes
- High pressure systems
- Corrosive chemical service
- Solvent and hydrocarbon duties
- Heat recovery and energy integration projects
- Condensation, reboiling, and liquid-to-liquid process exchange
In many plants, the decision to use Compabloc technology is not only about heat transfer. It is also about saving space , reducing installed footprint , and handling more difficult media than a standard gasketed plate exchanger would comfortably tolerate.
Engineering Summary
The Compabloc heat exchanger working principle combines three major strengths: thin plate heat transfer , corrugation-induced turbulence , and counter-current flow . These are packaged into a fully welded compact plate block that can deliver high thermal efficiency in difficult industrial services.
For engineers comparing exchanger technologies, the Compabloc design is often attractive when the process requires a compact footprint, strong thermal performance, and better suitability for high temperature, high pressure, or chemically aggressive fluids. That is why the Compabloc heat exchanger remains one of the best-known fully welded plate heat exchanger concepts in modern process industry applications.
Frequently Asked Questions
What is a Compabloc heat exchanger?
A Compabloc heat exchanger is a fully welded plate heat exchanger made from corrugated plates welded into a compact heat transfer block. It is designed for demanding industrial duties involving high temperature, high pressure, or aggressive media.
How does a Compabloc heat exchanger work?
It works by sending two fluids through alternating channels formed by welded corrugated plates. Heat passes through the thin plate walls from the hot side to the cold side, while the corrugated geometry creates turbulence that increases heat transfer efficiency.
Why is counter-current flow important in a Compabloc heat exchanger?
Counter-current flow can support close temperature programs, but the achievable approach depends on the actual duty, coefficient, area and allowable pressure drop.
What are the advantages of a fully welded plate heat exchanger?
Removing inter-plate gaskets changes the available service options. Heat, pressure, cycling and chemical capability must still be checked against the actual design and materials.
Compabloc vs shell and tube heat exchanger: what is the difference?
A welded plate design may be compact for a particular duty; neither it nor a shell-and-tube design is universally more efficient. Compare both on the same thermal, hydraulic, fouling and maintenance basis.
Where are Compabloc heat exchangers commonly used?
They are commonly used in chemical plants, petrochemical units, refineries, solvent service, energy recovery projects, and other industrial processes where compact high-performance heat transfer is required.
| Performance factor | Welded plate block | Shell-and-tube |
| Heat transfer surface | Corrugated welded plates | Tubes within a shell |
| Thermal performance | Depends on rated duty, flow and fluid properties | Depends on rated duty, flow and fluid properties |
| Installed space | Include covers, piping and maintenance access | Include piping and bundle/service access |
| Approach temperature | Rate the actual temperature program | Rate the actual temperature program |
| Selection basis | Duty, pressure drop, fouling, materials and phase behavior | Duty, pressure drop, fouling, materials and phase behavior |
