Comparison Between Stainless-Steel (Nickel) Brazing and Copper Brazing in Heat Exchangers

Original HEXNOVAS article

Comparison Between Stainless-Steel (Nickel) Brazing and Copper Brazing in Heat Exchangers

Comparison Between Stainless-Steel (Nickel) Brazing and Copper Brazing in Heat Exchangers

Brazed plate heat exchangers (BPHE) rely on a filler metal to permanently bond stainless-steel plates together under vacuum or controlled atmosphere. The choice of brazing material determines the exchanger’s temperature resistance, corrosion behavior, and application suitability.

1. Material and Process Characteristics

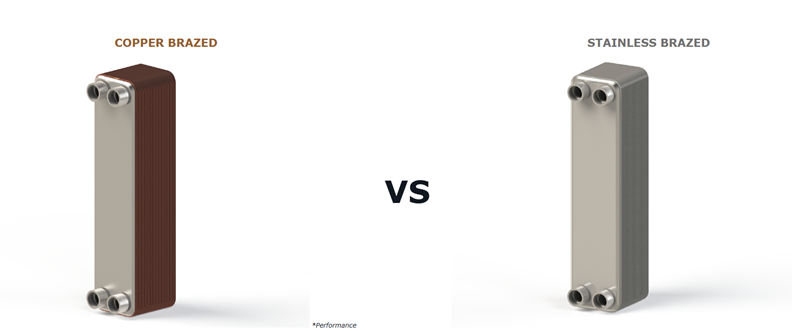

2. Performance Comparison

Cu-Brazed BPHE

• Excellent thermal efficiency due to high copper conductivity.
• Ideal for HVAC, refrigeration, and water-based heating systems.
• Compact and cost-effective for medium pressure applications.
• Sensitive to ammonia, sulphur compounds, and chlorides.

Stainless-Steel / Nickel-Brazed BPHE

• Superior chemical resistance against ammonia, seawater, glycols, organic acids, and CO₂-related duty.
• Suitable for higher-temperature and higher-pressure processes.
• Longer service life in industrial, marine, and food-grade environments.
• Slightly lower heat-transfer rate but compensated by durability and reliability.

3. Typical Applications

4. Development Outlook

• Copper brazing remains dominant in HVAC and standard industrial markets due to cost and proven reliability.
• Nickel/stainless brazing is expanding in ammonia, marine, and hydrogen-related duty due to corrosion resistance and sustainability goals.
• Hybrid and diffusion-bonding technologies are used for extreme environments.
• Trends include more precise manufacturing control and materials designed for lower environmental impact.

5. Conclusion

Copper and stainless-steel (nickel) brazing each solve different engineering problems. Copper brazing is efficient and economical for standard HVAC duty, while nickel/stainless brazing improves reliability under aggressive chemistry and higher temperature. The best choice is the one that matches your real medium , operating envelope , and lifecycle cost target .

Frequently Asked Questions (FAQ)

No. Copper may react with ammonia and can degrade over time. For ammonia systems, nickel-brazed heat exchangers are typically recommended .

Yes, especially at higher temperatures. Nickel-based brazing alloys maintain mechanical stability better under elevated temperature conditions.

Copper has higher thermal conductivity (≈390 W/m·K) than nickel alloys (≈90 W/m·K). However, overall performance also depends on plate design and flow conditions—not only filler material.

Nickel-brazed heat exchangers are generally preferred because chlorides can accelerate corrosion risk for copper-brazed units in marine service.

Yes. Nickel alloy filler materials and higher process complexity increase cost. In corrosive or high-risk services, longer service life often justifies the investment.

Pressure capability depends on plate thickness and construction, not only brazing material. Always confirm the rating for the exact model and conditions.

Not exactly. Nickel-brazed BPHE uses stainless-steel plates bonded by a nickel-based alloy. Diffusion-bonded or fusion-bonded exchangers are different technologies.
