Material Selection for Heat Exchangers

Material Selection for Heat Exchangers

Temperature, pH Range and Chloride (Cl⁻) Resistance Comparison

Selecting the proper material for a heat exchanger is critical to ensure long-term reliability, corrosion resistance, and operational safety.

Material choice depends primarily on:

• Operating temperature
• pH value of the medium
• Chloride (Cl⁻) concentration (ppm)
• Pressure conditions
• Presence of oxidizing agents

This article compares five commonly used materials in industrial heat exchangers: 304, 316L, Titanium (Ti), 254 SMO, and Hastelloy C276 .

Material Quick Comparison Table

One table view for temperature, pH range, chloride limit, and typical heat exchanger applications.

Comparative Summary Table

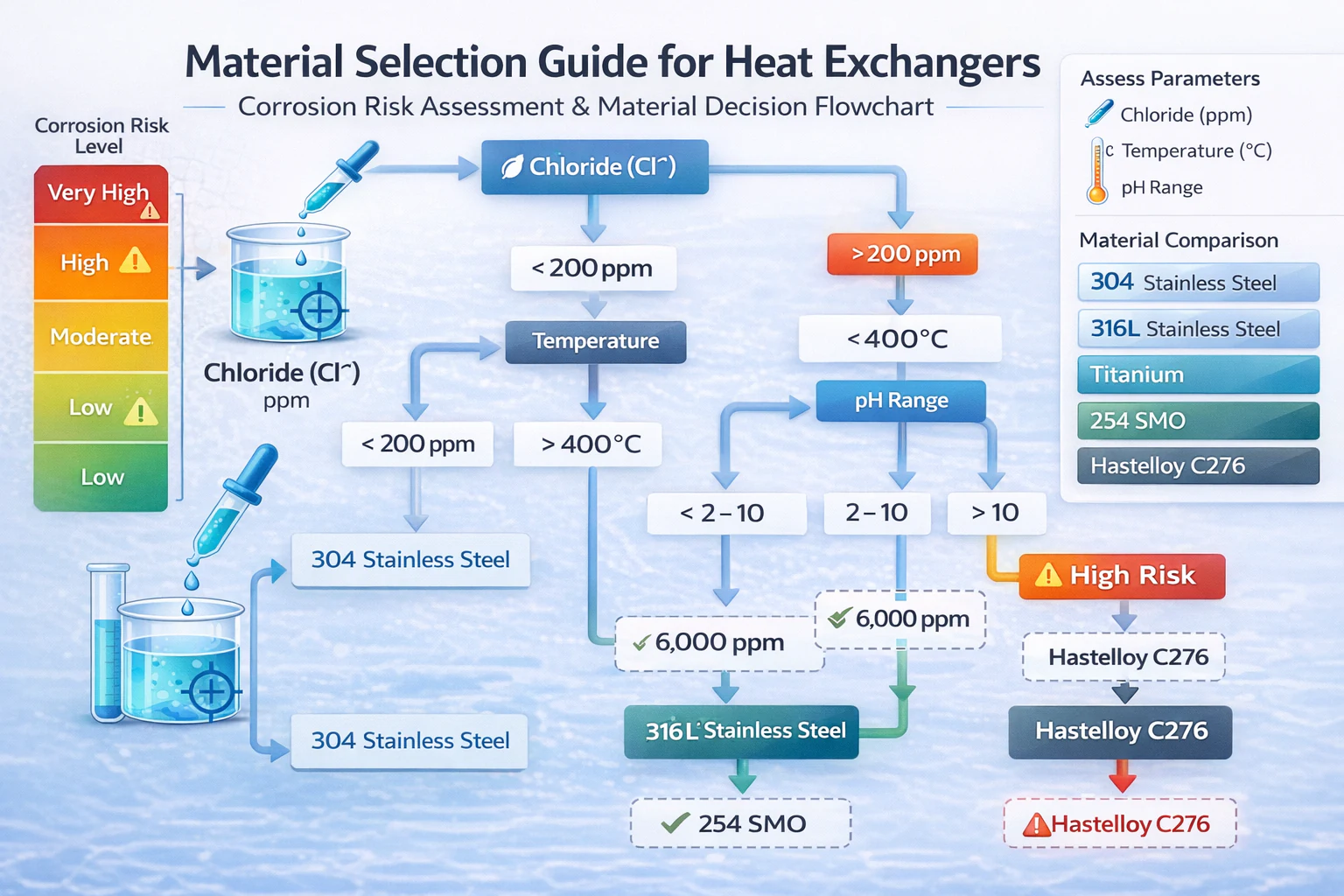

How to Choose the Right Material?

Material selection should consider:

• Chloride concentration first
• Operating temperature second
• pH range third
• Budget and lifecycle cost

For swimming pool applications:

• Freshwater → 316L
• Saltwater → Titanium
• Brackish water → 254 SMO

For chemical plants:

• Acidic media → C276

Conclusion

Material selection for heat exchangers is a balance between corrosion resistance, mechanical strength, temperature tolerance, and cost.

While 304 and 316L are economical solutions for controlled environments, titanium and high-alloy materials like 254 SMO and C276 provide superior durability in aggressive conditions.

Proper analysis of pH, chloride concentration, and temperature is essential to prevent premature corrosion and extend service life.

Frequently Asked Questions (FAQ)

304 stainless steel is generally safe below 200 ppm chloride concentration in low-temperature conditions. Above this level, the risk of pitting corrosion increases significantly.

316L may start experiencing pitting corrosion above 1,000 ppm chloride, especially when temperatures exceed 60–80°C. Higher temperatures accelerate corrosion risk.

Titanium is highly resistant to chloride-induced pitting and stress corrosion cracking. It is suitable for seawater applications (>20,000 ppm Cl⁻), but scaling can still occur if water chemistry is not controlled.

254 SMO is recommended for moderate to high chloride environments (up to approximately 6,000 ppm at lower temperatures). It offers significantly better pitting resistance than 316L.

Hastelloy C276 is selected for extreme environments:

• Strong acids
• High chloride + high temperature
• Chemical process industry

It is usually unnecessary for standard water or pool heating systems due to high cost.

Yes. In neutral water systems, chloride concentration is the main driver of corrosion. In strong acidic environments (low pH), corrosion risk increases even if chloride levels are moderate.

Corrosion rates increase exponentially with temperature. A material that performs safely at 40°C may fail at 90°C under the same chloride concentration.

304 is generally not recommended for chlorinated or saltwater pools. Even moderate chloride levels can cause premature failure.

254 SMO can replace titanium in some brackish water applications. However, for full seawater exposure or highly aggressive chloride conditions, titanium remains more reliable.

For water-based systems:

• Chloride concentration
• Operating temperature
• pH range

Chloride + temperature together determine pitting resistance requirements.

Consider:

• Maximum (not average) chloride concentration
• Peak operating temperature
• Oxygen content
• Flow velocity
• Design life

Conservative material selection reduces lifecycle cost.

At elevated temperatures, chloride ions penetrate the passive film more easily, leading to pitting and stress corrosion cracking.

• Freshwater pool → 316L
• Saltwater pool → Titanium
• Brackish water → 254 SMO
• Chemical process → C276
