​Distributor Technology in Alfa Laval Plate Heat Exchangers

Plate Heat Exchanger Distributor Technology – Equalancer System Explained

Understanding the Equalancer System

1. Introduction

In plate heat exchangers (BPHEs), especially when operating as evaporators , the way fluid is distributed at the inlet has a major impact on performance. Uneven distribution can lead to poor heat transfer, unstable operation, and reduced system efficiency.

To address this challenge, some company like Alfa Laval developed a patented inlet distribution concept known as the Equalancer system . This technology is integrated directly into the heat exchanger plates and is designed to stabilize and equalize refrigerant flow before it enters the main plate channels.

2. Why Flow Distribution Is Critical

In evaporator applications, the working fluid typically enters the heat exchanger as a two-phase mixture (liquid + vapor). Without proper distribution:

• Some channels may receive too much vapor and too little liquid
• Other channels may flood with liquid
• Local dry-out and excessive superheating can occur
• Heat transfer efficiency becomes uneven across the plate pack

These effects reduce the effective heat transfer area and can negatively impact compressor stability and overall system reliability.

3. The Equalancer Concept

The Equalancer system is not a separate mechanical distributor . Instead, it is a pressed geometric structure formed directly in the heat exchanger plate , near the inlet port.

Its purpose is to condition the incoming flow so that each plate channel receives a similar mixture quality and mass flow rate .

Key design objectives of the Equalancer system include:

• Stabilizing two-phase flow
• Promoting controlled re-mixing of liquid and vapor
• Reducing jet effects at the inlet
• Improving repeatability from plate to plate

4. Structural Features of the Equalancer System

Although compact, the Equalancer consists of several distinct functional elements:

• Inlet circular cavity Receives the incoming refrigerant from the connection port.
• Small guiding orifices Control how the fluid enters the distribution structure and limit direct high-velocity jets.
• Crescent-shaped (half-moon) channel The core of the Equalancer design. Forces the fluid to follow a curved path Encourages phase interaction and redistribution Smooths velocity differences between liquid and vapor
• Exit orifice Releases the conditioned flow toward the main plate flow field.

All these features are formed as part of the plate pressing process, ensuring high dimensional accuracy and consistency.

5. Flow Mechanism and Operating Principle

In evaporator operation, the flow process can be summarized as follows:

• Two-phase refrigerant enters the inlet circular cavity.
• The fluid passes through a small orifice into the Equalancer structure.
• Inside the crescent-shaped channel, the fluid follows a curved path, promoting: Secondary mixing Phase redistribution Reduction of local velocity peaks
• The flow exits through another small opening.
• The conditioned refrigerant is then distributed into the plate channels more evenly.

This double-mixing effect significantly reduces channel-to-channel imbalance.

6. Performance Benefits

The Equalancer system provides several important advantages:

Improved evaporator efficiency

• More uniform refrigerant distribution
• Reduced superheating variations
• Better utilization of heat transfer surface

Stable operation

• Less sensitivity to inlet quality variations
• Improved system controllability

Negligible impact in condenser mode

• Pressure drop introduced by the Equalancer is minimal
• No negative effect when the unit operates as a condenser

Manufacturing and reliability benefits

• No additional components
• Fully integrated into the plate
• High repeatability and robustness
• Suitable for high-volume production

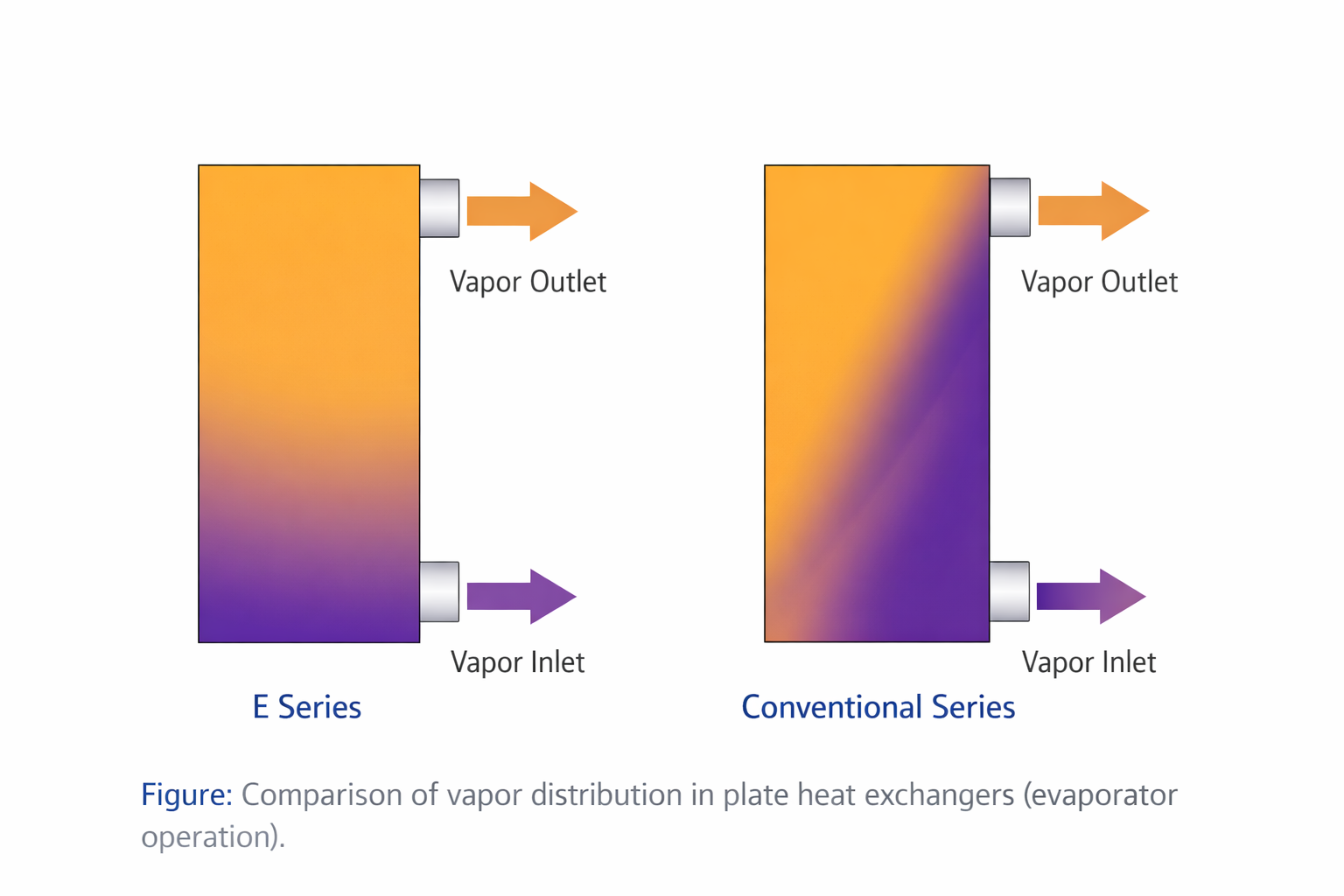

7. Comparison with Conventional Distribution Methods

8. Conclusion

The Equalancer system used in Alfa Laval brazed plate heat exchangers is a subtle but critical design feature . By using carefully engineered plate embossing geometry, it achieves effective two-phase flow conditioning in a very small space.

Rather than relying on external distributors or complex assemblies, the Equalancer demonstrates how advanced plate design can significantly improve heat exchanger performance, stability, and reliability , especially in demanding evaporator applications.
