Scaling vs Fouling in Heat Exchangers

Scaling vs Fouling in Heat Exchangers: The Hidden Profit Drain You Don’t See

Heat exchangers rarely “fail” overnight. They lose performance gradually through scaling and fouling —driving higher energy consumption, larger temperature approach, and rising pressure drop. This guide explains the difference and how to prevent it.

When Heat Exchangers Don’t Fail — They Drain Profit

A heat exchanger usually keeps running even when it becomes inefficient. The system still produces the required outlet temperature—but at a higher operating cost. That cost is often invisible until OPEX has already been impacted for months.

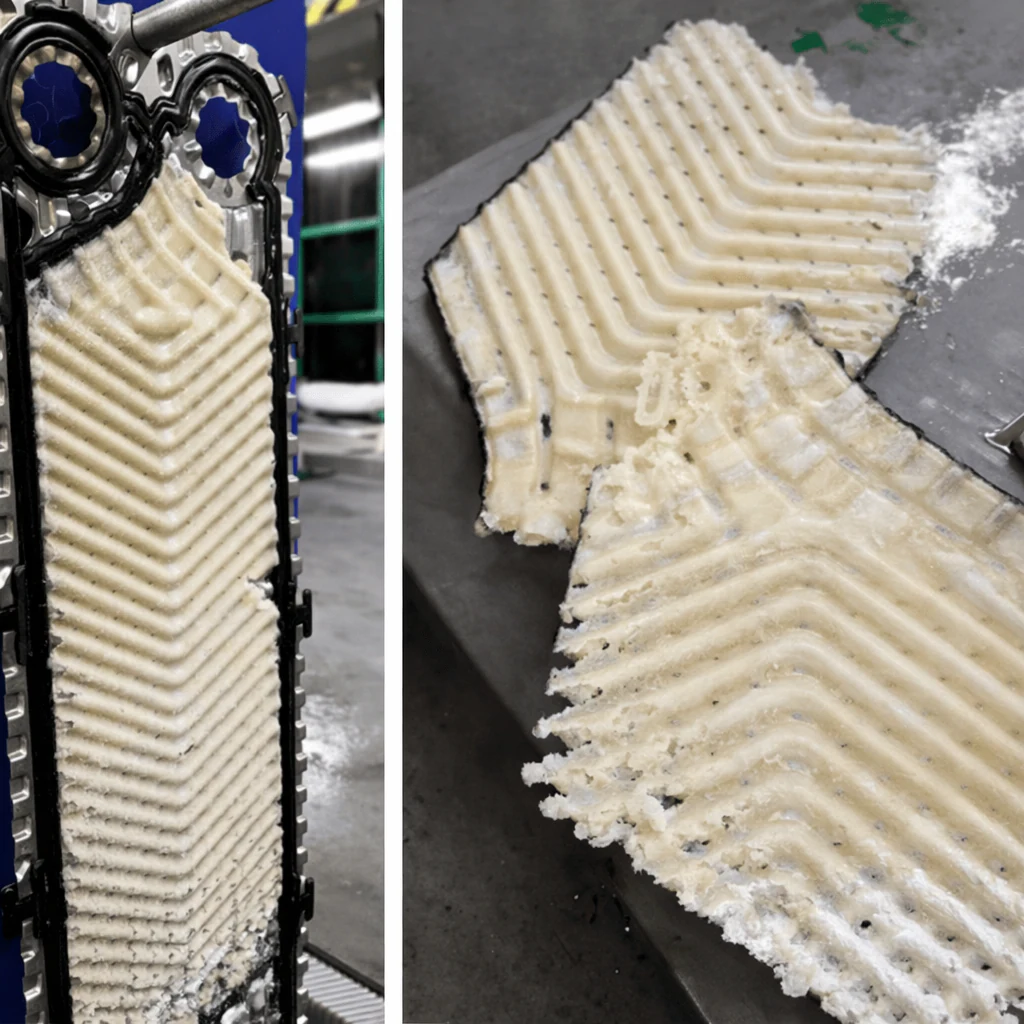

Scaling Is Not Fouling (And They Require Different Fixes)

In industrial heat transfer, “dirty exchanger” is not one problem. The mechanism matters because the prevention strategy changes.

The Real Cost: Thermal Resistance (Not “Maintenance”)

Scaling and fouling add an insulating layer between hot and cold fluids. That increases thermal resistance and reduces the overall heat transfer coefficient (U-value). The process compensates by consuming more energy or losing capacity.

Design Matters More Than Cleaning Frequency

Cleaning treats symptoms. Design reduces root causes. In high-risk service, the wrong exchanger selection can accelerate fouling and increase OPEX. Key design variables include:

• Plate pattern and chevron angle (turbulence vs fouling tolerance)
• Channel gap (wide-gap vs standard)
• Flow distribution (avoid dead zones and low-velocity areas)
• Approach temperature margin (avoid pushing into scaling zones)
• Material selection (chloride/pH/temperature compatibility)

Prevention Strategy: Chemistry + Filtration + Monitoring

A reliable prevention program is a combination—not a single action:

• Chemistry control : hardness, alkalinity, pH, chloride, silica risk
• Filtration : protect channels from particulates/fibers
• Flow optimization : maintain adequate velocity and shear stress
• Monitoring : track ΔP, approach temperature, and heat duty drift
• Correct exchanger type : GPHE / semi-welded / free-flow / spiral based on the medium

Engineering Conclusion

Scaling and fouling do not mean the heat exchanger is “bad.” They indicate incomplete thermal management. If energy is a relevant cost in your plant, treat exchanger cleanliness as an efficiency KPI—not a maintenance event.

FAQ: Scaling vs Fouling in Heat Exchangers

Scaling is typically inorganic precipitation driven by water chemistry and temperature, while fouling includes organic matter, biofilm, sludge, oils, and fibers driven by process conditions and flow regime.

Deposits reduce effective flow area and increase friction. In plate heat exchangers, partial blockage and uneven fouling can accelerate ΔP rise and reduce stable flow distribution.

Cleaning restores performance temporarily, but prevention is usually more cost-effective: chemistry control, filtration, correct plate pattern selection, and monitoring reduce recurrence and protect OPEX.

Choose Free Flow PHE when the medium contains fibers, soft solids, sludge, viscous liquids, or frequent fouling that causes channel plugging in standard chevron plates.

In sludge heat recovery and high-fouling service, a Spiral Plate Heat Exchanger (SPHE) often provides higher operational stability because it uses a continuous channel and avoids complex distribution zones.

Track pressure drop (ΔP), temperature approach (hot outlet vs cold inlet), heat duty drift, and energy consumption. Gradual trend changes usually indicate scaling/fouling long before failure.
