CO₂ Refrigeration Heat Recovery with High-Pressure BPHEs
Learn how CO₂ refrigeration heat recovery works in supermarkets and how ultra high pressure brazed plate heat exchangers recover waste heat to produce hot water, improving system efficiency and reducing energy costs.
Original HEXNOVAS article
CO₂ Refrigeration Heat Recovery Solution for Supermarkets
Ultra High Pressure Brazed Plate Heat Exchangers for CO₂ Refrigeration Systems
As industrial refrigeration increasingly adopts CO₂ (R744) , system pressure becomes one of the most critical engineering factors. HEXNOVAS Ultra High Pressure Brazed Plate Heat Exchangers are designed specifically for high-pressure refrigeration environments where reliability, compact design, and thermal efficiency are essential.
Application Background – CO₂ Refrigeration in Food Processing
Modern food processing plants increasingly adopt CO₂ refrigeration systems due to their excellent environmental performance and energy efficiency. However, CO₂ systems operate at significantly higher pressures than traditional refrigerants, especially in transcritical operation.
In such systems, heat exchangers must withstand high pressure conditions while delivering stable heat transfer performance. HEXNOVAS Ultra High Pressure BPHE units are engineered to meet these requirements in demanding industrial refrigeration environments.

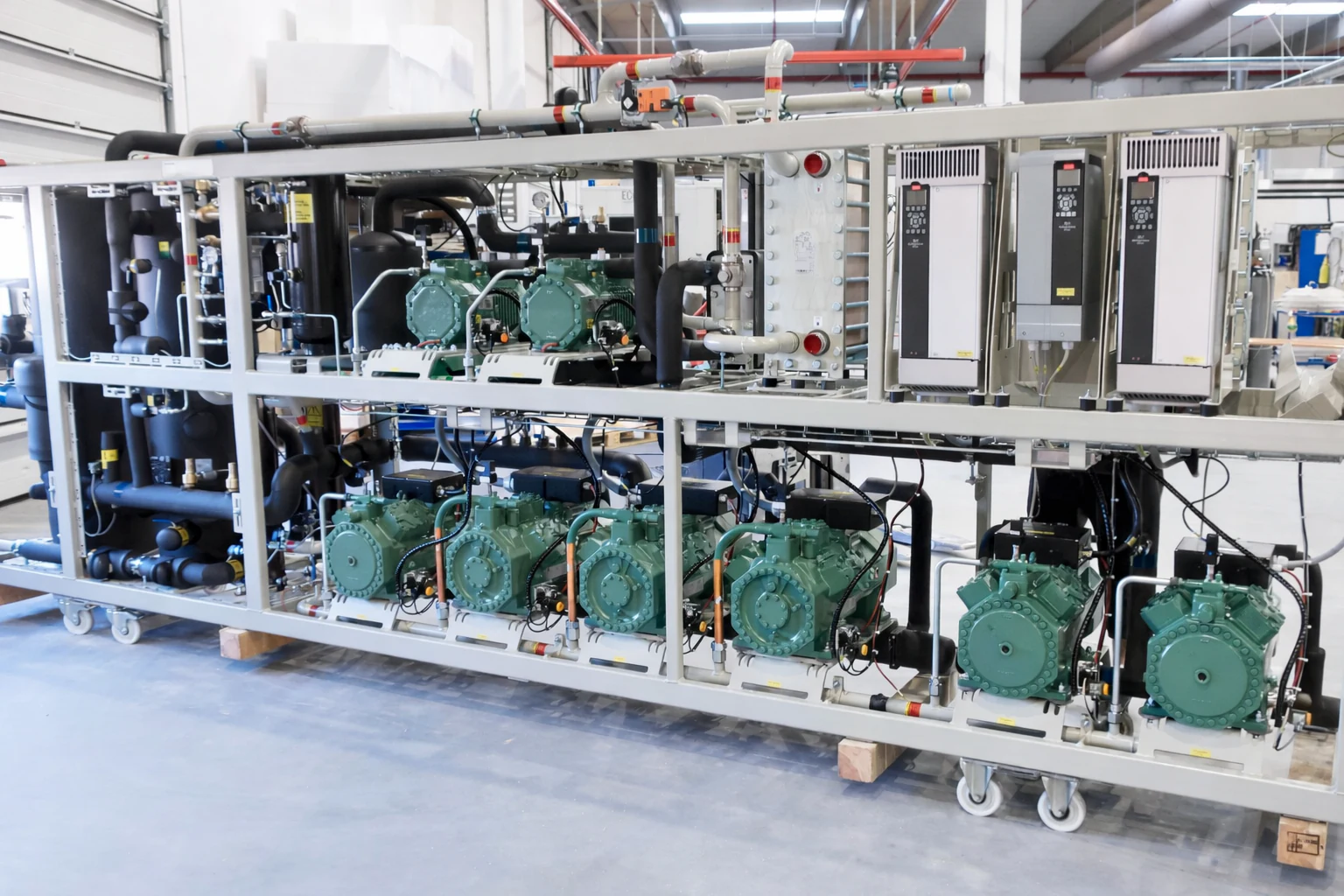

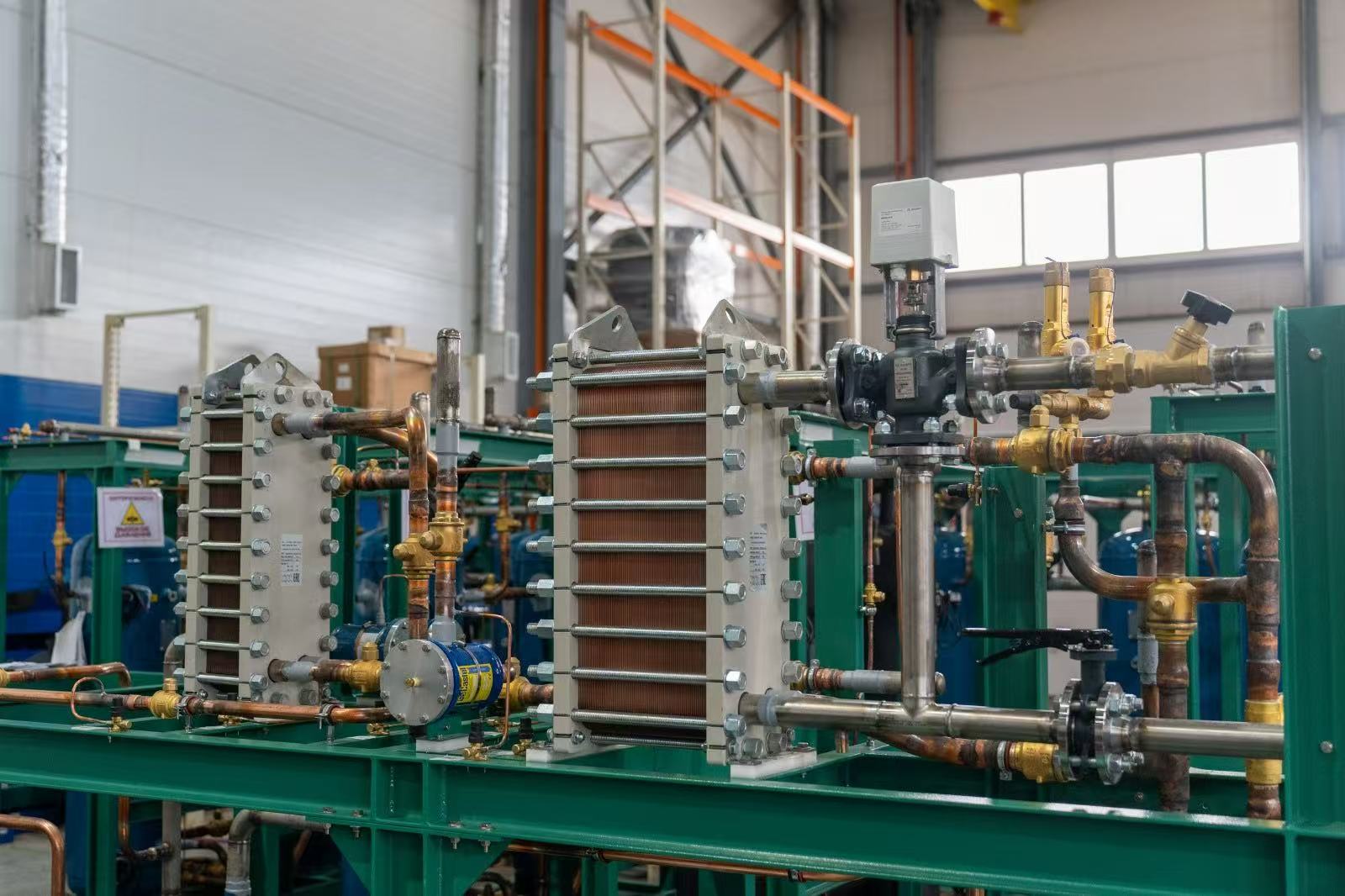

Example of CO₂ Refrigeration Systems Using Plate Heat Exchangers
The following examples illustrate typical industrial refrigeration installations where plate heat exchangers are integrated within skid-mounted refrigeration systems.
Engineering Challenges in CO₂ Systems
- High operating pressure compared with traditional refrigerants
- Pressure cycling caused by load variations
- High mechanical stress during transcritical operation
- Strict reliability requirements in food processing plants
HEXNOVAS Solution – Ultra High Pressure BPHE
HEXNOVAS has developed a series of Ultra High Pressure Brazed Plate Heat Exchangers designed specifically for high-pressure CO₂ refrigeration applications.
- High pressure mechanical design for CO₂ systems
- Compact heat transfer efficiency
- Gasket-free sealed construction
- Reliable long-term operation under pressure cycling
- Suitable for industrial refrigeration and heat recovery
Typical Applications
- Food processing refrigeration plants
- Industrial cooling systems
- Heat recovery modules
- Secondary cooling loops
- Process cooling installations
Customer Value
By integrating HEXNOVAS Ultra High Pressure BPHE technology into CO₂ refrigeration systems, operators can achieve safer operation, compact equipment design, and improved system efficiency. This solution supports the transition toward natural refrigerants while ensuring reliable industrial performance.
Product
HEXNOVAS CO₂ High Pressure Brazed Plate Heat Exchanger
