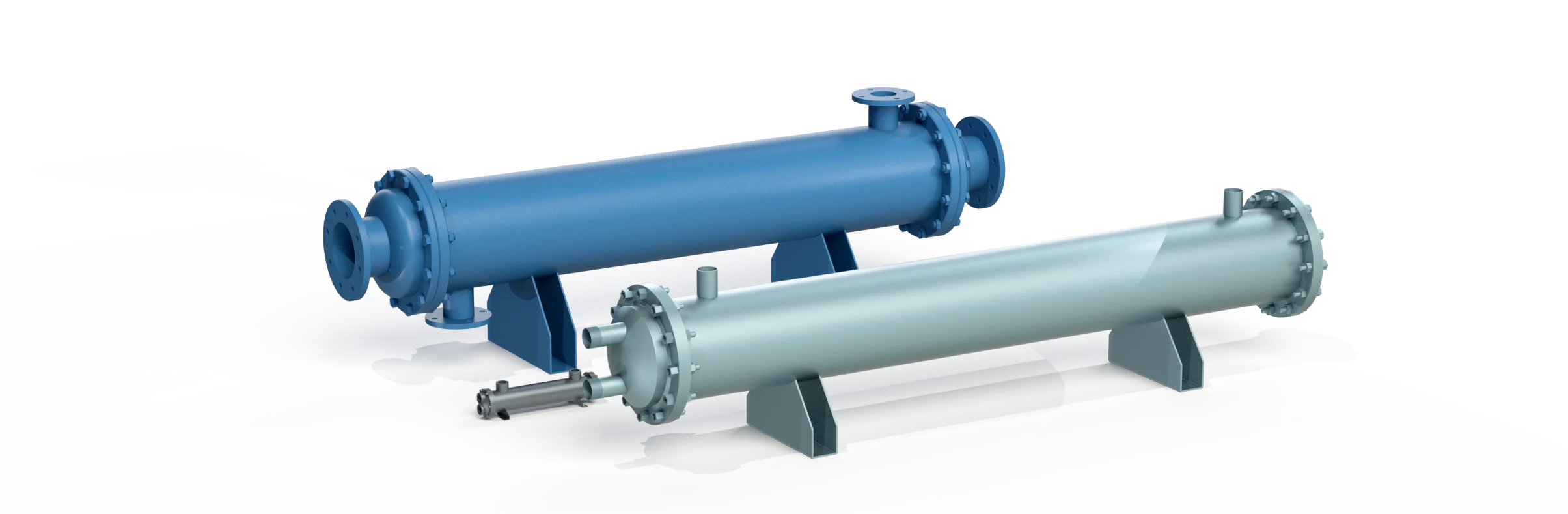

Shell & Tube Heat Exchangers Robust, configurable equipment for high pressure, gases, viscous media and demanding industrial services.
Home / Products / Tubular Heat Exchangers / Shell & Tube Heat Exchangers Overview How it works Construction & flow Models & specifications Benefits Applications FAQ Downloads Request product selection Working principle
How the technology transfers heat. One fluid flows through a tube bundle while the second flows through the surrounding shell. Baffles guide shell-side flow across the tubes and support the bundle, allowing the geometry to be adapted to the process.
Construction Pressure shell with internal tube bundle
Flow paths Independent shell-side and tube-side circuits
Cleaning Mechanical or chemical, depending on configuration
Design basis Thermal, vibration and pressure-vessel calculation Engineering explained

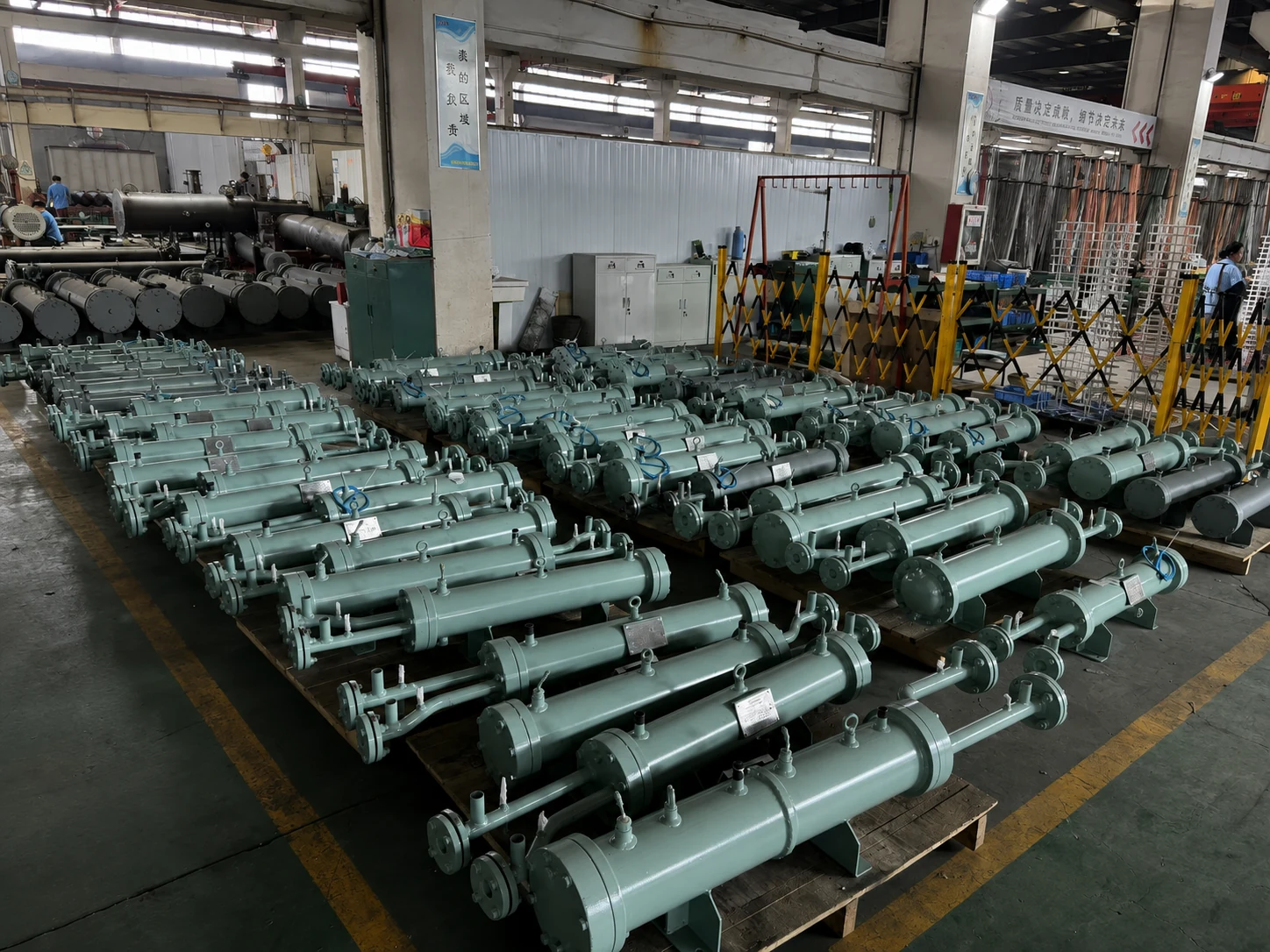

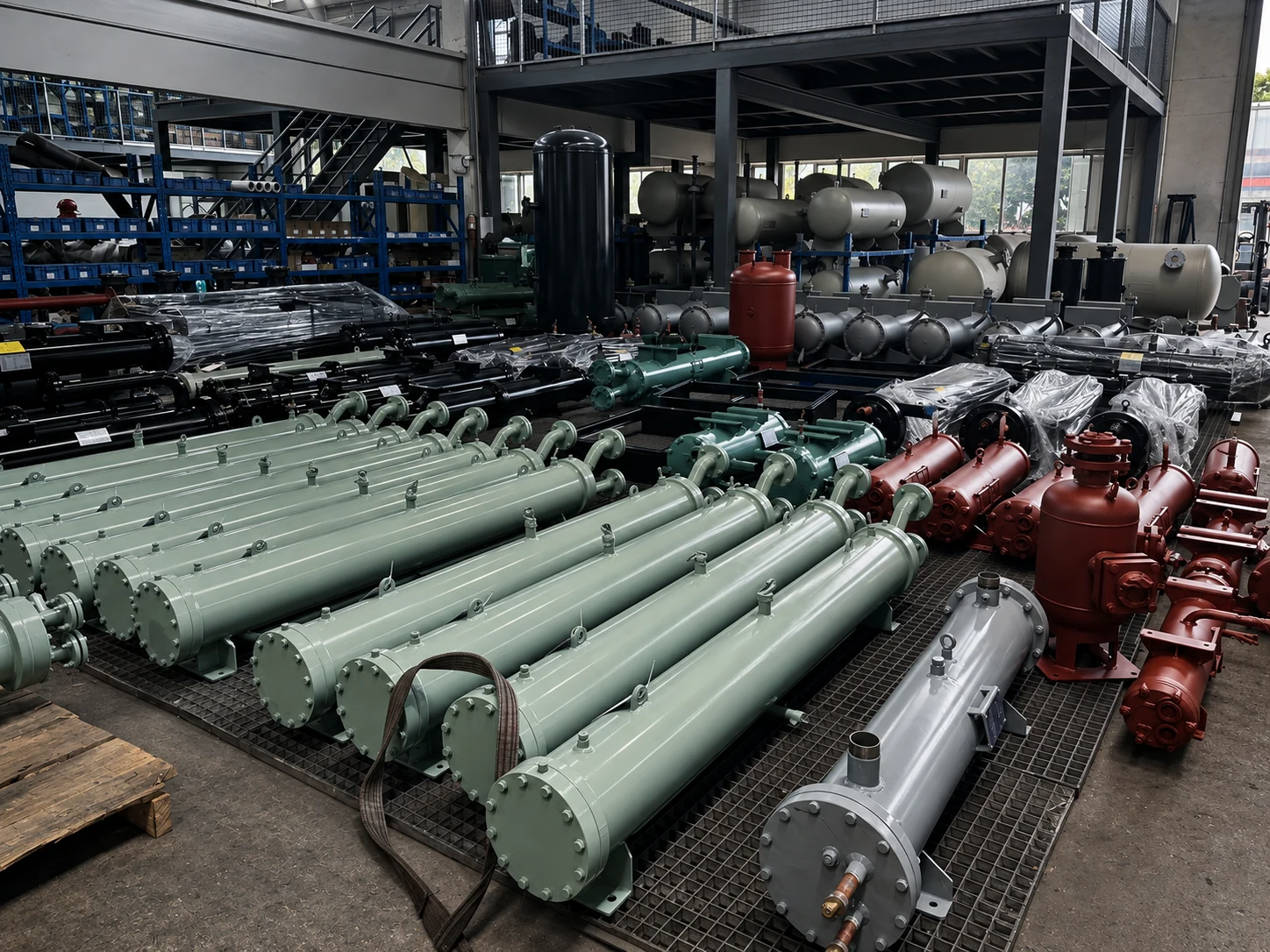

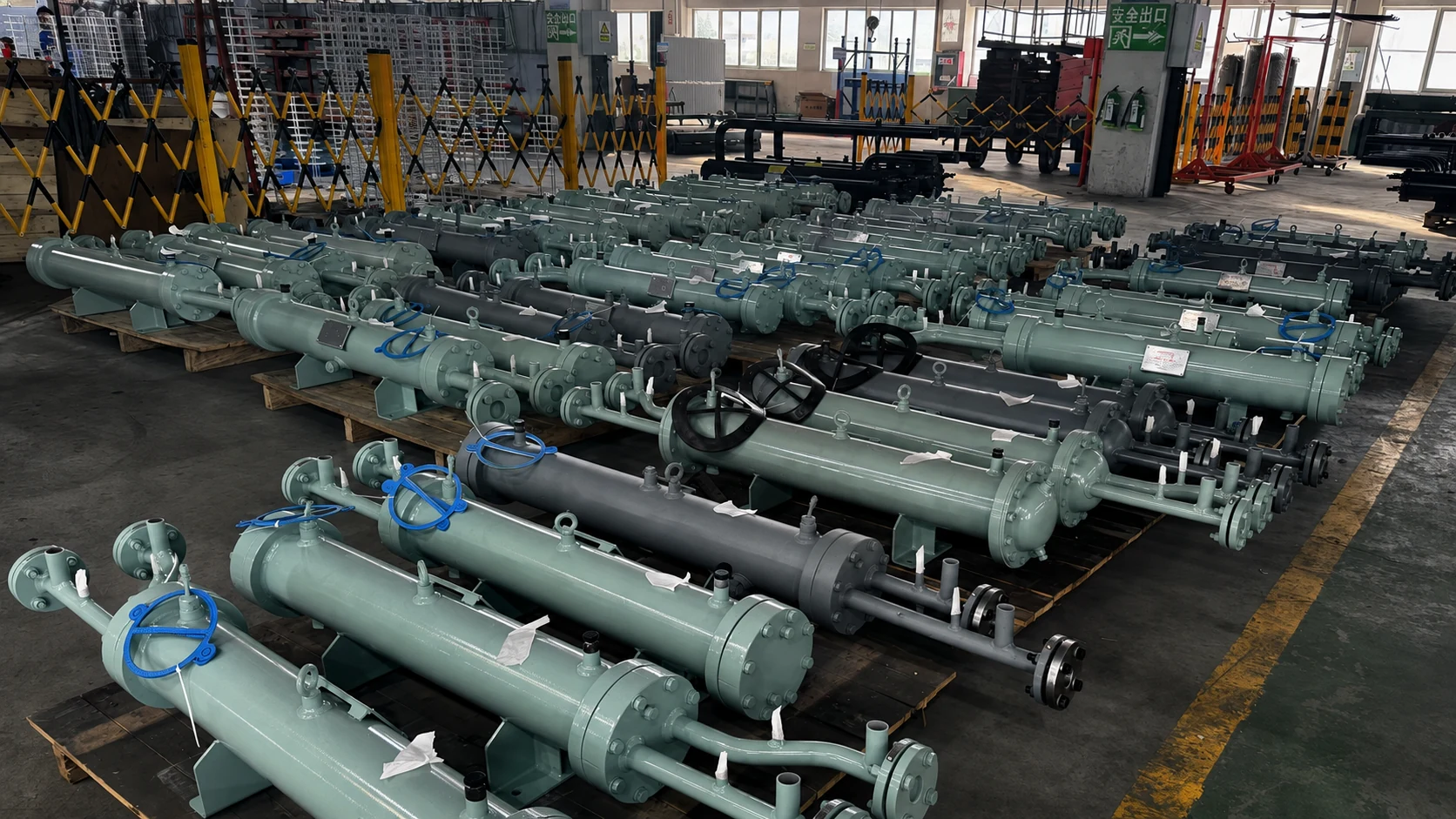

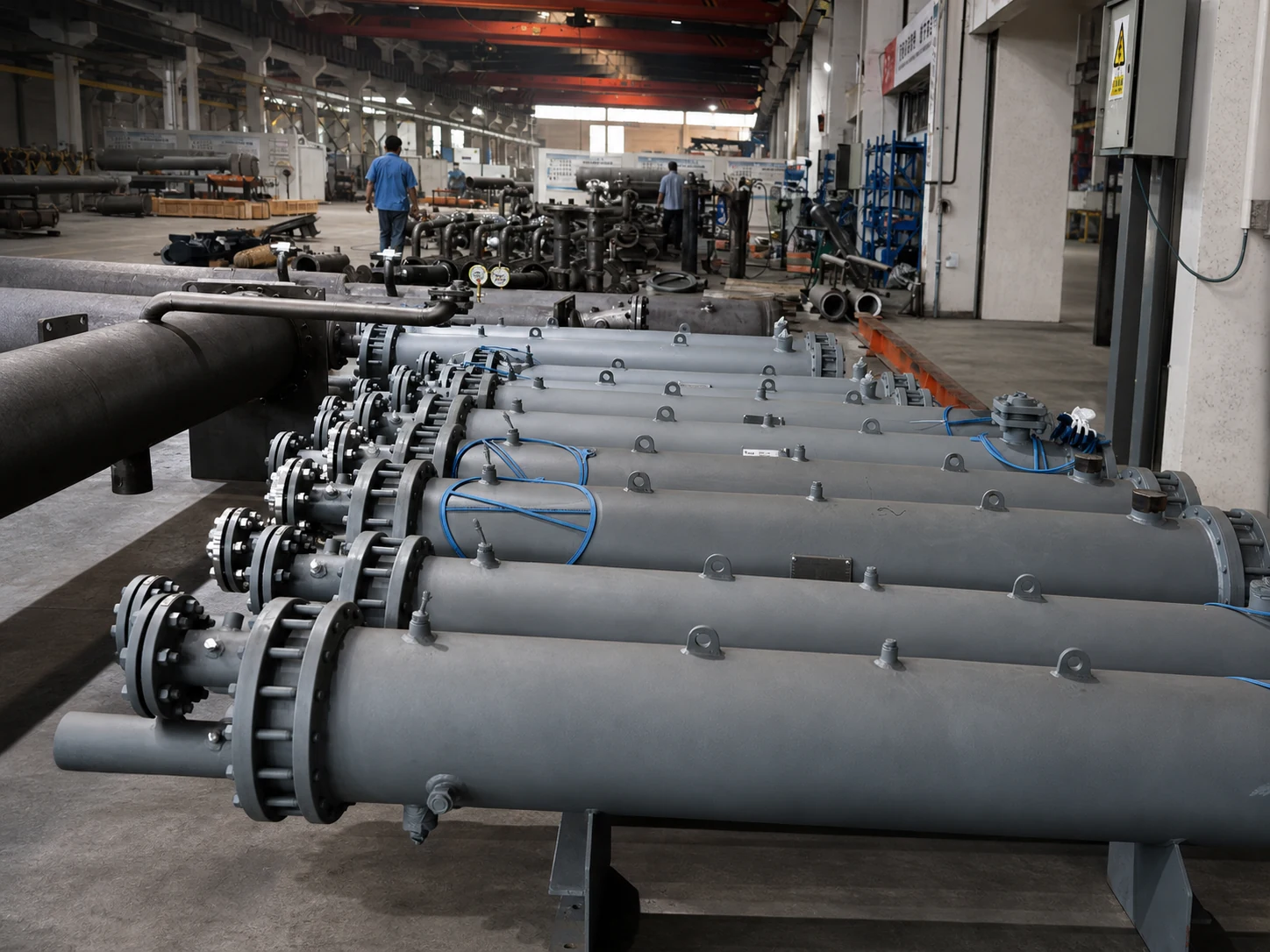

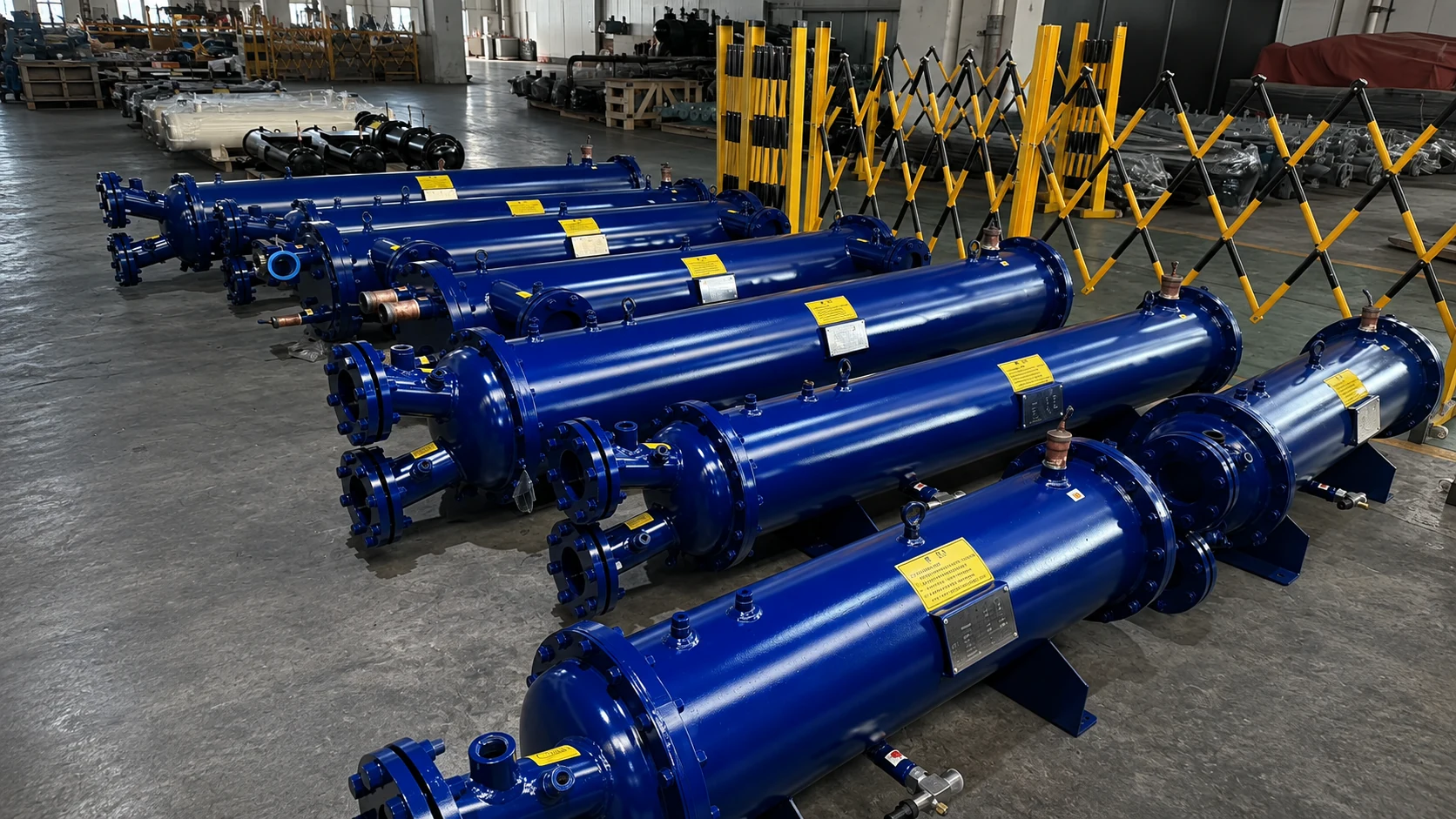

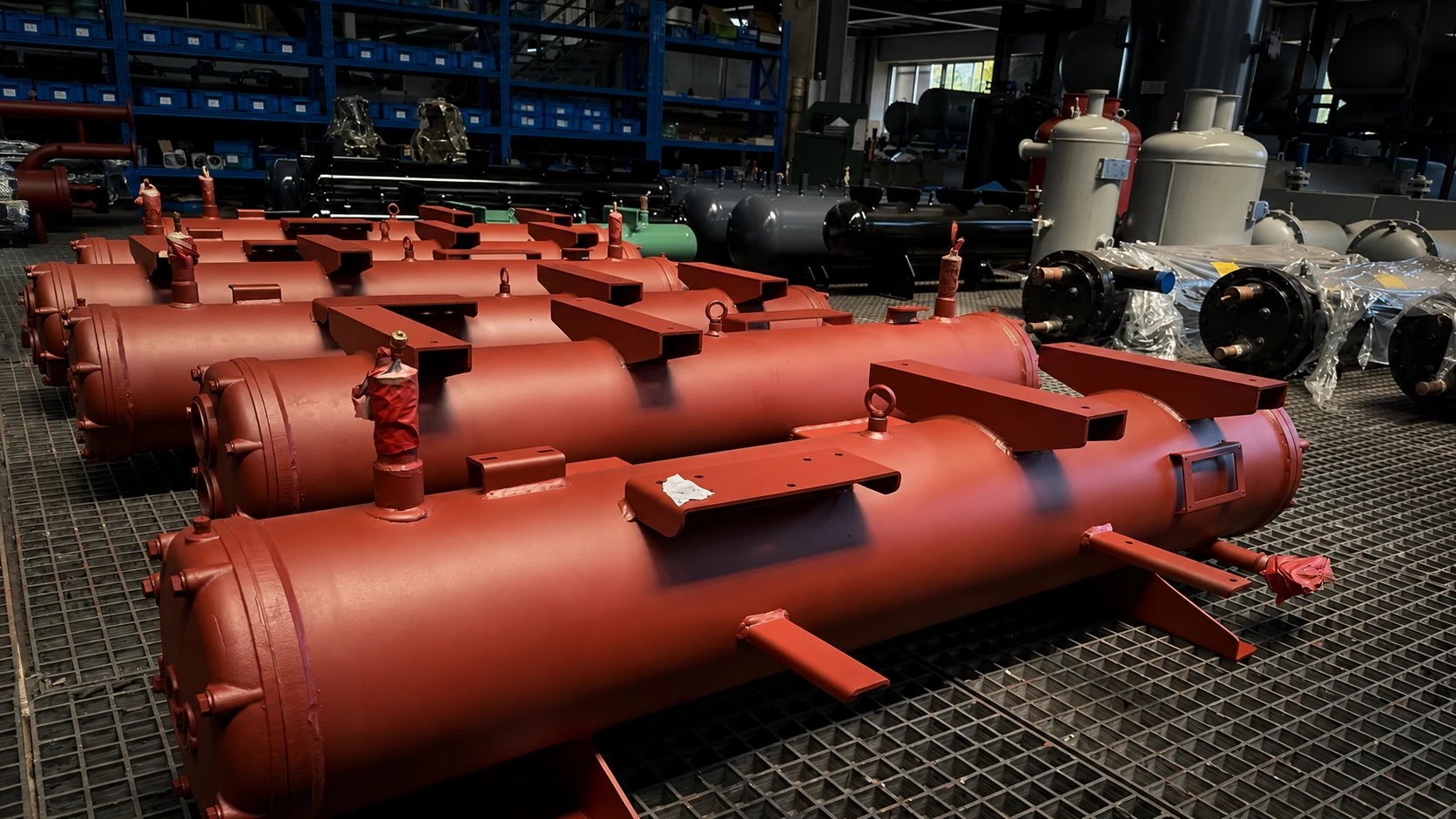

See what is happening inside the exchanger. Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.

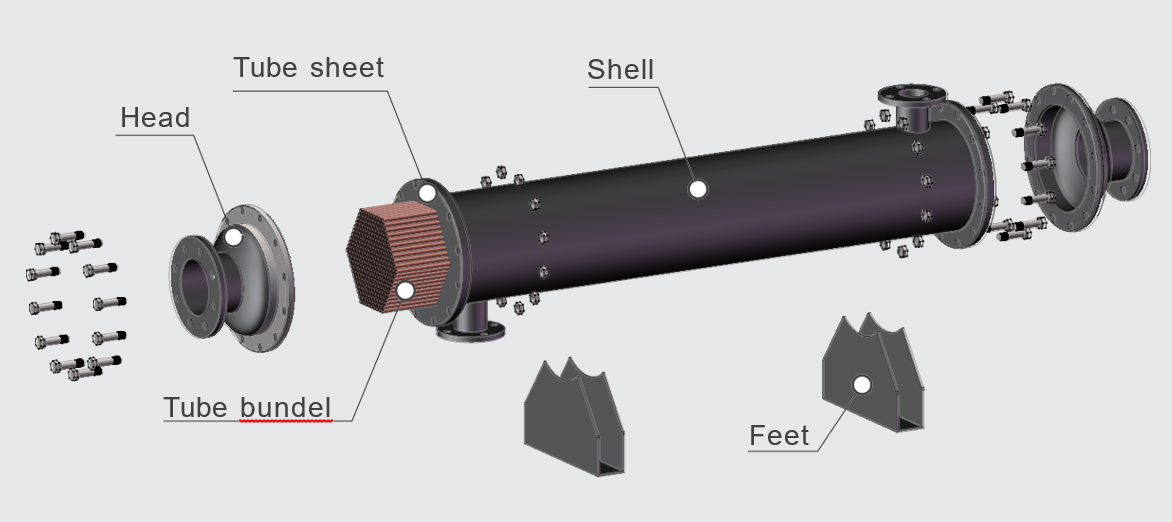

01 Serviceable shell-and-tube construction The source exploded view identifies the head, tubesheet, tube bundle, pressure shell and support feet used in the industrial configuration.
Models & technical data
Compare models and published specifications. Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Dimension units mm in
Model Width (mm) Height (mm) Cooling capacity (kW) Cooling capacity (RT) Overall length L (mm) Water connection Details JDC12A 170 mm 227 mm 12 3.41 931 3/4 in Open details JDC15A 170 mm 227 mm 15 4.27 931 3/4 in Open details JDC20A 210 mm 259 mm 20 5.69 941 3/4 in Open details JDC25A 210 mm 259 mm 25 7.11 1,094 3/4 in Open details JDC30A 290 mm 319 mm 30 8.53 1,124 1 in Open details JDC40A 290 mm 319 mm 40 11.4 1,378 1 in Open details JDC50A 290 mm 319 mm 50 14.2 1,378 1 1/2 in Open details JDC60A 290 mm 319 mm 60 17.1 1,632 1 1/2 in Open details JDC80A 290 mm 319 mm 80 22.8 1,632 1 1/2 in Open details JDC100A 290 mm 319 mm 100 28.4 1,632 2 in Open details JDC120A 290 mm 319 mm 120 34.1 1,886 2 in Open details JDC150A 290 mm 319 mm 150 42.7 1,886 2 1/2 in Open details JDC200A 330 mm 345 mm 200 56.9 2,131 2 1/2 in Open details JDC250A 350 mm 373 mm 250 71.1 2,131 3 in Open details JDC300A 350 mm 373 mm 300 85.3 2,131 3 in Open details JDC400A 420 mm 420 mm 400 114 2,688 DN100 Open details JDC500A 420 mm 420 mm 500 142 2,688 DN125 Open details JDC600A 420 mm 490 mm 600 171 2,996 DN125 Open details JDC800A 490 mm 520 mm 800 228 3,039 DN150 Open details JDC1000A 520 mm 550 mm 1,000 284 3,286 DN150 Open details JDC1250A 550 mm 420 mm 1,250 356 3,481 DN200 Open details JDC25B 170 mm 227 mm 25 7.11 1,342 Rp 1 Open details JDC30B 210 mm 259 mm 30 8.53 1,352 Rp 1 Open details JDC40B 210 mm 259 mm 40 11.4 1,808 Rp 1 Open details JDC50B 210 mm 259 mm 50 14.2 1,808 Rp 1 1/2 Open details JDC60B 210 mm 259 mm 60 17.1 1,808 Rp 1 1/2 Open details JDC80B 290 mm 319 mm 80 22.8 1,838 Rp 1 1/2 Open details JDC100B 290 mm 319 mm 100 28.4 2,144 Rp 2 Open details JDC120B 290 mm 319 mm 120 34.1 2,144 Rp 2 Open details JDC150B 290 mm 319 mm 150 42.7 2,144 Rp 2 1/2 Open details JDC200B 330 mm 345 mm 200 56.9 2,135 Rp 2 1/2 Open details JDC250B 350 mm 373 mm 250 71.1 2,135 Rp 3 Open details JDC300B 330 mm 345 mm 300 85.3 3,151 Rp 3 Open details JDC400B 350 mm 373 mm 400 114 3,151 DN100 Open details JDC500B 420 mm 445 mm 500 142 3,052 DN125 Open details JDC600B 420 mm 445 mm 600 171 3,052 DN125 Open details JDC800B 460 mm 476 mm 800 228 3,052 DN150 Open details JDC1000B 490 mm 497 mm 1,000 284 3,560 DN150 Open details JDC1250B 520 mm 526 mm 1,250 356 3,560 DN200 Open details JDC36C 210 mm 259 mm 36 10.2 1,388 Rp 1 Open details JDC45C 210 mm 259 mm 45 12.8 1,388 Rp 1 Open details JDC60C 290 mm 319 mm 60 17.1 1,418 Rp 1 1/2 Open details JDC75C 290 mm 319 mm 75 21.3 1,418 Rp 1 1/2 Open details JDC90C 290 mm 319 mm 90 25.6 2,021 Rp 1 1/2 Open details JDC120C 290 mm 319 mm 120 34.1 2,021 Rp 2 Open details JDC150C 290 mm 319 mm 150 42.7 2,021 Rp 2 Open details JDC180C 330 mm 345 mm 180 51.2 2,012 Rp 2 1/2 Open details JDC240C 330 mm 345 mm 240 68.3 2,696 Rp 2 1/2 Open details JDC300C 350 mm 373 mm 300 85.3 2,696 Rp 3 Open details JDC360C 350 mm 373 mm 360 102 2,696 DN100 Open details JDC450C 420 mm 445 mm 450 128 2,597 DN100 Open details JDC600C 420 mm 445 mm 600 171 3,056 DN125 Open details JDC750C 460 mm 476 mm 750 213 3,056 DN150 Open details JDC900C 420 mm 445 mm 900 256 3,818 DN150 Open details JDC1200C 490 mm 497 mm 1,200 341 3,818 DN200 Open details
Published HEXNOVAS JDC single-circuit condenser catalogue values. These ratings use 40°C condensing temperature, 30°C inlet water and 35°C outlet water. Final selection, refrigerant nozzles, water connections, materials, pressure design and mechanical code must be confirmed for the actual duty.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Model details
JDC12A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 170 mm
Height (mm) 227 mm
Cooling capacity (kW) 12
Cooling capacity (RT) 3.41
Overall length L (mm) 931
Water connection 3/4 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC15A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 170 mm
Height (mm) 227 mm
Cooling capacity (kW) 15
Cooling capacity (RT) 4.27
Overall length L (mm) 931
Water connection 3/4 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC20A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 20
Cooling capacity (RT) 5.69
Overall length L (mm) 941
Water connection 3/4 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC25A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 25
Cooling capacity (RT) 7.11
Overall length L (mm) 1,094
Water connection 3/4 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC30A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 30
Cooling capacity (RT) 8.53
Overall length L (mm) 1,124
Water connection 1 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC40A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 40
Cooling capacity (RT) 11.4
Overall length L (mm) 1,378
Water connection 1 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC50A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 50
Cooling capacity (RT) 14.2
Overall length L (mm) 1,378
Water connection 1 1/2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC60A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 60
Cooling capacity (RT) 17.1
Overall length L (mm) 1,632
Water connection 1 1/2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC80A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 80
Cooling capacity (RT) 22.8
Overall length L (mm) 1,632
Water connection 1 1/2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC100A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 100
Cooling capacity (RT) 28.4
Overall length L (mm) 1,632
Water connection 2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC120A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 120
Cooling capacity (RT) 34.1
Overall length L (mm) 1,886
Water connection 2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC150A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 150
Cooling capacity (RT) 42.7
Overall length L (mm) 1,886
Water connection 2 1/2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC200A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 330 mm
Height (mm) 345 mm
Cooling capacity (kW) 200
Cooling capacity (RT) 56.9
Overall length L (mm) 2,131
Water connection 2 1/2 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC250A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 250
Cooling capacity (RT) 71.1
Overall length L (mm) 2,131
Water connection 3 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC300A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 300
Cooling capacity (RT) 85.3
Overall length L (mm) 2,131
Water connection 3 in
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC400A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 420 mm
Cooling capacity (kW) 400
Cooling capacity (RT) 114
Overall length L (mm) 2,688
Water connection DN100
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC500A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 420 mm
Cooling capacity (kW) 500
Cooling capacity (RT) 142
Overall length L (mm) 2,688
Water connection DN125
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC600A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 490 mm
Cooling capacity (kW) 600
Cooling capacity (RT) 171
Overall length L (mm) 2,996
Water connection DN125
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC800A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 490 mm
Height (mm) 520 mm
Cooling capacity (kW) 800
Cooling capacity (RT) 228
Overall length L (mm) 3,039
Water connection DN150
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC1000A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 520 mm
Height (mm) 550 mm
Cooling capacity (kW) 1,000
Cooling capacity (RT) 284
Overall length L (mm) 3,286
Water connection DN150
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC1250A HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 550 mm
Height (mm) 420 mm
Cooling capacity (kW) 1,250
Cooling capacity (RT) 356
Overall length L (mm) 3,481
Water connection DN200
Circuit Single-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC25B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 170 mm
Height (mm) 227 mm
Cooling capacity (kW) 25
Cooling capacity (RT) 7.11
Overall length L (mm) 1,342
Water connection Rp 1
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC30B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 30
Cooling capacity (RT) 8.53
Overall length L (mm) 1,352
Water connection Rp 1
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC40B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 40
Cooling capacity (RT) 11.4
Overall length L (mm) 1,808
Water connection Rp 1
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC50B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 50
Cooling capacity (RT) 14.2
Overall length L (mm) 1,808
Water connection Rp 1 1/2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC60B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 60
Cooling capacity (RT) 17.1
Overall length L (mm) 1,808
Water connection Rp 1 1/2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC80B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 80
Cooling capacity (RT) 22.8
Overall length L (mm) 1,838
Water connection Rp 1 1/2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC100B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 100
Cooling capacity (RT) 28.4
Overall length L (mm) 2,144
Water connection Rp 2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC120B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 120
Cooling capacity (RT) 34.1
Overall length L (mm) 2,144
Water connection Rp 2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC150B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 150
Cooling capacity (RT) 42.7
Overall length L (mm) 2,144
Water connection Rp 2 1/2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC200B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 330 mm
Height (mm) 345 mm
Cooling capacity (kW) 200
Cooling capacity (RT) 56.9
Overall length L (mm) 2,135
Water connection Rp 2 1/2
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC250B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 250
Cooling capacity (RT) 71.1
Overall length L (mm) 2,135
Water connection Rp 3
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC300B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 330 mm
Height (mm) 345 mm
Cooling capacity (kW) 300
Cooling capacity (RT) 85.3
Overall length L (mm) 3,151
Water connection Rp 3
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC400B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 400
Cooling capacity (RT) 114
Overall length L (mm) 3,151
Water connection DN100
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC500B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 445 mm
Cooling capacity (kW) 500
Cooling capacity (RT) 142
Overall length L (mm) 3,052
Water connection DN125
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC600B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 445 mm
Cooling capacity (kW) 600
Cooling capacity (RT) 171
Overall length L (mm) 3,052
Water connection DN125
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC800B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 460 mm
Height (mm) 476 mm
Cooling capacity (kW) 800
Cooling capacity (RT) 228
Overall length L (mm) 3,052
Water connection DN150
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC1000B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 490 mm
Height (mm) 497 mm
Cooling capacity (kW) 1,000
Cooling capacity (RT) 284
Overall length L (mm) 3,560
Water connection DN150
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC1250B HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 520 mm
Height (mm) 526 mm
Cooling capacity (kW) 1,250
Cooling capacity (RT) 356
Overall length L (mm) 3,560
Water connection DN200
Circuit Twin-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC36C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 36
Cooling capacity (RT) 10.2
Overall length L (mm) 1,388
Water connection Rp 1
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC45C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 210 mm
Height (mm) 259 mm
Cooling capacity (kW) 45
Cooling capacity (RT) 12.8
Overall length L (mm) 1,388
Water connection Rp 1
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC60C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 60
Cooling capacity (RT) 17.1
Overall length L (mm) 1,418
Water connection Rp 1 1/2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC75C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 75
Cooling capacity (RT) 21.3
Overall length L (mm) 1,418
Water connection Rp 1 1/2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC90C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 90
Cooling capacity (RT) 25.6
Overall length L (mm) 2,021
Water connection Rp 1 1/2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC120C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 120
Cooling capacity (RT) 34.1
Overall length L (mm) 2,021
Water connection Rp 2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC150C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 290 mm
Height (mm) 319 mm
Cooling capacity (kW) 150
Cooling capacity (RT) 42.7
Overall length L (mm) 2,021
Water connection Rp 2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC180C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 330 mm
Height (mm) 345 mm
Cooling capacity (kW) 180
Cooling capacity (RT) 51.2
Overall length L (mm) 2,012
Water connection Rp 2 1/2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC240C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 330 mm
Height (mm) 345 mm
Cooling capacity (kW) 240
Cooling capacity (RT) 68.3
Overall length L (mm) 2,696
Water connection Rp 2 1/2
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC300C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 300
Cooling capacity (RT) 85.3
Overall length L (mm) 2,696
Water connection Rp 3
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC360C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 350 mm
Height (mm) 373 mm
Cooling capacity (kW) 360
Cooling capacity (RT) 102
Overall length L (mm) 2,696
Water connection DN100
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC450C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 445 mm
Cooling capacity (kW) 450
Cooling capacity (RT) 128
Overall length L (mm) 2,597
Water connection DN100
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC600C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 445 mm
Cooling capacity (kW) 600
Cooling capacity (RT) 171
Overall length L (mm) 3,056
Water connection DN125
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC750C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 460 mm
Height (mm) 476 mm
Cooling capacity (kW) 750
Cooling capacity (RT) 213
Overall length L (mm) 3,056
Water connection DN150
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC900C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 420 mm
Height (mm) 445 mm
Cooling capacity (kW) 900
Cooling capacity (RT) 256
Overall length L (mm) 3,818
Water connection DN150
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details
JDC1200C HEXNOVAS Shell & Tube Heat Exchangers
Product configuration Dimension drawing
Width (mm) 490 mm
Height (mm) 497 mm
Cooling capacity (kW) 1,200
Cooling capacity (RT) 341
Overall length L (mm) 3,818
Water connection DN200
Circuit Three-circuit condenser
Construction Shell-and-tube water-cooled condenser
Published rating condition 40°C condensing; water 30°C inlet / 35°C outlet
Shell materials Stainless steel, carbon steel or PP, duty-dependent
Tube materials Copper, SS316L, SS304, titanium, CuNi or C276, duty-dependent
Tube-bundle options Finned tubes, conventional baffles or spiral baffles Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Why this technology
Designed around performance, integrity and serviceability. Product configuration
Structure and material options. Available configurations Fixed tubesheet, U-tube and removable-bundle concepts Single- and multi-pass tube-side arrangements Horizontal or vertical installation Straight, enhanced or corrugated tube options Material options Carbon steel and stainless steel shells Stainless, duplex, titanium and alloy tubes Project-specific tubesheet and gasket materials Typical applications
Where this exchanger fits. 01 Oil and gas processing 02 Steam and high-temperature duties 03 Viscous or particulate products 04 Marine and industrial utilities Selection information
What our engineers need from you. Provide shell-side and tube-side data, fouling factors, velocity limits, vibration concerns, cleaning access and applicable mechanical standard.
Frequently asked questions
Key questions before product selection. How does Shell & Tube Heat Exchangers work? One fluid flows through a tube bundle while the second flows through the surrounding shell. Baffles guide shell-side flow across the tubes and support the bundle, allowing the geometry to be adapted to the process.
What information is required to select the right product? Provide shell-side and tube-side data, fouling factors, velocity limits, vibration concerns, cleaning access and applicable mechanical standard.
Which materials and configurations are available? Carbon steel and stainless steel shells; Stainless, duplex, titanium and alloy tubes; Project-specific tubesheet and gasket materials
How is the final product size confirmed? The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads. Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
