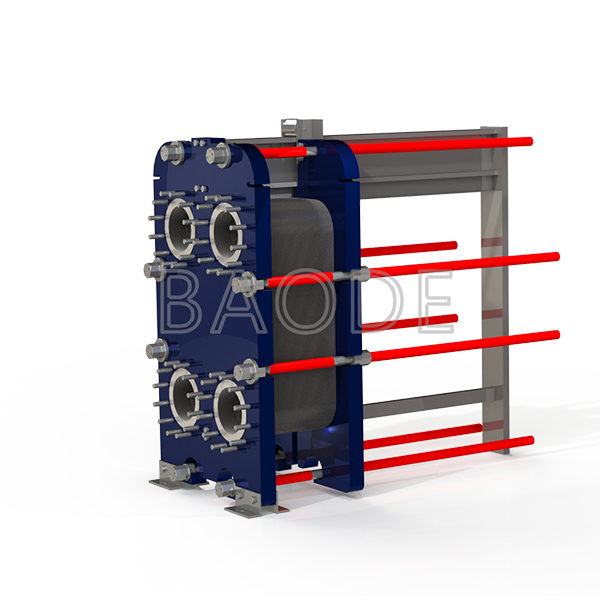

| Model Details | Model | SB200 | ||
| Flow Patten | Parallel | Channel Angel | D 120° / X 60° | |
| Channel Depth | 4 mm | Approval | UL, CE, BV, DNV, GL, | |
| Max Flowrate Kg/s | 190 |   | ISO9001, ISO14001 | |
| Plate Material | SS / TI / SMO / Hastelloy | Frame Mateial | Carbon steel with pait | |
| Plate Thickness mm | 0.5/ 0.6 / 0.7 | Max Pressure (bar) | 10/16 | |
| Gasket Material | NBR/ EPDM / VITON | Max Temp (℃) | 110/140/180 (depends on gasket material) | |
| Connction Type | Flange, Thread, Clamp, Studs | Min Temp (℃) | 0 | |

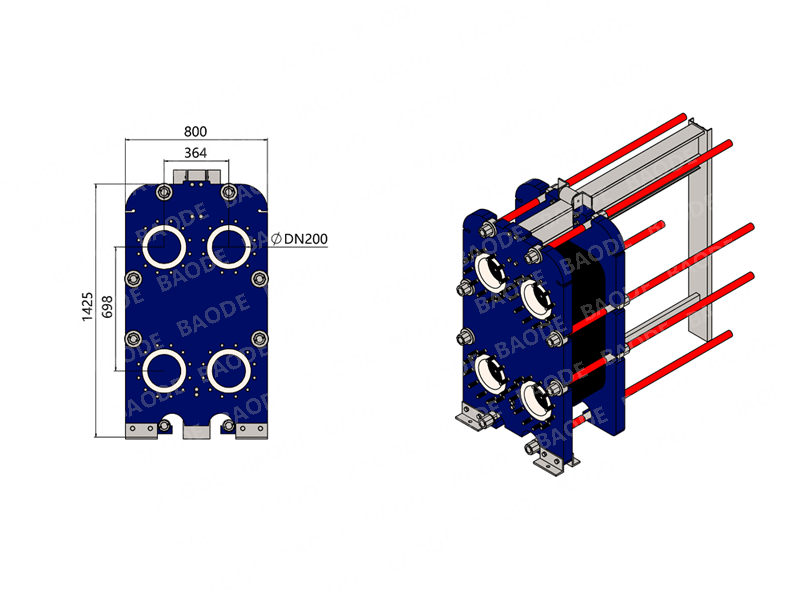

| Connction Size | DN200 | Packing | Polywood box | |
 | ||||
