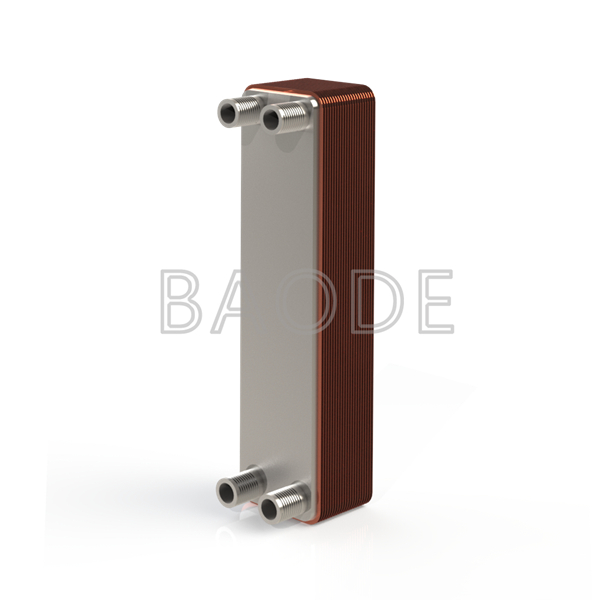

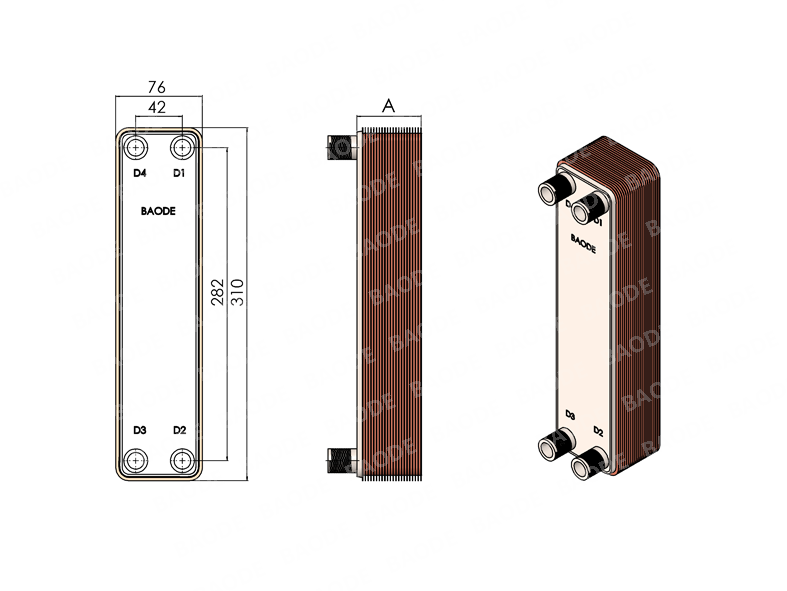

| Model Details | Model | BL20 | ||
| Flow Pattern | parallel |  | ||
| Weight (kgs) | 1.0+0.08N | Approval | UL, CE, BV, DNV, GL, ISO9001, ISO14001 | |
| Max Flow (m3/h) | 3.6 | Max Pressure (bar) | 30 / 45 | |
| Plate Material | SS 304 / SS 316L | Max Temperature ℃ | 200 | |
| Conneciton Material | SS 304 | Min Temperature ℃ | -190 | |
| Brazing Material | Copper / Nickle | Packing | Individual box / Polywood box | |

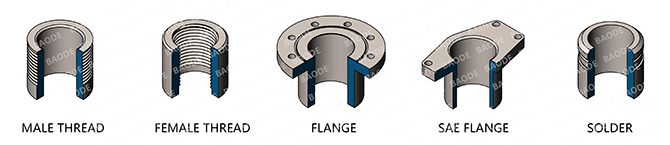

| Connection Type | Thread, Solder, Flange | Mount Bracket（Optional） | Studs, Brazcket, Feet | |
| Max Connection Size | 3/4" | |||
| Freon | R22, R401, R407, R515A | |||
 | ||||
