Published match found
Recommended configurationAL14-(14+8)
5 HP compressor · 0.58 Nm³/min · 35 Nm³/h
- Platform
- AL14
- Air connection
- 3/4 in
- Inlet / dew point
- 35°C / 3°C
- Pressure
- 7 barg

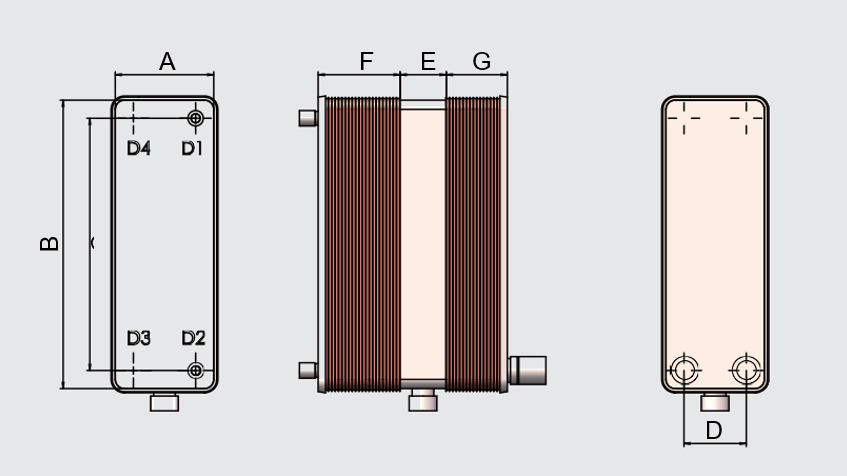

A76 mmB206 mmC42 mmD172 mmE44 mmF14 platesG8 plates
AIR DRYER technology

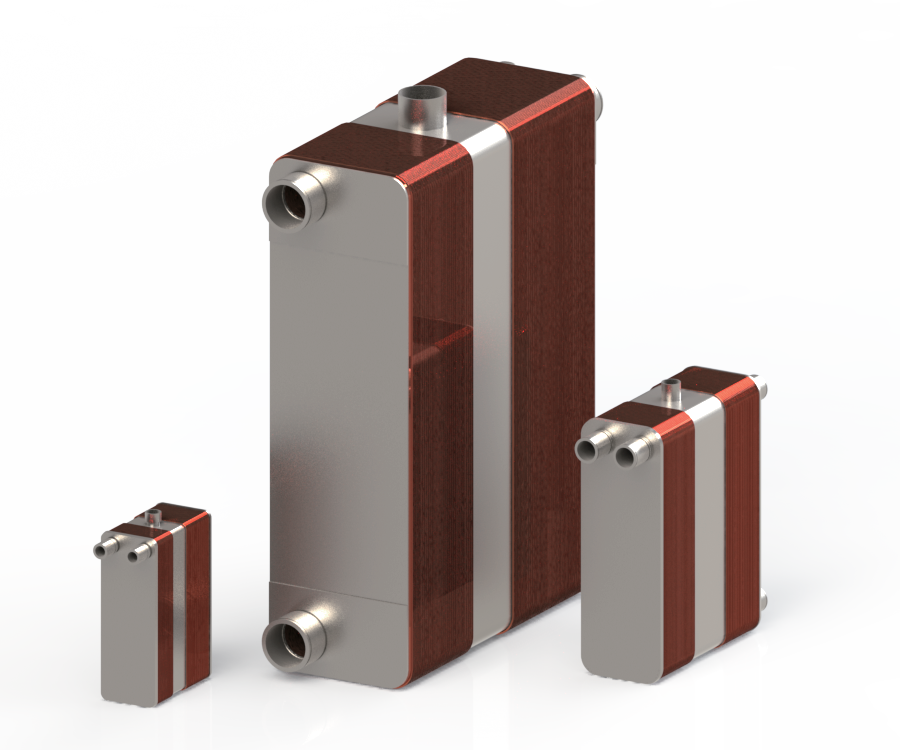

BPHE Air Dryer Heat Exchangers
Integrated compact heat exchangers for refrigerated compressed-air dryers, moisture removal and efficient air reheating.
Working principle
How the technology transfers heat.

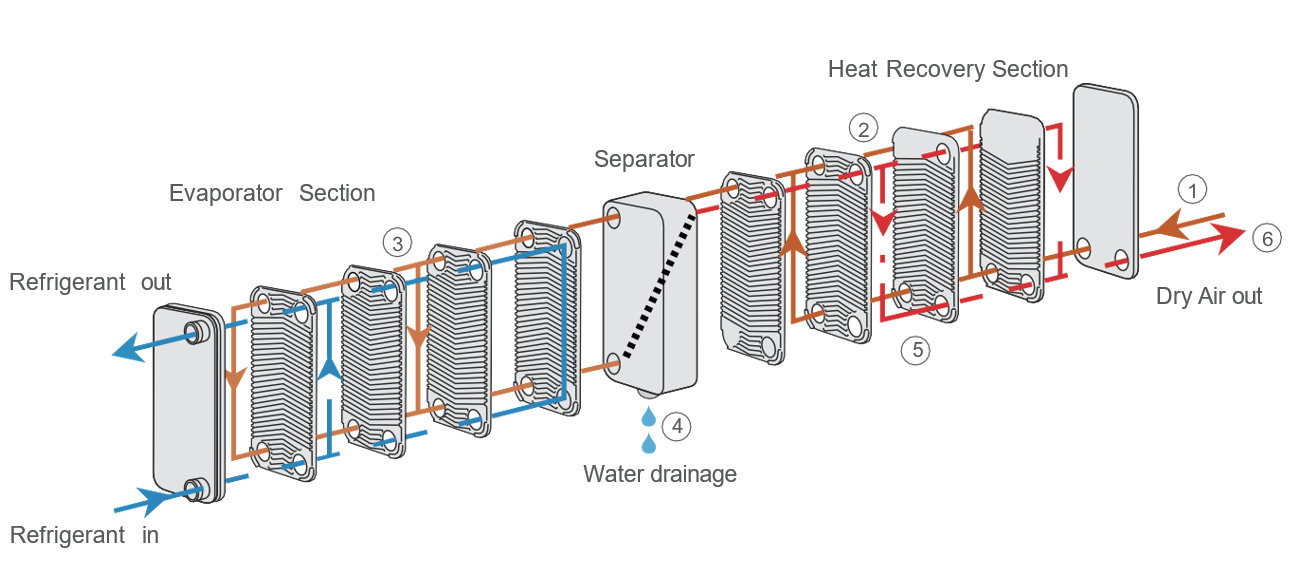

Warm compressed air is first precooled by outgoing dry air, then cooled by the refrigeration circuit below its dew point. Condensed moisture is separated before the cold dry air returns through the recovery section for reheating.
- Process stages
- Precooling / refrigeration cooling / reheating
- Typical dew-point control
- Approximately 2–5°C refrigeration section
- Primary purpose
- Condense and remove compressed-air moisture
- Design focus
- Low pressure drop and compact integration
Engineering explained
See what is happening inside the exchanger.
Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.
Cooling, moisture removal and energy recovery
The integrated process cools compressed air below its dew point, separates condensate and recovers cold energy to reheat the outgoing dry air.
Air dryer selection tool
Select the duty. Get the exact AL configuration.
Choose the published operating point from the supplied selection data. The result updates immediately with the recommended model, capacity and dimensional reference.
Preliminary selection from the supplied HEXNOVAS table. Confirm actual inlet pressure, refrigerant, ambient condition, allowable pressure drop and final order drawing with HEXNOVAS engineering.
Models & technical data
Compare models and published specifications.
Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Dimension units
| Model platform | Circuit | Width (mm) | Height (mm) | Air flow (Nm³/min) | Air flow (Nm³/h) | Compressor range (HP) | Thickness E (mm) | Details |
|---|---|---|---|---|---|---|---|---|
| AL14 | Dual section | 76 mm | 206 mm | 0.58–1.67 | 35–100 | 5–15 | 44 | Open details |
| AL26 | Dual section | 111 mm | 310 mm | 2.4–7.0 | 144–420 | 20–50 | 50–100 | Open details |
| AL95 | Dual section | 191 mm | 616 mm | 11–28 | 660–1,680 | 75–200 | 85–276 | Open details |
Published HEXNOVAS selection range at 35°C air inlet, 7 barg and 3°C dew point. AL14, AL26 and AL95 are product platforms; the bracketed numbers in a selected model designation identify its heat-recovery and evaporator plate configuration. Final selection depends on inlet temperature, flow, pressure, refrigerant and target dew point.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Model details
AL14
HEXNOVAS BPHE Air Dryer Heat Exchangers
- Circuit
- Dual section
- Width (mm)
- 76 mm
- Height (mm)
- 206 mm
- Air flow (Nm³/min)
- 0.58–1.67
- Air flow (Nm³/h)
- 35–100
- Compressor range (HP)
- 5–15
- Thickness E (mm)
- 44
- Air connection
- 3/4 in
- Operating condition
- 7 barg / 35°C inlet
- Plate material
- Stainless steel
- Brazing material
- Copper
- Maximum air-side pressure
- 16 barg at 20°C
- Maximum refrigerant-side pressure
- 35 barg at 20°C
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selectionModel details
AL26
HEXNOVAS BPHE Air Dryer Heat Exchangers
- Circuit
- Dual section
- Width (mm)
- 111 mm
- Height (mm)
- 310 mm
- Air flow (Nm³/min)
- 2.4–7.0
- Air flow (Nm³/h)
- 144–420
- Compressor range (HP)
- 20–50
- Thickness E (mm)
- 50–100
- Air connection
- 1 in
- Operating condition
- 7 barg / 35°C inlet
- Plate material
- Stainless steel
- Brazing material
- Copper
- Maximum air-side pressure
- 16 barg at 20°C
- Maximum refrigerant-side pressure
- 35 barg at 20°C
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selectionModel details
AL95
HEXNOVAS BPHE Air Dryer Heat Exchangers
- Circuit
- Dual section
- Width (mm)
- 191 mm
- Height (mm)
- 616 mm
- Air flow (Nm³/min)
- 11–28
- Air flow (Nm³/h)
- 660–1,680
- Compressor range (HP)
- 75–200
- Thickness E (mm)
- 85–276
- Air connection
- 2 in
- Operating condition
- 7 barg / 35°C inlet
- Plate material
- Stainless steel
- Brazing material
- Copper
- Maximum air-side pressure
- 16 barg at 20°C
- Maximum refrigerant-side pressure
- 35 barg at 20°C
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selectionConnection configuration
Compressed-air and refrigerant connections
Port size and interface are matched to compressed-air flow, refrigerant circuit, pressure drop and packaged dryer layout.
- Threaded air ports
- Solder refrigerant ports
- Flanged air connection
- Drain connection
- Custom packaged-system interface
Why this technology
Designed around performance, integrity and serviceability.
- Compact air-to-air and refrigerant cooling integration
- Supports moisture condensation below the pressure dew point
- Recovers cold energy to reheat dried compressed air
- Low pressure-drop configurations for packaged dryer systems
Product configuration
Structure and material options.
Available configurations
- Integrated air-to-air and air-to-refrigerant sections
- Packaged refrigerated dryer cores
- Multiple capacity sizes
- Project-specific compressed-air connections
Material options
- Stainless steel plate construction
- Brazed, gasket-free core
- Connection materials selected for compressed-air service
Typical applications
Where this exchanger fits.
Refrigerated compressed-air dryers
Industrial compressor packages
Moisture separation systems
Instrument and process air treatment
Selection information
What our engineers need from you.
Provide compressed-air flow, inlet pressure and temperature, target pressure dew point, refrigerant, ambient condition, allowable pressure drop and installation envelope.
Frequently asked questions
Key questions before product selection.
How does BPHE Air Dryer Heat Exchangers work?
Warm compressed air is first precooled by outgoing dry air, then cooled by the refrigeration circuit below its dew point. Condensed moisture is separated before the cold dry air returns through the recovery section for reheating.
What information is required to select the right product?
Provide compressed-air flow, inlet pressure and temperature, target pressure dew point, refrigerant, ambient condition, allowable pressure drop and installation envelope.
Which materials and configurations are available?
Stainless steel plate construction; Brazed, gasket-free core; Connection materials selected for compressed-air service
How is the final product size confirmed?
The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads.
Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
