Copper-brazed stainless plates are contained by reinforced external carbon-steel frames. The structure supports the thin corrugated plate pack under extreme refrigerant pressure while retaining compact heat-transfer channels.
Published model range

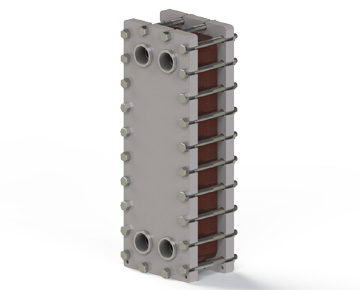

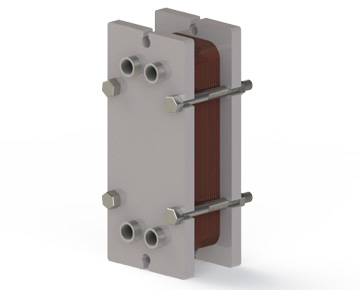

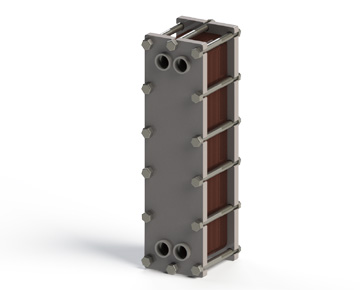

F-BL26 / F-BL50 / F-BL95
Maximum pressure
Up to 120 bar
Construction
Reinforced copper-brazed plate pack
Primary refrigerant duty
Transcritical CO₂
Engineering explained
See what is happening inside the exchanger.
Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.
01
Reinforced high-pressure construction

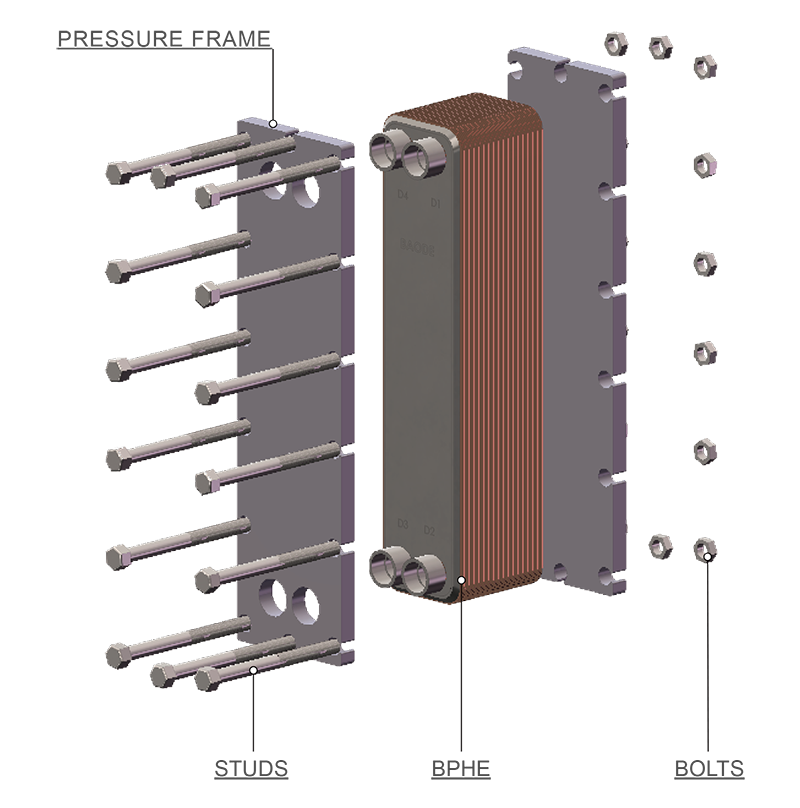

The brazed stainless plate pack is clamped between external carbon-steel pressure frames using distributed tie rods and fasteners to withstand extreme refrigerant pressure.
02
Compact brazed plate pack inside the frame
Inside the reinforcement structure, alternating corrugated channels retain the compact counter-current heat-transfer principle used by the BPHE family.
Models & technical data
Compare models and published specifications.

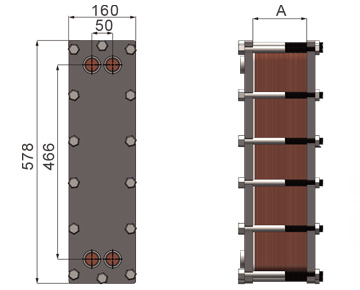

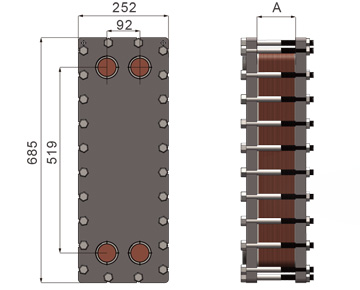

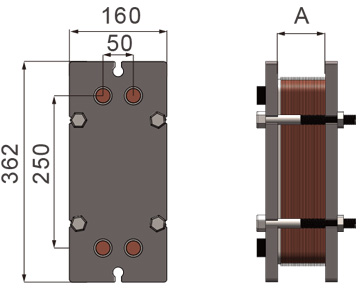

Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Published HEXNOVAS F-BL series limits. N = number of plates. Design pressure, refrigerant condition, external frame, fatigue duty and approvals must be confirmed for each project.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
F-BL connections are selected for the refrigerant, 120-bar pressure class and required piping interface; not every geometry is available on every model.
Male thread
Female thread
Refrigerant flange
Solder connection
Project-specific high-pressure port
Representative connection geometries. Final availability is confirmed during product selection.
Why this technology
Designed around performance, integrity and serviceability.
Maximum pressure up to 120 bar on the published F-BL range
Compact alternative for demanding CO₂ refrigeration circuits
External reinforcement frame for pressure integrity
Gasket-free construction with refrigerant distribution options
Product configuration
Structure and material options.
Available configurations
F-BL26, F-BL50 and F-BL95 series
Gas cooler, evaporator and condenser duties
Optional refrigerant distribution system
Connections and lifting features by model
Material options
Stainless steel plates and cover plates
99.99% copper brazing material
Painted carbon-steel external frame
Typical applications
Where this exchanger fits.
01
Transcritical CO₂ refrigeration
02
CO₂ gas cooling
03
High-pressure air conditioning
04
Industrial refrigeration and heat recovery
Selection information
What our engineers need from you.
Provide refrigerant, operating and design pressures, temperatures, phase condition, capacity, pressure drop, connection requirements and applicable approval standard.
Frequently asked questions
Key questions before product selection.
How does Ultra-High-Pressure Brazed Plate Heat Exchangers work?
Copper-brazed stainless plates are contained by reinforced external carbon-steel frames. The structure supports the thin corrugated plate pack under extreme refrigerant pressure while retaining compact heat-transfer channels.
What information is required to select the right product?
Provide refrigerant, operating and design pressures, temperatures, phase condition, capacity, pressure drop, connection requirements and applicable approval standard.
The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads.
Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
