Hygienic stainless-steel plate heat exchangers with sanitary unions and multi-section options for precise food, beverage, dairy and pharmaceutical processing.
Corrugated stainless plates form alternating product and service channels. Food-compatible gaskets direct the media without mixing, while sanitary unions and an openable frame support hygienic installation, inspection and CIP. Multi-section units can combine heating, regeneration and cooling.
Published platforms
BS60H / F-BS60H; BS100H / F-BS100H
Maximum working pressure
10 bar
Flow arrangement
Parallel
Cleaning
Openable plate pack and chemical CIP
Engineering explained
See what is happening inside the exchanger.
Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.
01

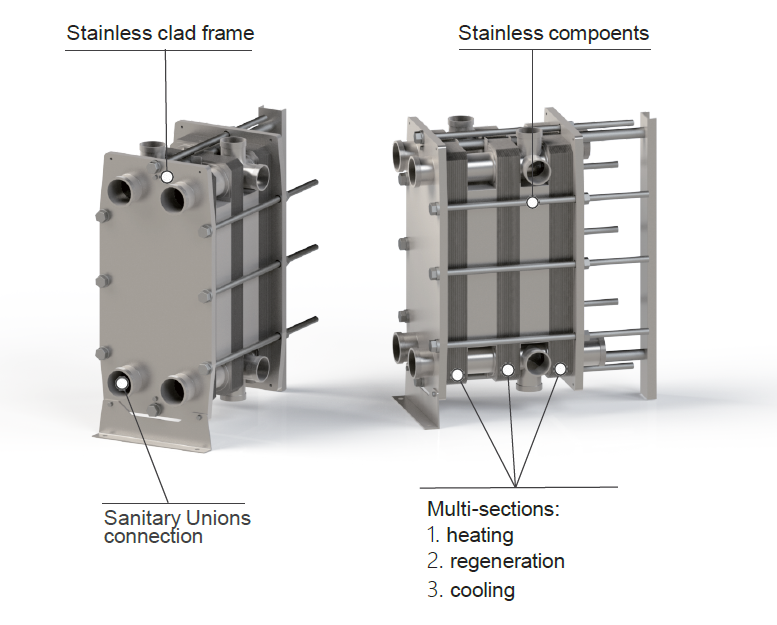

Hygienic frame and multi-section process design
Stainless-clad frames, stainless components and sanitary unions support hygienic duties, while multi-section layouts combine heating, regeneration and cooling in one plate pack.
02

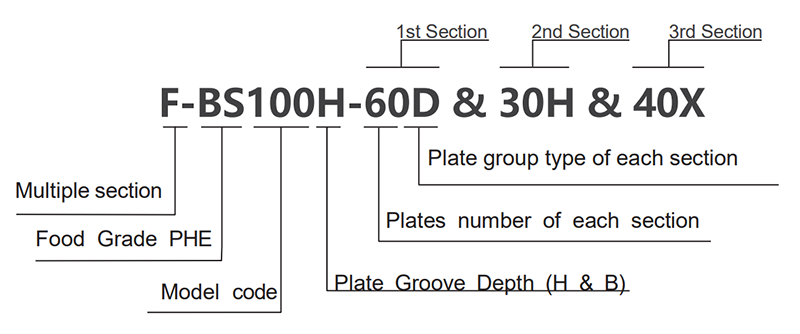

How to read the Sanitary GPHE model code
The food-grade model designation identifies the frame variant, plate platform, channel geometry, plate count and plate-pattern combination used for the sanitary duty.
Models & technical data
Compare models and published specifications.
Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Published HEXNOVAS sanitary GPHE platform data. Final plate count, frame version, gasket, connection standard and multi-section arrangement are confirmed from the product duty and hygiene requirements.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Model details

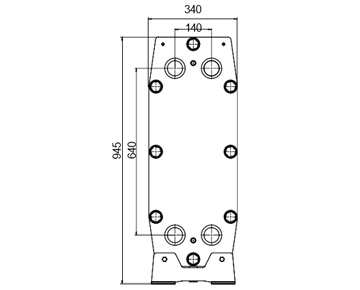

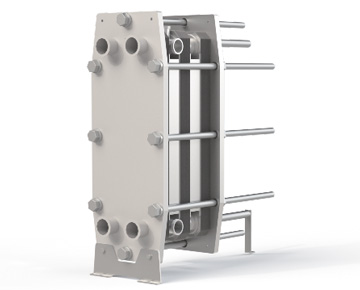

BS60H
HEXNOVAS Sanitary Gasketed Plate Heat Exchangers
Product configurationDimension drawing
Width (mm)
340 mm
Height (mm)
945 mm
Max. pressure (bar)
10
Max. flow (m³/h)
54
Free channel (mm)
3
Plate area (m²)
0.15
Port size
DN50
Frame variant
BS60H / F-BS60H
Plate material
SS304 / SS316L
Plate thickness
0.5 / 0.6 mm
Gasket material
NBR / EPDM / FKM
Gasket type
Clip-on
Flow
Parallel
Sanitary unions
TC Tri-Clamp / SMS / customized
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
The process connection is selected around plant hygiene standard, cleaning procedure and line size.

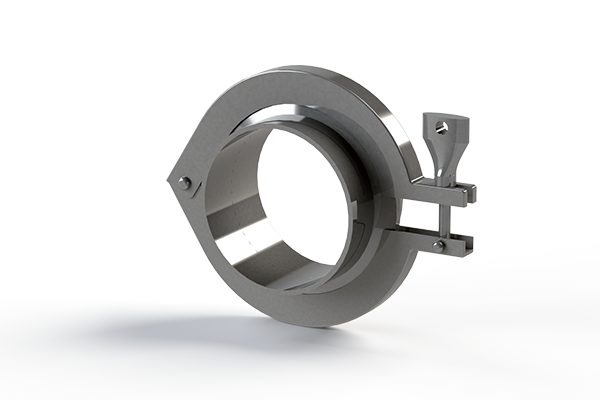

TC Tri-Clamp union

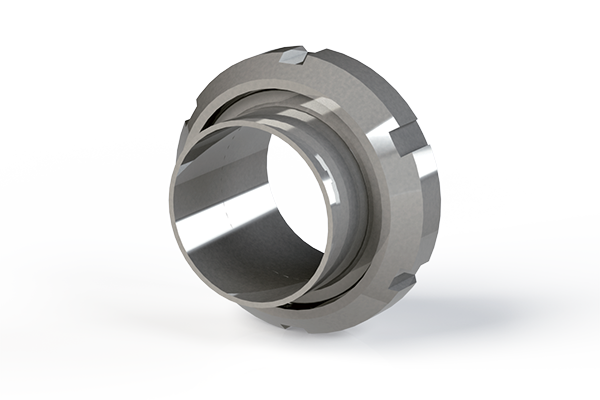

SMS sanitary union
DN50 on BS60H platform

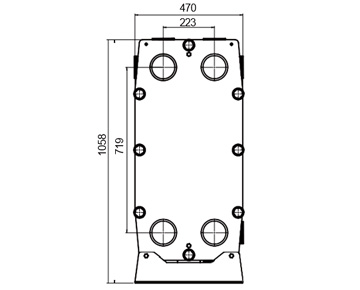

DN100 on BS100H platform
Customized sanitary connection
Representative connection geometries. Final availability is confirmed during product selection.
Why this technology
Designed around performance, integrity and serviceability.
Smooth stainless product-contact surfaces support hygienic processing
Openable plate pack allows inspection and validated cleaning
Multi-section heating, regeneration and cooling in one frame
Food-compatible clip-on gasket and sanitary union options
Product configuration
Structure and material options.
Available configurations
Single-section heater or cooler
Multi-section heating, regeneration and cooling

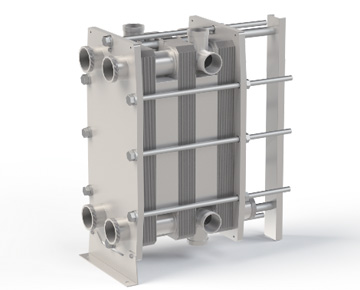

BS60H / F-BS60H and BS100H / F-BS100H platforms
TC Tri-Clamp, SMS and customized sanitary unions
Material options
SS304 or SS316L heat-transfer plates
NBR, EPDM or FKM clip-on gaskets
Stainless-clad frame and stainless connection components
Typical applications
Where this exchanger fits.
01
Milk pasteurization and dairy processing
02
Juice, beer and beverage temperature control
03
Sauces, soups and edible-oil processing
04
Pharmaceutical and hygienic utility systems
Selection information
What our engineers need from you.
Provide product and service fluids, flow rates, inlet and outlet temperatures, viscosity, solids content, required holding or regeneration duty, cleaning cycle, pressure drop, sanitary connection standard and applicable hygiene requirements.
Frequently asked questions
Key questions before product selection.
How does Sanitary Gasketed Plate Heat Exchangers work?
Corrugated stainless plates form alternating product and service channels. Food-compatible gaskets direct the media without mixing, while sanitary unions and an openable frame support hygienic installation, inspection and CIP. Multi-section units can combine heating, regeneration and cooling.
What information is required to select the right product?
Provide product and service fluids, flow rates, inlet and outlet temperatures, viscosity, solids content, required holding or regeneration duty, cleaning cycle, pressure drop, sanitary connection standard and applicable hygiene requirements.
Which materials and configurations are available?
SS304 or SS316L heat-transfer plates; NBR, EPDM or FKM clip-on gaskets; Stainless-clad frame and stainless connection components
How is the final product size confirmed?
The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads.
Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
