Corrugated stainless steel plates are permanently joined through a controlled fusion-bonding process. The bonded contact areas create sealed alternating channels without conventional copper brazing material.
Construction
Fusion-bonded all-stainless plate pack
Primary distinction
No copper brazing filler
Temperature capability
Up to 400°C on selected configurations
Cleaning
Compatible chemical circulation / CIP
Engineering explained
See what is happening inside the exchanger.
Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.
01
The same proven alternating-channel flow path
Fusion-bonded construction uses the same counter-current channel arrangement as a standard compact plate heat exchanger; hot and cold media remain separated by corrugated stainless plates.

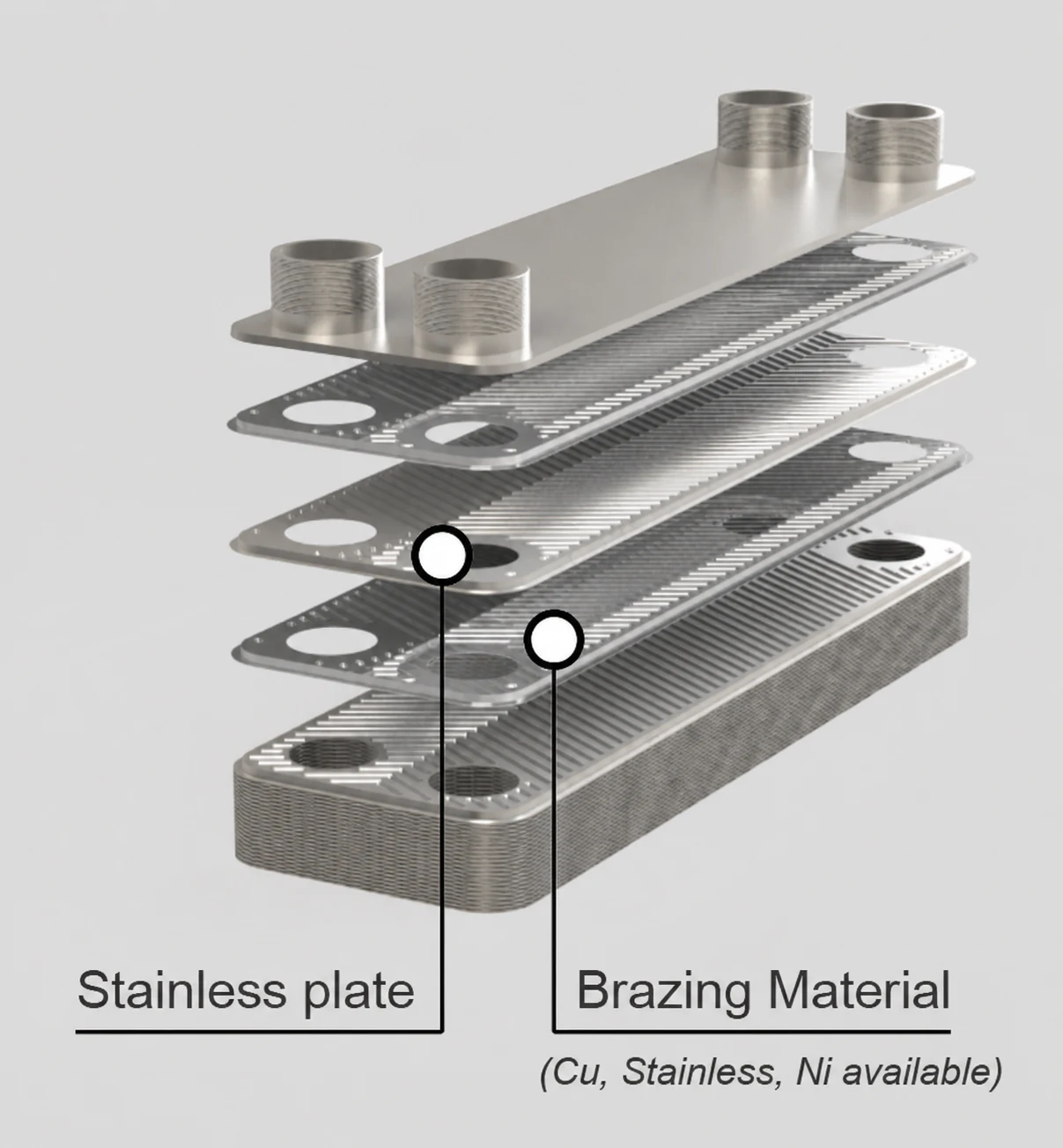

02
All-stainless bonded contact structure
The copper-colored brazing layers are replaced visually by stainless-steel bonded contact surfaces, while the plate geometry, ports and compact construction remain unchanged.
Models & technical data
Compare models and published specifications.

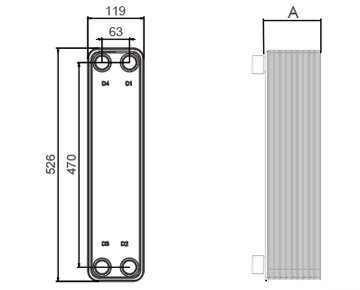

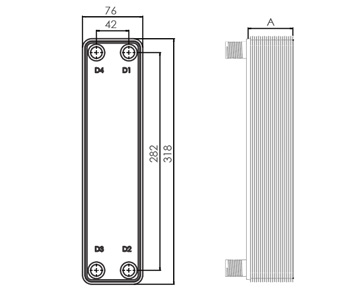

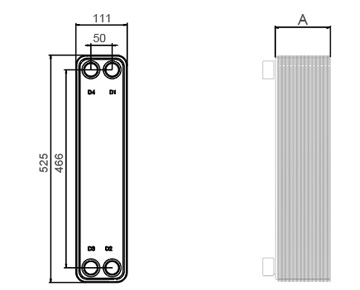

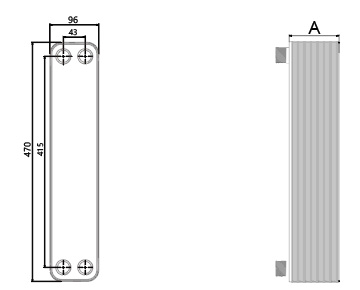

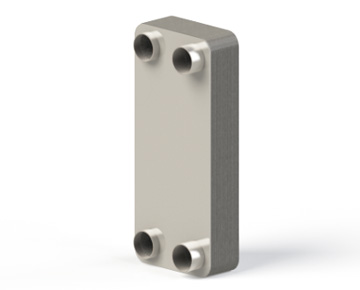

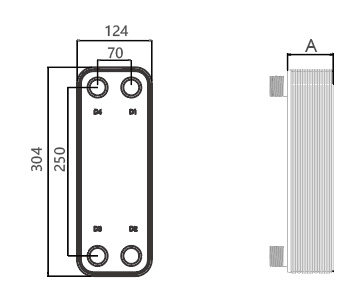

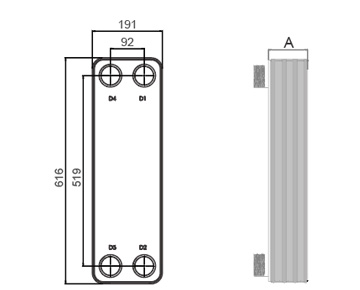

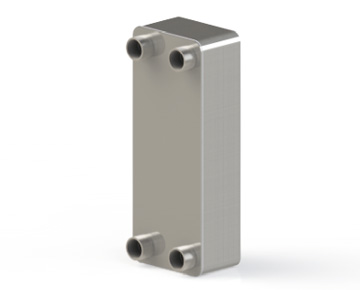

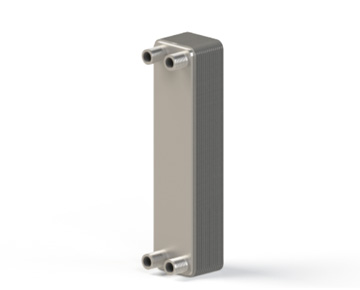

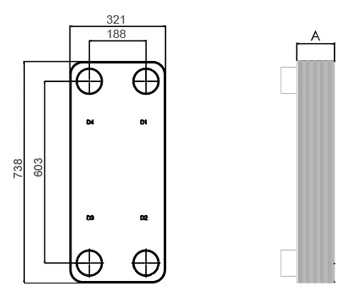

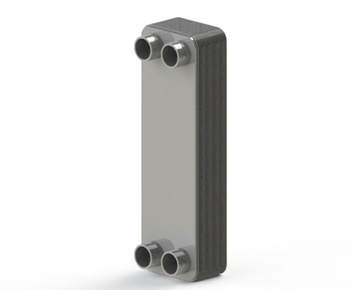

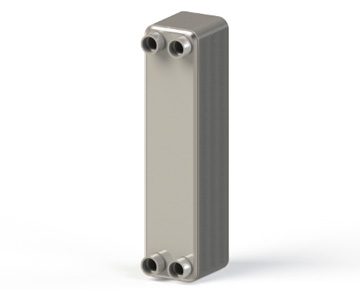

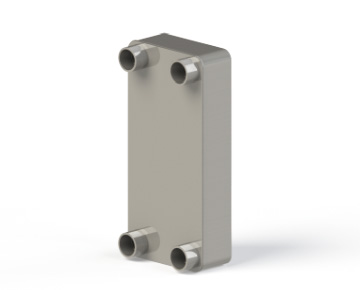

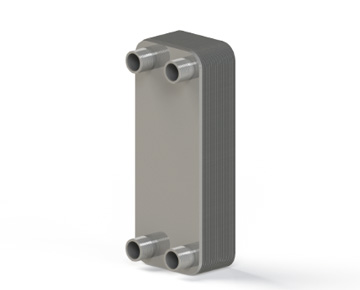

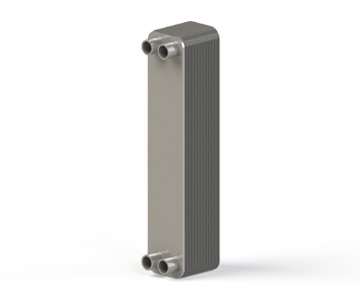

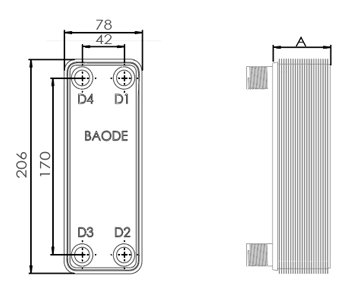

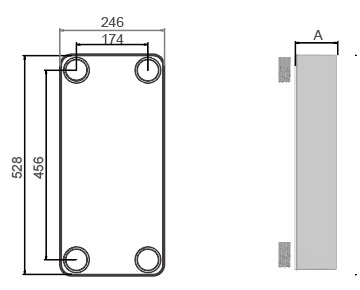

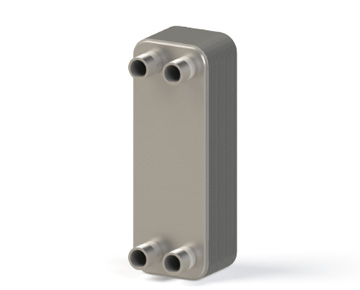

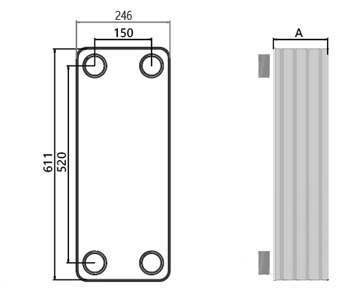

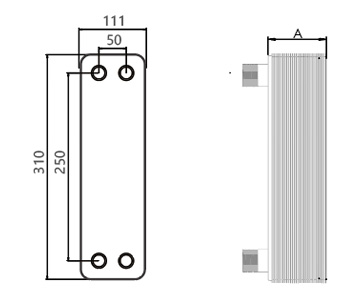

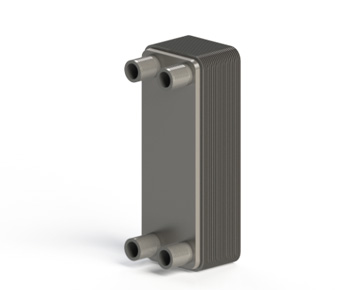

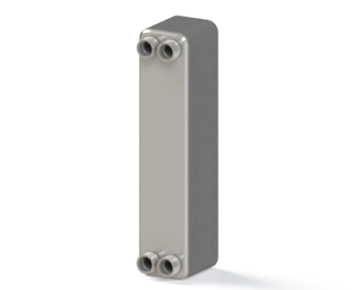

Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Published HEXNOVAS fusion-bonded series data. N = number of plates. Final pressure, temperature, chemical compatibility and connection arrangement require duty-specific verification.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.

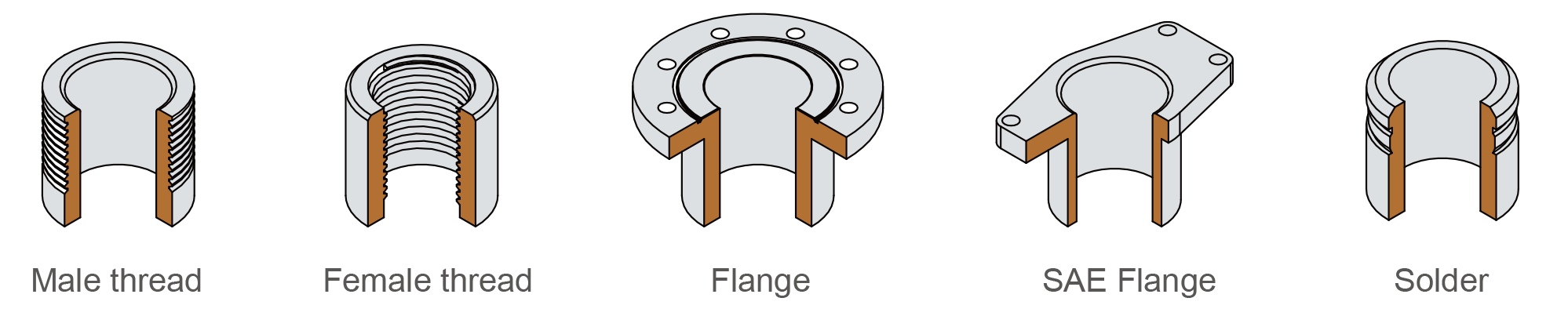

Threaded, soldered and flanged geometries can be configured in stainless steel; availability depends on model and bonding specification.
Male thread
Female thread
Stainless flange
Solder / weld connection
Custom stainless connection
Representative connection geometries. Final availability is confirmed during product selection.
Installation options
Mounting and handling accessories
Installation accessories are selected separately from the fluid connections. They support secure mounting, lifting and integration without changing the heat-transfer circuit.
Weld studs
Mounting brackets
Lifting lugs
Support stand feet
Project-specific mounting arrangement
Representative mounting and handling options. Final arrangement depends on product size and installation.
Why this technology
Designed around performance, integrity and serviceability.
No copper or nickel brazing filler in the fluid path
Broad chemical compatibility compared with copper-brazed units
High resistance to pressure cycling and thermal fatigue
Compact, gasket-free and hygienic construction
Product configuration
Structure and material options.
Available configurations
Liquid-to-liquid heating and cooling
Compact evaporator and condenser duties
Standard and application-specific port arrangements
Project-specific plate count and connections
Material options
All-stainless heat-transfer plate pack
Stainless steel cover plates and connections
Copper-free bonded construction
Typical applications
Where this exchanger fits.
01
Pharmaceutical and hygienic utilities
02
Aggressive water and chemical systems
03
High-temperature process duties
04
Applications sensitive to copper-ion contamination
Selection information
What our engineers need from you.
Provide complete fluid composition, concentration, temperatures, flow rates, design pressure, allowable pressure drop and hygiene or contamination requirements.
Frequently asked questions
Key questions before product selection.
How does Stainless Steel Fusion-Bonded Heat Exchangers work?
Corrugated stainless steel plates are permanently joined through a controlled fusion-bonding process. The bonded contact areas create sealed alternating channels without conventional copper brazing material.
What information is required to select the right product?
Provide complete fluid composition, concentration, temperatures, flow rates, design pressure, allowable pressure drop and hygiene or contamination requirements.
Which materials and configurations are available?
All-stainless heat-transfer plate pack; Stainless steel cover plates and connections; Copper-free bonded construction
How is the final product size confirmed?
The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads.
Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
