Standard Gasketed Plate Heat Exchangers High thermal efficiency, flexible capacity and straightforward service access for industrial liquid-to-liquid duties.
Home / Products / Gasketed Plate Heat Exchangers / Standard Gasketed Plate Heat Exchangers Overview How it works Construction & flow Models & specifications Benefits Applications FAQ Downloads Request product selection Working principle
How the technology transfers heat. Corrugated heat-transfer plates form alternating hot and cold channels. Gaskets seal each channel and direct the two fluids, normally in counter-current flow, while heat passes through the thin plate wall.
Construction Openable gasketed plate pack in a bolted frame
Flow arrangement Normally counter-current
Capacity adjustment Plates may be added or removed within frame limits
Cleaning Mechanical opening or chemical CIP Engineering explained
See what is happening inside the exchanger. Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.

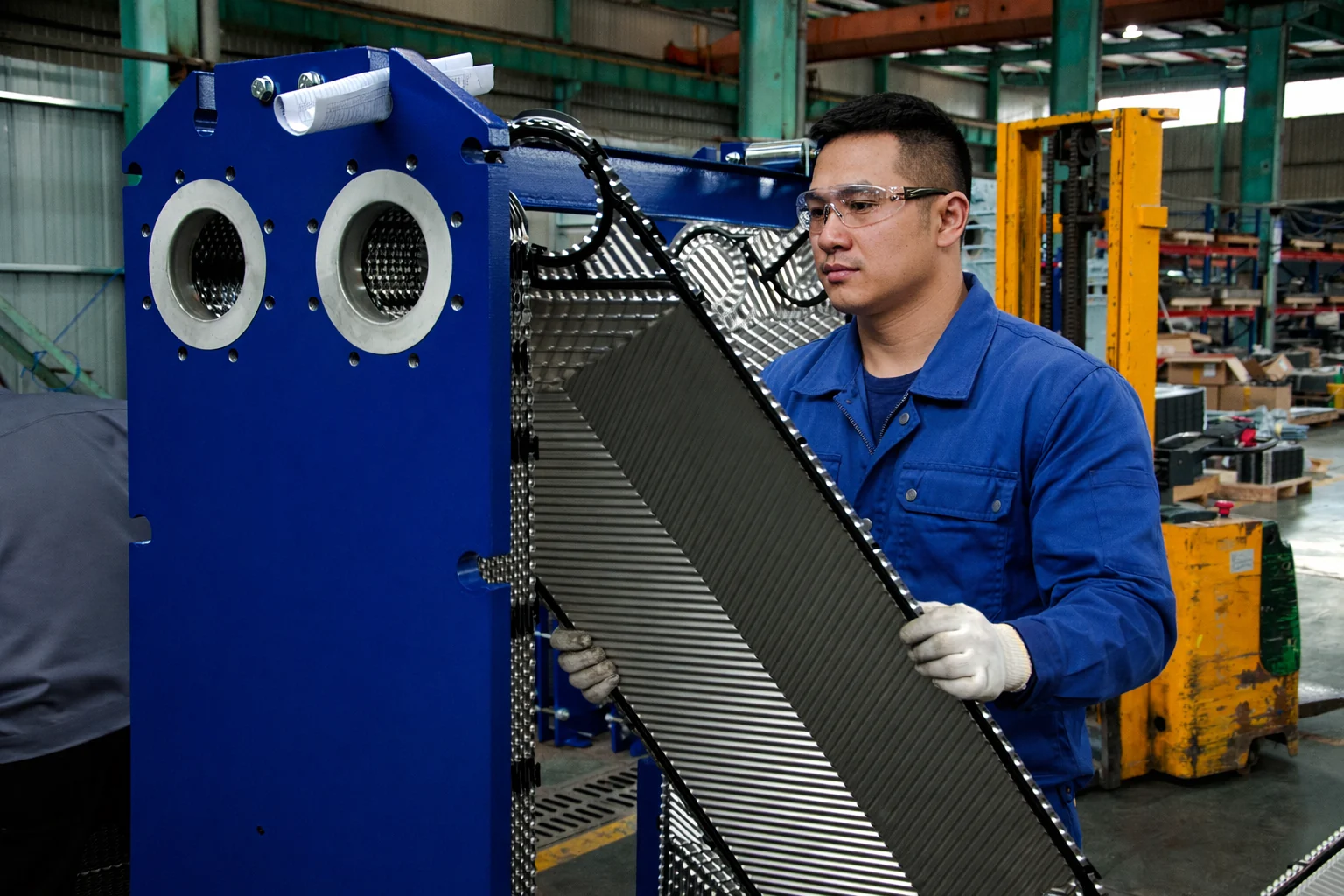

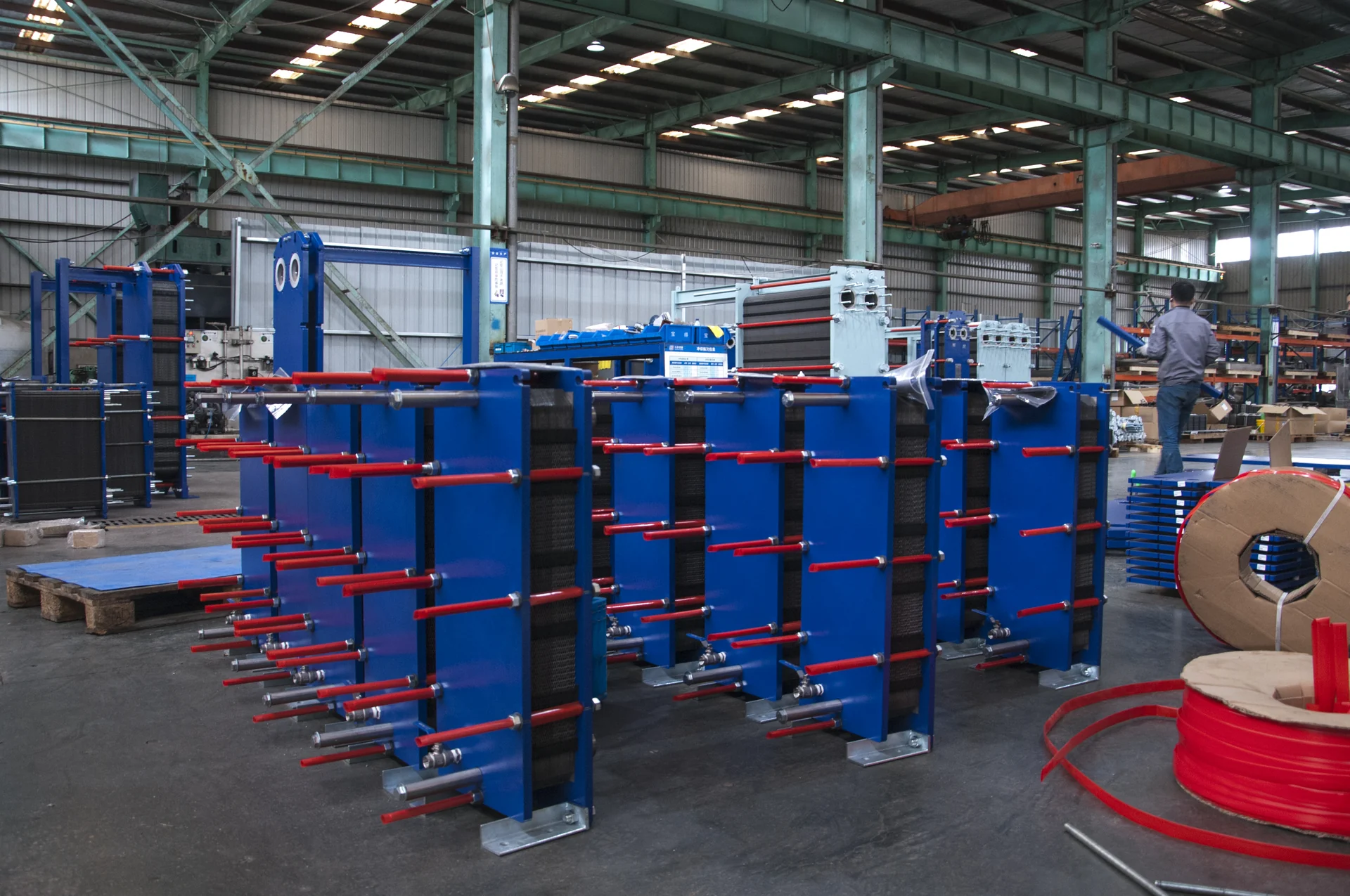

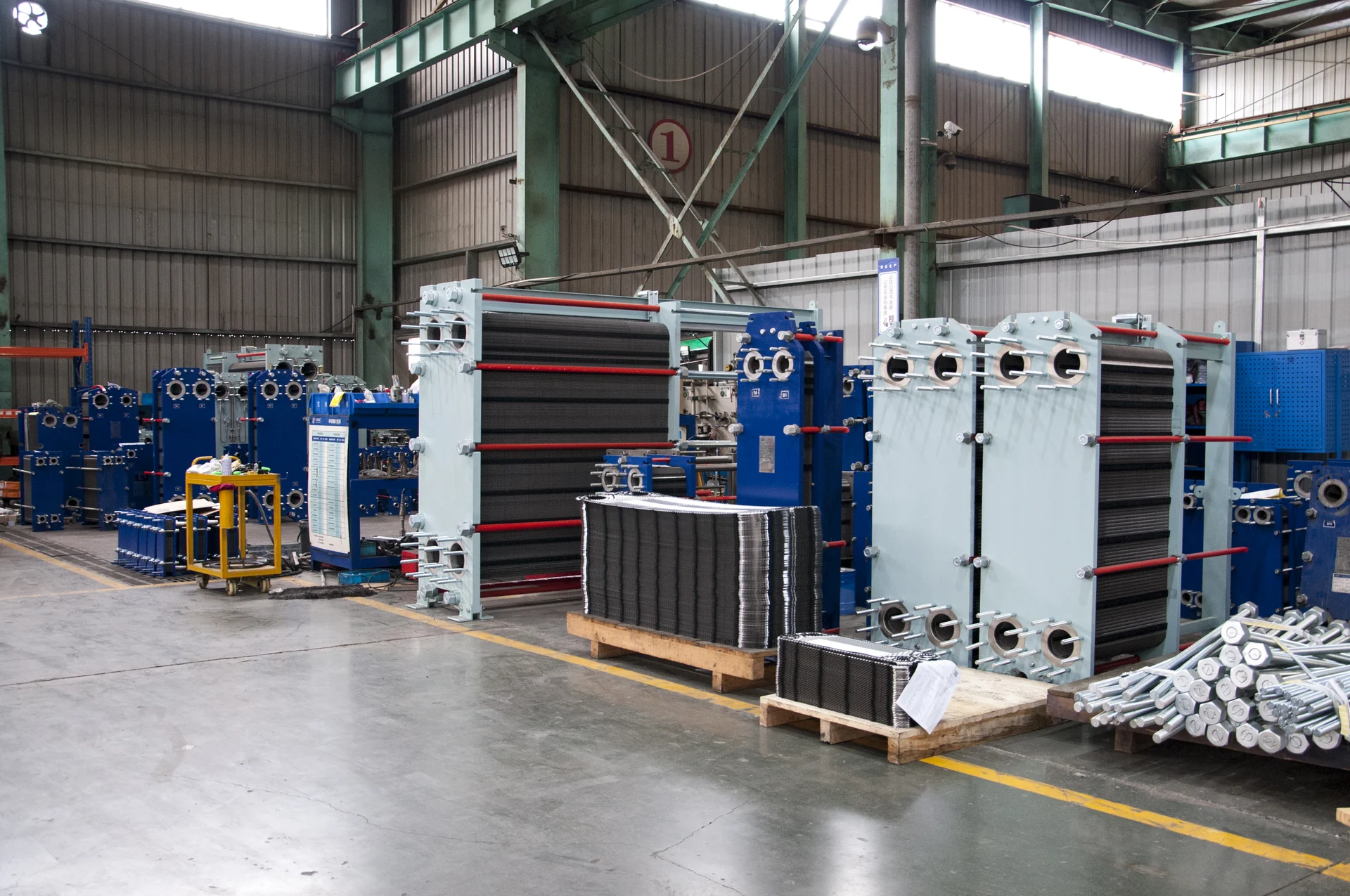

01 Openable frame and plate-pack construction The front frame plate, movable pressure plate, corrugated plate pack, guide bar, support column and tightening bars form a serviceable exchanger that can be opened for inspection or capacity adjustment.

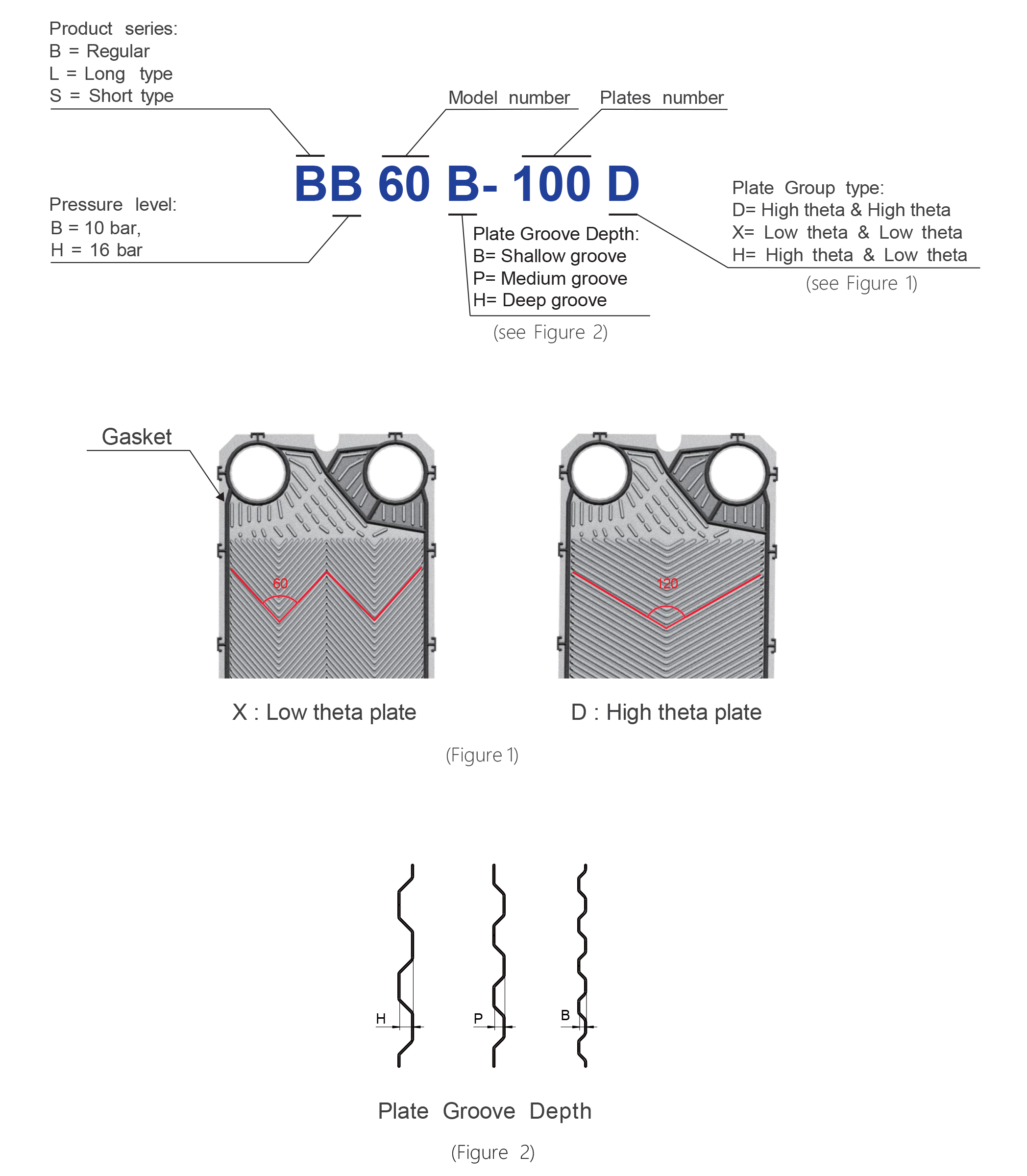

B H 60 B- 100 D
B Product seriesB = Regular L = Long S = Short
H Pressure levelB = 10 bar H = 16 bar
60 Model numberPlate platform designation
B- Plate groove depthB = Shallow P = Medium H = Deep
100 Plate countNumber of plates
D Plate group typeD = High/High X = Low/Low H = High/Low 02 How to read the Standard GPHE model name The model name identifies the product series, pressure class, model number, groove depth, plate count and plate-group combination.
03 Plate pattern and groove-depth options Separate diagrams explain the low-theta and high-theta plate patterns together with the available shallow, medium and deep groove profiles.
Models & technical data
Compare models and published specifications. Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Dimension units mm in
Quick size finder
Find the closest model by overall size. Enter either width or height in millimetres. Enter both for a more precise match.
Model platform Width (mm) Height (mm) Max. pressure (bar) Max. flow (m³/h) Free channel (mm) Plate area (m²) Details BB30B / BH30B 180 mm 480 mm 10 / 16 14 2.5 0.032 Open details LB30B / LH30B 190 mm 790 mm 10 / 16 18 1.8 0.075 Open details BB60B / BH60B 320 mm 920 mm 10 / 16 54 2 0.15 Open details BB60H / BH60H 320 mm 920 mm 10 / 16 54 3 0.15 Open details SB60H / SH60H 400 mm 704 mm 10 / 16 72 3.95 0.086 Open details LB60B / LH60B 320 mm 1,264 mm 10 / 16 72 2 0.255 Open details BB100B / BH100B 454 mm 1,119 mm 10 / 16 180 2.5 0.24 Open details BB100H / BH100H 454 mm 1,119 mm 10 / 16 180 3.95 0.24 Open details LB100B / LH100B 480 mm 1,885 mm 10 / 16 180 2 0.50 Open details LB100P / LH100P 480 mm 1,885 mm 10 / 16 180 3 0.50 Open details BB150B / BH150B 610 mm 1,885 mm 10 / 16 290 2.5 0.65 Open details BB150H / BH150H 610 mm 1,885 mm 10 / 16 290 3.95 0.65 Open details LB150B / LH150B 610 mm 2,749 mm 10 / 16 432 1.9 1.10 Open details BB200B / BH200B 750 mm 2,150 mm 10 / 16 720 2 0.90 Open details BB200P / BH200P 750 mm 2,150 mm 10 / 16 720 3 0.90 Open details BB200H / BH200H 750 mm 2,150 mm 10 / 16 720 4 0.90 Open details BB250B / BH250B 920 mm 2,595 mm 10 / 16 900 2.5 1.50 Open details BB250H / BH250H 920 mm 2,595 mm 10 / 16 900 3.95 1.50 Open details SB200H / SH200H 800 mm 1,425 mm 10 / 16 690 4 0.30 Open details BB300B / BH300B 1,190 mm 2,595 mm 10 / 16 1,800 3.4 1.85 Open details LB350B / LH350B 1,154 mm 3,139 mm 10 / 16 2,340 2.5 2.20 Open details BB450H / BH450H 1,430 mm 3,509 mm 10 / 16 3,491 4 2.80 Open details
Published HEXNOVAS Standard GPHE platform data. B and H frame-pressure suffixes identify 10-bar and 16-bar versions. Final plate count, plate pattern, frame length, material, gasket and connection arrangement are confirmed from the thermal duty.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Model details

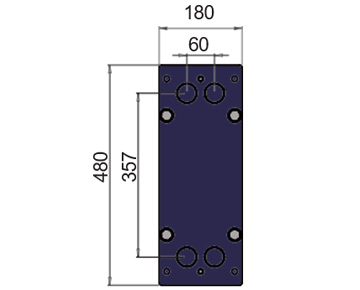

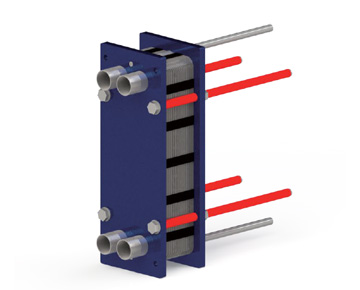

BB30B / BH30B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 180 mm
Height (mm) 480 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 14
Free channel (mm) 2.5
Plate area (m²) 0.032
Volume / channel (L) 0.09
Port size 1.25 in
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

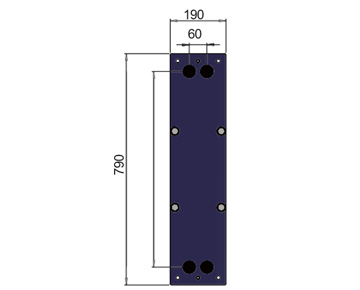

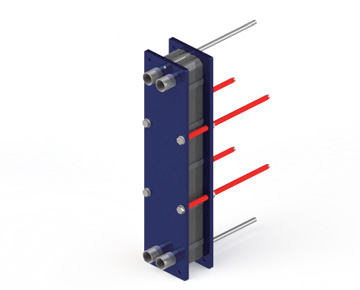

LB30B / LH30B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 190 mm
Height (mm) 790 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 18
Free channel (mm) 1.8
Plate area (m²) 0.075
Volume / channel (L) —
Port size 1.25 in
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

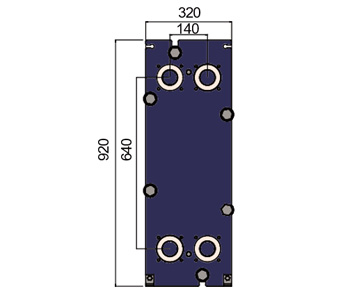

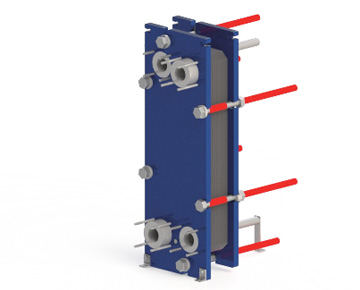

BB60B / BH60B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 320 mm
Height (mm) 920 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 54
Free channel (mm) 2
Plate area (m²) 0.15
Volume / channel (L) 0.30
Port size DN50
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

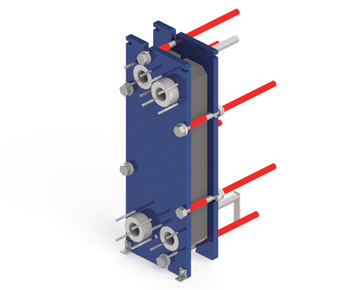

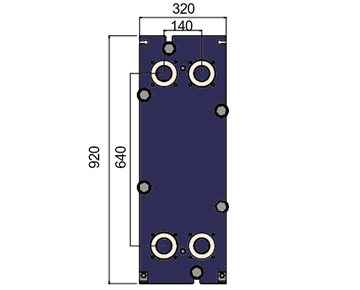

BB60H / BH60H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 320 mm
Height (mm) 920 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 54
Free channel (mm) 3
Plate area (m²) 0.15
Volume / channel (L) 0.43
Port size DN50
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

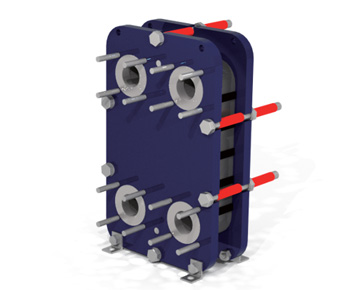

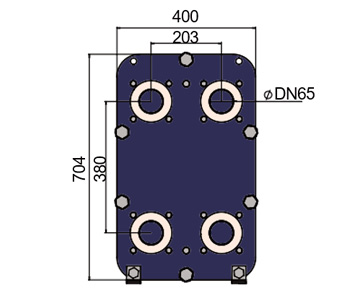

SB60H / SH60H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 400 mm
Height (mm) 704 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 72
Free channel (mm) 3.95
Plate area (m²) 0.086
Volume / channel (L) 0.46
Port size DN65
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

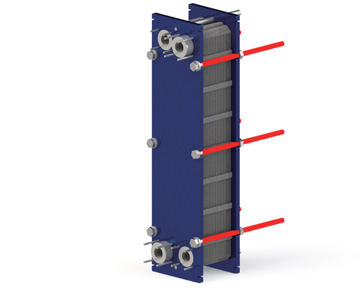

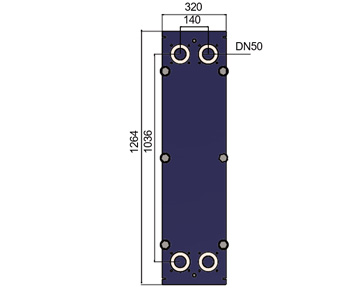

LB60B / LH60B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 320 mm
Height (mm) 1,264 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 72
Free channel (mm) 2
Plate area (m²) 0.255
Volume / channel (L) 0.42
Port size DN65
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

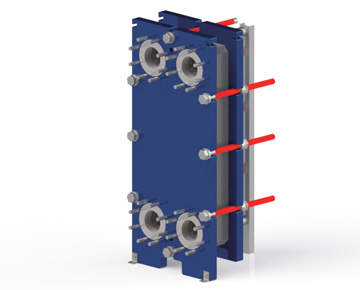

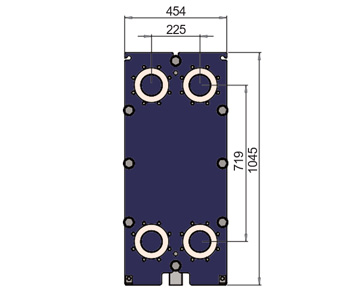

BB100B / BH100B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 454 mm
Height (mm) 1,119 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 180
Free channel (mm) 2.5
Plate area (m²) 0.24
Volume / channel (L) 0.66
Port size DN100
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

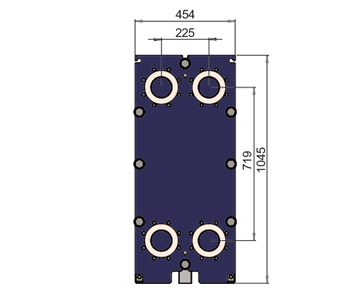

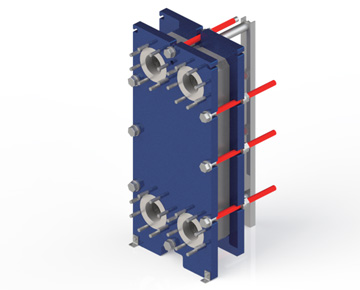

BB100H / BH100H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 454 mm
Height (mm) 1,119 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 180
Free channel (mm) 3.95
Plate area (m²) 0.24
Volume / channel (L) 1.0
Port size DN100
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

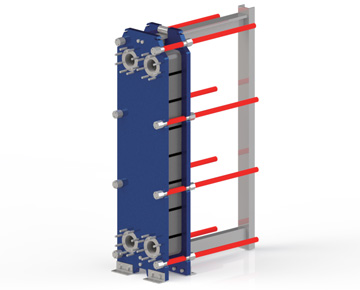

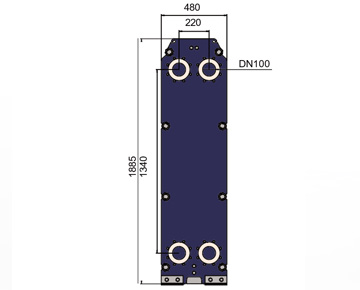

LB100B / LH100B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 480 mm
Height (mm) 1,885 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 180
Free channel (mm) 2
Plate area (m²) 0.50
Volume / channel (L) 0.90
Port size DN200
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

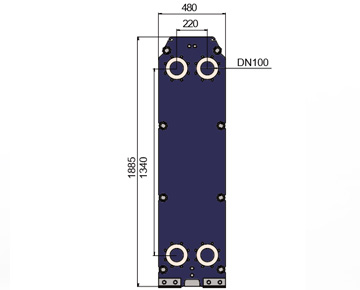

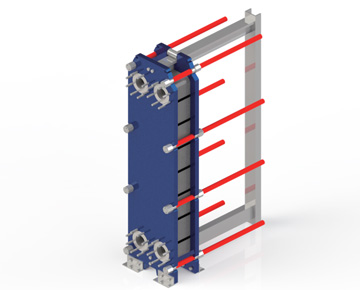

LB100P / LH100P HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 480 mm
Height (mm) 1,885 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 180
Free channel (mm) 3
Plate area (m²) 0.50
Volume / channel (L) 0.60
Port size DN100
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

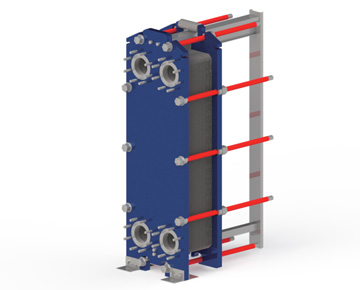

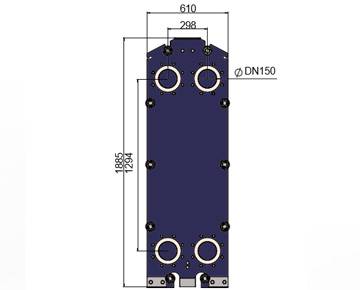

BB150B / BH150B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 610 mm
Height (mm) 1,885 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 290
Free channel (mm) 2.5
Plate area (m²) 0.65
Volume / channel (L) 1.55
Port size DN150
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

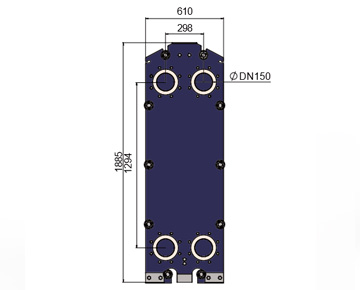

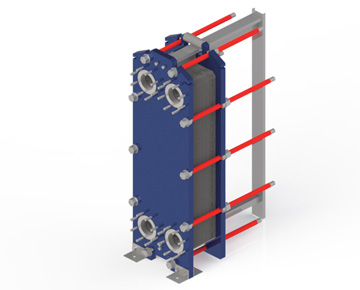

BB150H / BH150H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 610 mm
Height (mm) 1,885 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 290
Free channel (mm) 3.95
Plate area (m²) 0.65
Volume / channel (L) 2.50
Port size DN150
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

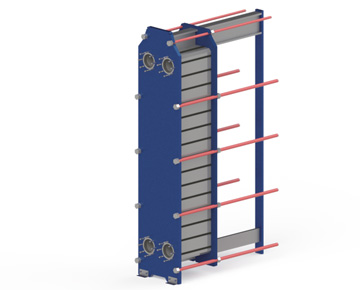

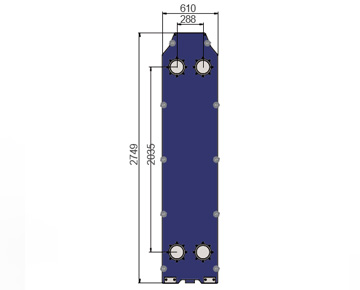

LB150B / LH150B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 610 mm
Height (mm) 2,749 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 432
Free channel (mm) 1.9
Plate area (m²) 1.10
Volume / channel (L) —
Port size DN150
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

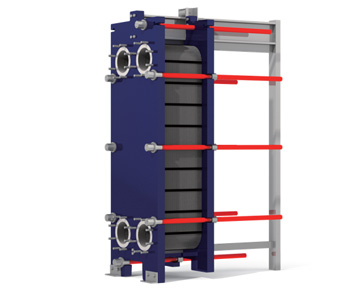

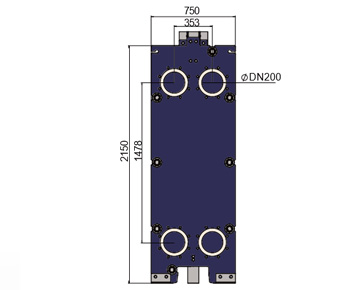

BB200B / BH200B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 750 mm
Height (mm) 2,150 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 720
Free channel (mm) 2
Plate area (m²) 0.90
Volume / channel (L) 2.0
Port size DN200
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

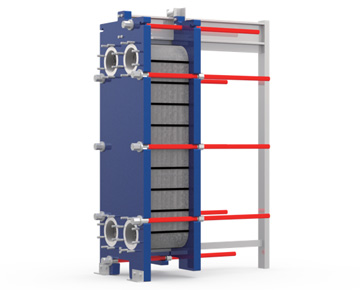

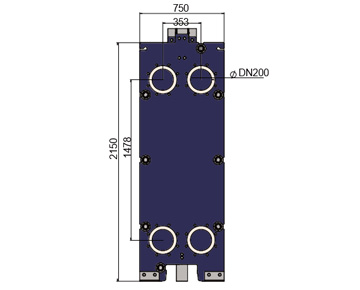

BB200P / BH200P HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 750 mm
Height (mm) 2,150 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 720
Free channel (mm) 3
Plate area (m²) 0.90
Volume / channel (L) 2.75
Port size DN200
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

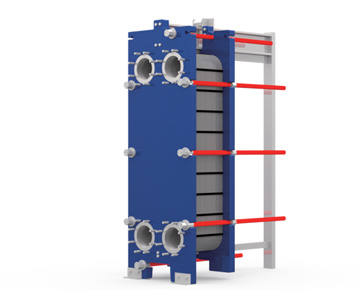

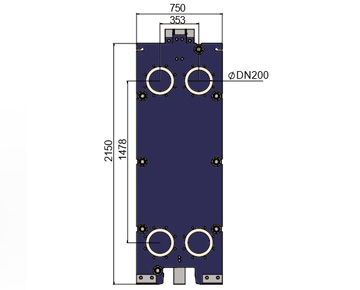

BB200H / BH200H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 750 mm
Height (mm) 2,150 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 720
Free channel (mm) 4
Plate area (m²) 0.90
Volume / channel (L) 3.67
Port size DN200
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

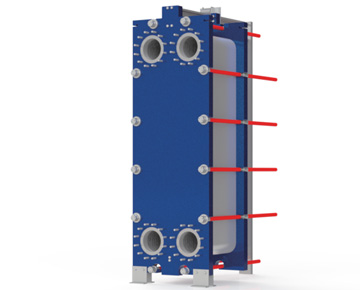

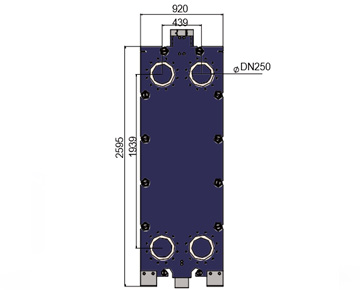

BB250B / BH250B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 920 mm
Height (mm) 2,595 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 900
Free channel (mm) 2.5
Plate area (m²) 1.50
Volume / channel (L) 3.62
Port size DN250
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

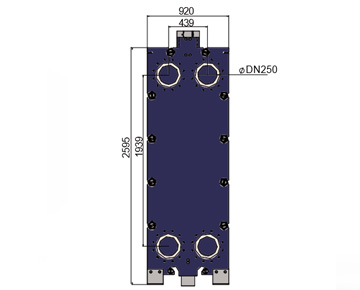

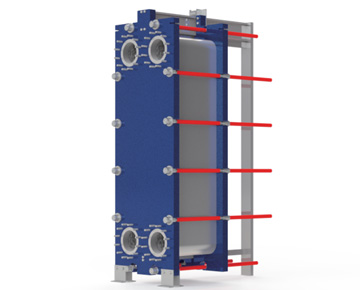

BB250H / BH250H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 920 mm
Height (mm) 2,595 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 900
Free channel (mm) 3.95
Plate area (m²) 1.50
Volume / channel (L) 5.50
Port size DN250
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

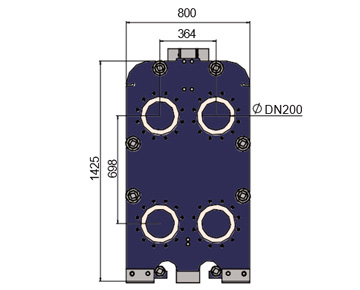

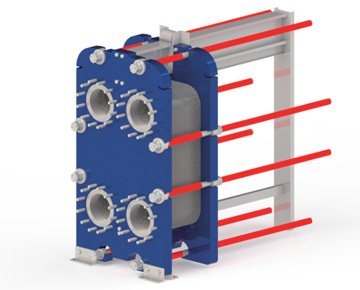

SB200H / SH200H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 800 mm
Height (mm) 1,425 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 690
Free channel (mm) 4
Plate area (m²) 0.30
Volume / channel (L) —
Port size DN200
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

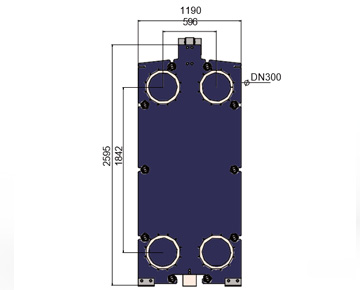

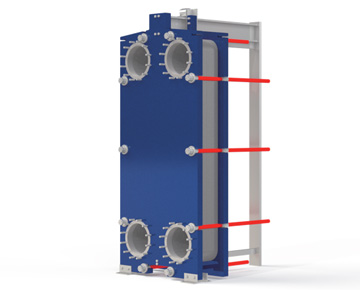

BB300B / BH300B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 1,190 mm
Height (mm) 2,595 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 1,800
Free channel (mm) 3.4
Plate area (m²) 1.85
Volume / channel (L) 6.30
Port size DN300
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

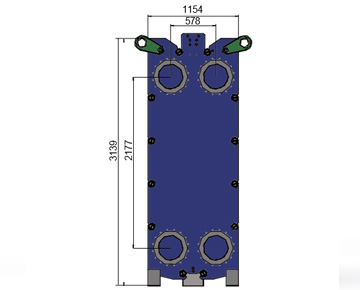

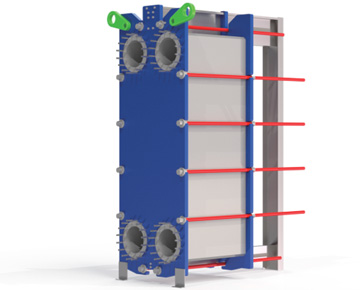

LB350B / LH350B HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 1,154 mm
Height (mm) 3,139 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 2,340
Free channel (mm) 2.5
Plate area (m²) 2.20
Volume / channel (L) —
Port size DN350
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Model details

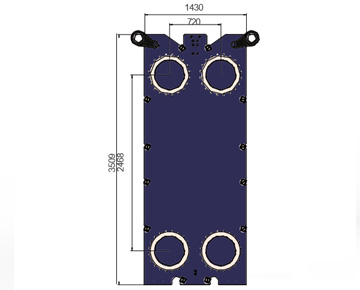

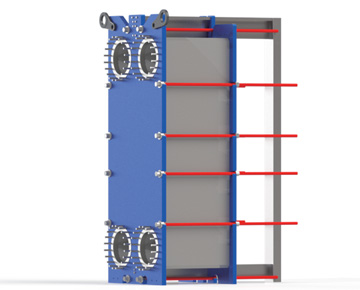

BB450H / BH450H HEXNOVAS Standard Gasketed Plate Heat Exchangers
Product configuration Dimension drawing
Width (mm) 1,430 mm
Height (mm) 3,509 mm
Max. pressure (bar) 10 / 16
Max. flow (m³/h) 3,491
Free channel (mm) 4
Plate area (m²) 2.80
Volume / channel (L) —
Port size DN450
Plate thickness 0.5 / 0.6 mm
Plate material SS304 / SS316L / 904L / titanium / C276 / SMO / nickel
Gasket material NBR / EPDM / FKM
Gasket type Clip-on
Flow arrangement Parallel Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Request model selection Connection configuration

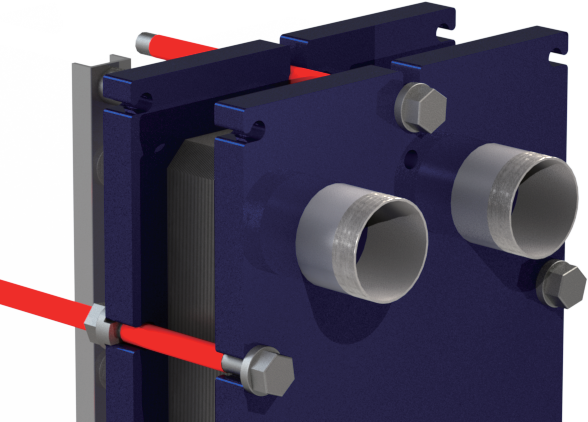

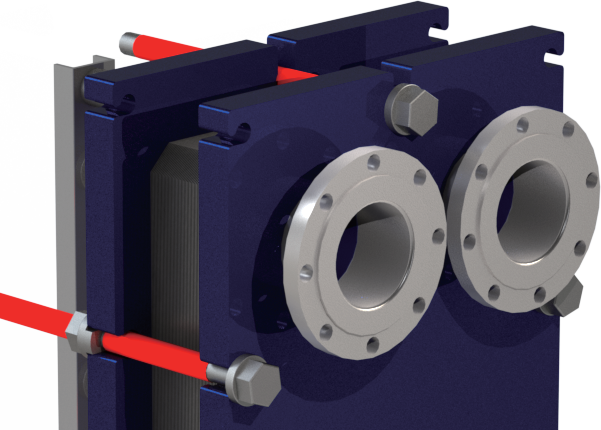

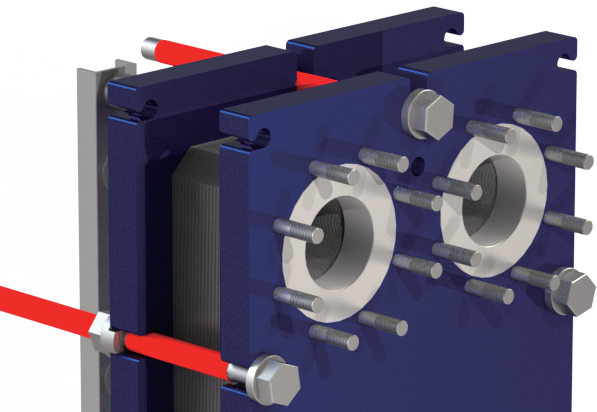

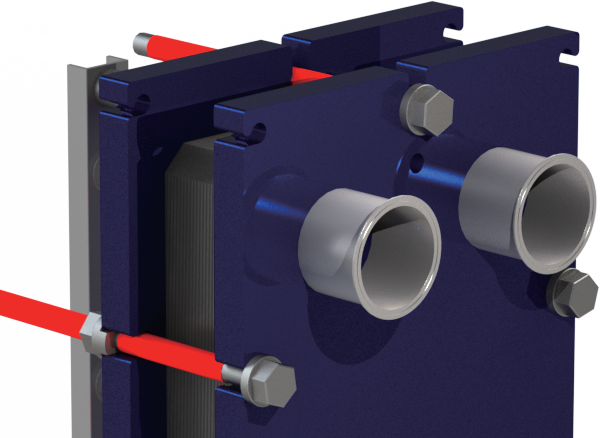

Industrial connection and lining options The frame connection is selected around port size, piping standard, pressure class, corrosion protection and maintenance requirements.
Representative connection geometries. Final availability is confirmed during product selection. Why this technology
Designed around performance, integrity and serviceability. Product configuration
Structure and material options. Available configurations Single-pass and multi-pass arrangements Standard, wide-gap and special channel plates Single- and multi-section frames Threaded, stud and flanged connections Material options Stainless steel plate options Titanium and corrosion-resistant plate materials EPDM, NBR, FKM and duty-specific gaskets Typical applications
Where this exchanger fits. 01 HVAC and district energy 02 Industrial process heating and cooling 03 Marine and power-generation utilities 04 Heat recovery and water systems Selection information
What our engineers need from you. Provide fluids, flow rates, inlet and outlet temperatures, operating pressure, allowable pressure drop, plate material and gasket compatibility.
Frequently asked questions
Key questions before product selection. How does Standard Gasketed Plate Heat Exchangers work? Corrugated heat-transfer plates form alternating hot and cold channels. Gaskets seal each channel and direct the two fluids, normally in counter-current flow, while heat passes through the thin plate wall.
What information is required to select the right product? Provide fluids, flow rates, inlet and outlet temperatures, operating pressure, allowable pressure drop, plate material and gasket compatibility.
Which materials and configurations are available? Stainless steel plate options; Titanium and corrosion-resistant plate materials; EPDM, NBR, FKM and duty-specific gaskets
How is the final product size confirmed? The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads. Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
