Project Overview

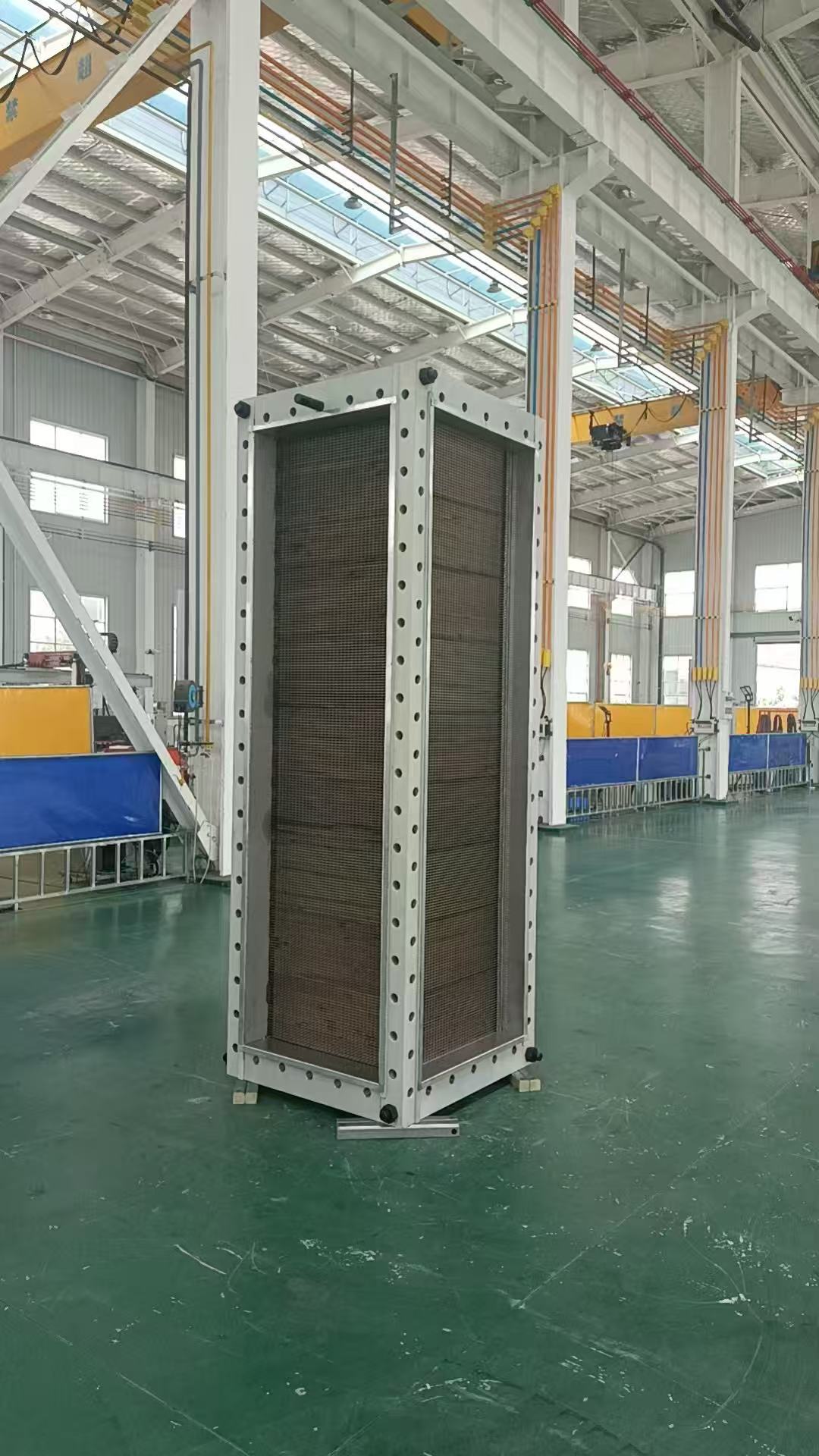

The client had an existing Compabloc CP75 unit in operation and needed a replacement core rather than a completely new exchanger package. In this type of project, the challenge is rarely limited to heat transfer surface alone. The real work is in reproducing the internal geometry, maintaining mechanical reliability, and ensuring that the new plate pack can be integrated into the old unit with predictable performance and acceptable shutdown risk.
For retrofit work, a replacement core must do three things at the same time: fit correctly, seal correctly, and run correctly. That means the manufacturing route has to be more disciplined than a simple copy-and-build approach. Engineering review, dimensional control, plate orientation, weld continuity, and leak testing all become part of the replacement logic.
Why a CP75 Replacement Core Is Not a Simple Spare Part
Dimensional Matching
The new core has to align with the original frame envelope and internal arrangement. Even small cumulative deviations can create fit-up problems during installation.
Weld Integrity
A fully welded core depends on consistent joint preparation and stable welding quality. Any discontinuity directly affects service reliability.
Process Stability
Replacement work is not judged only by whether the core can be installed. It must also maintain flow distribution, pressure drop behavior, and operating safety.
In many plants, the practical reason for replacing only the plate pack is straightforward: the client wants to recover operation with the least disruption to the existing system. A controlled core replacement often offers a better balance of lead time, cost, and site work than replacing the entire exchanger body.
Replacement Approach
For this CP75 case, the replacement strategy was built around the existing installation rather than forcing the client into a broader equipment change. The engineering review focused on the plate pack as the critical element. The objective was to reproduce a workable internal structure that matched the unit’s retrofit constraints while keeping manufacturing and inspection standards suitable for fully welded service.
The replacement philosophy was simple
- Confirm the key dimensions and replacement envelope before fabrication.
- Control plate forming and stack alignment to avoid cumulative error.
- Use a welding route suited to a fully welded compact exchanger core.
- Verify integrity through inspection and leak tightness testing before release.
Plate Pack Production Flow With Quality Control Points
This project also highlighted a point that experienced buyers usually care about: the replacement core is only as good as the manufacturing discipline behind it. For that reason, the production route was managed step by step, with each stage tied to a clear control point rather than treated as a routine fabrication task.
Review operating requirements, replacement envelope, material choice, plate thickness, and fabrication standard before release to production.
QC: Design verificationCheck material certificates, thickness tolerance, surface condition, and traceability of the plates and related materials.
QC: MTC / thickness / surfaceCut plates according to the approved geometry with controlled edge quality to avoid burrs or distortion that could affect later fit-up.
QC: Dimensional accuracyForm the plate pattern with attention to consistency, geometry repeatability, and the absence of cracks or forming damage.
QC: Pattern consistency / no defectsRemove burrs, correct local irregularities, and prepare the plate surfaces for stable assembly and welding.
QC: Clean edges / surface conditionConfirm flow direction logic, plate sequence, and distribution zone alignment before stacking the core.
QC: Orientation / sequence checkStack and align the plates under controlled conditions to keep channel spacing and overall dimensions within target tolerance.
QC: Stack alignment / fit-upStabilize the assembly before final welding while checking positioning and distortion tendency.
QC: Pre-weld fit-up inspectionComplete the welded plate pack using the approved procedure and controlled heat input appropriate for the project.
QC: Weld continuity / penetrationPerform inspection according to project requirement to verify weld soundness and the absence of unacceptable defects.
QC: PT / RT as applicableVerify internal and external sealing performance through suitable tightness testing before release.
QC: Leak rate within specificationConfirm dimensions, finish, traceability records, and transport protection before the replacement core is dispatched.
QC: Final release checkExecution Notes From This Case
The replacement core was treated as a retrofit project, not a generic spare. This matters because retrofit success depends on the relationship between the old unit and the new internal structure.
Plate forming consistency was kept under close control so the stack could build up correctly and remain stable through later welding stages.
For a replacement core, weld quality is not just a fabrication concern. It directly influences whether the unit can be returned to service with confidence.
The release condition was based on inspection and leak tightness confirmation, not on visual completion alone. That is the point where a replacement core becomes a usable retrofit component rather than a workshop product.
Project Outcome
The result of this CP75 replacement core project was a retrofit-oriented solution that supported the client’s practical objective: restore the exchanger through a replacement plate pack rather than force a complete equipment change. The value of that approach lies in reducing disruption while keeping quality control centered on the part of the exchanger that matters most in welded service.
What the Client Gains
- A workable route to restore service using a replacement core.
- Less site disruption than a full exchanger replacement program.
- A clearer QC trail for fabrication, inspection, and release.
- A retrofit path better aligned with maintenance planning and shutdown reality.
What This Case Shows
- Replacement core projects depend on manufacturing discipline, not just copied dimensions.
- Plate pack quality is built through sequence control from material inspection to leak testing.
- For welded compact exchangers, weld integrity and fit-up are as important as surface area.
- A practical retrofit solution can often be more attractive than a full equipment replacement.
Why This Type of Work Requires Real Engineering Attention
Fully welded compact heat exchanger replacement is often underestimated by buyers who only look at the nameplate and nominal model. In practice, the reliability of a replacement core comes from the details: plate geometry control, stack accuracy, weld stability, and disciplined verification before shipment. That is why replacement work of this kind should be approached as a technical project with fabrication control, not simply as a commodity spare order.
If you are dealing with an aging Compabloc-style unit, a replacement core project can be a sensible route when the installation envelope is still usable and the priority is to bring the exchanger back into dependable service with manageable site impact.
FAQ
Is a replacement core always better than a complete new unit?
Not always. The right path depends on the condition of the existing structure, the shutdown window, and the economic balance between retrofit work and a full replacement. Where the external arrangement remains practical, a replacement core can be an efficient solution.
What matters most in a welded plate pack replacement?
Three points usually decide the result: dimensional fit-up, weld integrity, and leak tightness. Surface area is only one part of the story. Without controlled fabrication and inspection, a replacement core may fit poorly or create reliability issues later.
Can the replacement project be tailored to existing site constraints?
Yes. In many retrofit jobs, the point is to work around real site limits rather than redesign the entire system. That is why engineering review at the beginning of the project is so important.
Do you only support Compabloc CP75 replacement work?
No. The same engineering logic can apply to other welded compact exchanger replacement projects, provided the operating conditions, structural constraints, and manufacturing route are reviewed carefully.
