Modern data centers are no longer simple server rooms. They are complex energy systems integrating cooling, power management, and waste heat recovery. As shown in the system diagram, heat exchangers form the core thermal interface between IT equipment and external energy infrastructure.
Rather than acting as isolated components, heat exchangers operate as thermal bridges, connecting internal liquid cooling loops with facility water systems, free cooling units, and heat reuse networks.
In the cooling section, heat exchangers are located inside the Coolant Distribution Unit (CDU). The BPHE separates two independent circuits:
IT coolant loop (directly connected to servers)
Facility water loop (chilled water or cooling water)
The BPHE transfers heat from server liquid to building water without mixing fluids.
Typical parameters:
IT loop inlet temperature: 30–45°C
IT loop outlet temperature: 20–30°C
Cooling capacity per BPHE: 200–1500 kW
Design pressure: 10–25 bar
Approach temperature: 2–4 K
Here, the heat exchanger ensures:
Stable server operation
Electrical isolation
High heat transfer efficiency in compact space

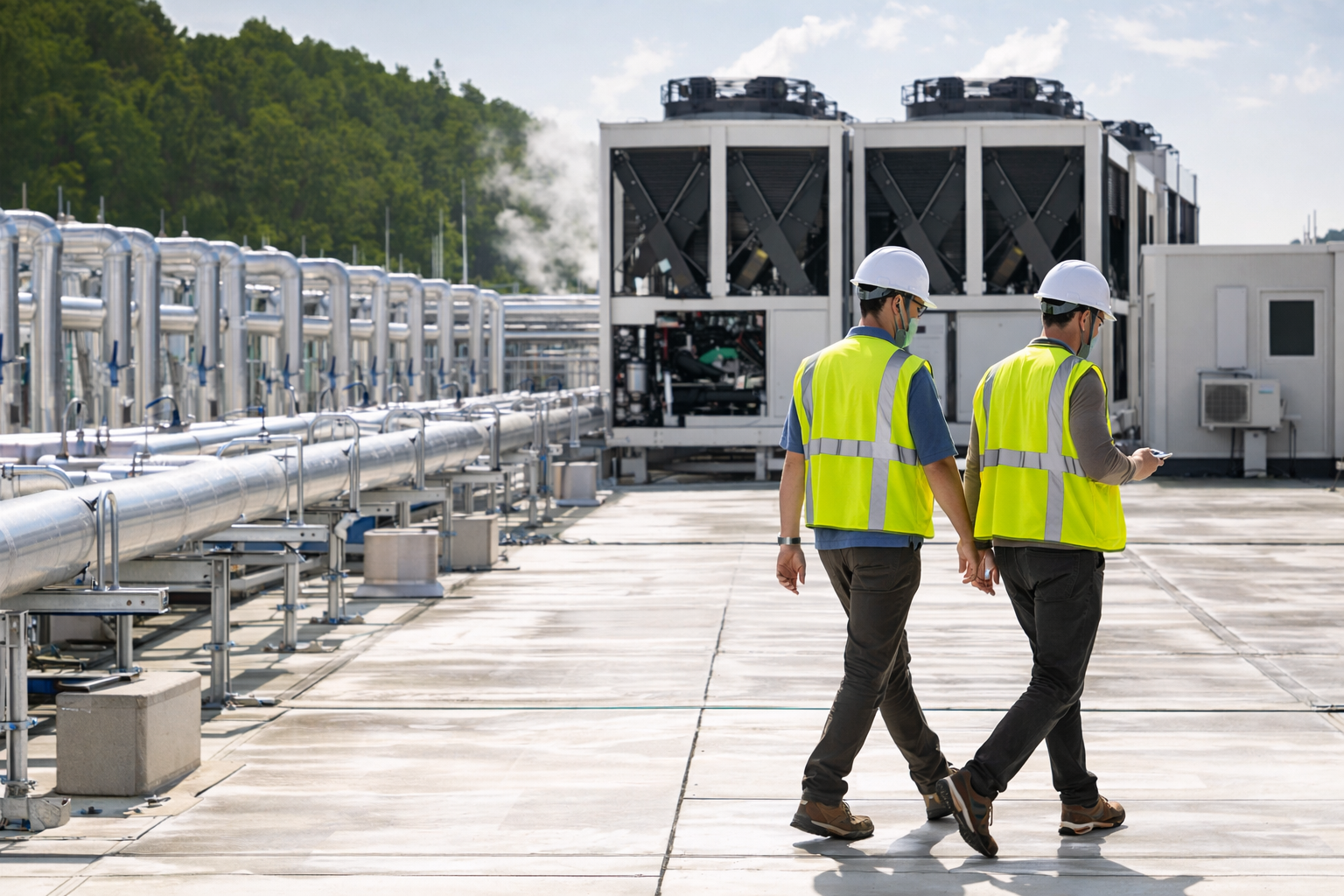

In the free cooling section, heat exchangers connect internal cooling loops to dry coolers, cooling towers, or ambient water sources.
Instead of using chillers, the system uses outside air or water directly.
Typical operation:
Cold water temperature: 12–18°C
Free cooling window: 40–70% of annual operating hours
Energy savings: 15–30%
In this scenario, the heat exchanger becomes the boundary between the data center and natural environment.
The lower part of the diagram shows how heat exchangers enable waste heat reuse.
Recovered warm water is transferred to:
Office buildings
District heating systems
Domestic hot water networks
Typical heat recovery parameters:
Warm water temperature: 30–55°C
Annual reuse time: 6000–8000 hours
CO₂ reduction: up to 40%
In this role, the heat exchanger transforms the data center from a pure energy consumer into an energy supplier.
From cooling to free cooling and heat recovery, heat exchangers are no longer auxiliary devices. They act as:
Thermal interfaces
Energy transfer hubs
System integration components
In next-generation data centers, heat exchangers are not just part of the cooling system — they are core infrastructure for digital energy management.
