Dimple plate heat transfer technology is widely used in industrial temperature control systems for reactors, storage tanks, fermentation vessels, and processing equipment. Two of the most common configurations are the Dimple Plate Jacket and the Dimple Jacket Tank. Although both use embossed plate channels to circulate heating or cooling media, they differ in structure, thermal coverage, retrofit flexibility, and application strategy.

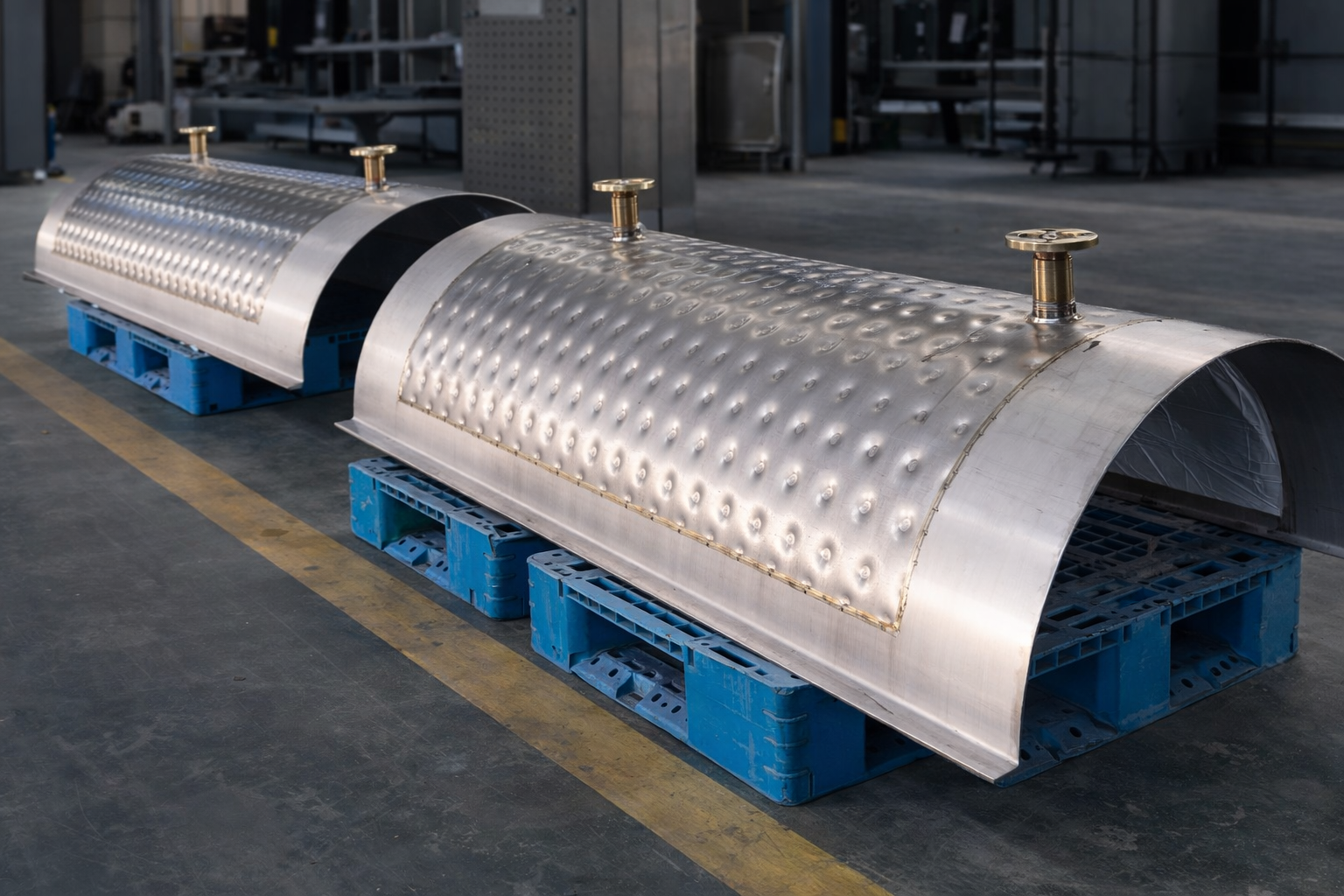

A dimple plate jacket is formed by welding embossed stainless steel plates onto the outside of an existing vessel shell. The welded dimples create flow passages between the jacket plate and the tank wall, allowing steam, hot water, thermal oil, chilled water, or glycol to circulate around the vessel.
Because the jacket is attached directly to the vessel wall, heat moves from the service medium through the jacket plate, across the vessel shell, and then into the product inside the tank. The embossed dimple pattern improves turbulence and helps reduce stagnant zones inside the jacket channel, which enhances overall thermal efficiency compared with many conventional external jackets.
In a dimple plate jacket system, the heat transfer medium flows through the narrow embossed channels outside the vessel wall. The transfer mechanism is mainly:
Steam, hot water, thermal oil, or cooling liquid flows through the dimple channel and transfers heat to the vessel wall by convection.
Heat passes through the stainless steel jacket plate and vessel shell by conduction.
The stored or processed liquid inside the tank absorbs or releases heat, often assisted by mixing or agitation.
The embossed dimple geometry promotes better flow distribution and improves local heat transfer coefficients.

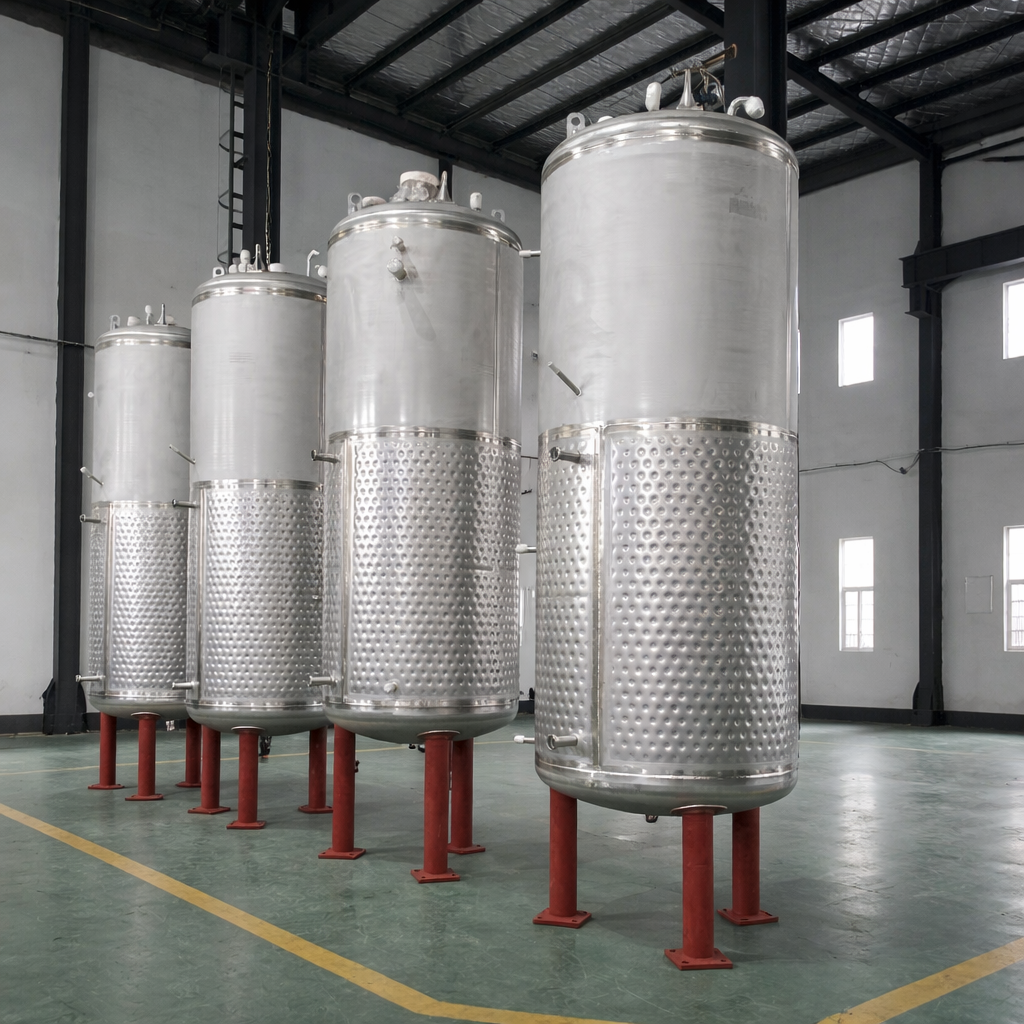

A dimple jacket tank is a complete vessel engineered with an integrated dimple heat transfer section as part of the tank body. Instead of adding a jacket later, the vessel is designed from the beginning with built-in heat transfer coverage for more uniform temperature control.
This configuration is widely used when the process requires stable product temperature, higher thermal contact area, and an integrated sanitary or industrial vessel design. Compared with a simple retrofit jacket, a dedicated dimple jacket tank can be optimized for geometry, media flow path, insulation arrangement, nozzle layout, and structural performance.
A dimple jacket tank uses the same basic principles of convection and conduction, but the heat transfer surface is more intentionally integrated into the tank design. This usually delivers:
The heat transfer layer can be designed around a larger portion of the vessel body for more consistent thermal response.
Integrated jacket zoning helps reduce hot spots and cold spots during storage or processing.
Nozzle arrangement, drainage, insulation, and media circuits can be planned as part of one complete engineering package.
Particularly valuable for temperature-sensitive liquids, fermentation, dairy processing, and chemical storage.
Both designs are used for industrial heating and cooling, but they serve slightly different engineering objectives. A dimple plate jacket is more flexible for retrofitting or upgrading an existing vessel, while a dimple jacket tank is more suitable when the entire vessel can be designed as one complete thermal system.
| Feature | Dimple Plate Jacket | Dimple Jacket Tank |
|---|---|---|
| Structure | External dimple jacket welded onto a vessel | Integrated vessel with built-in dimple heat transfer section |
| Engineering Approach | Retrofit or add-on solution | Complete tank design solution |
| Heat Transfer Area | Usually partial or localized coverage | Can be designed for broader and more uniform coverage |
| Installation | Suitable for modifying existing tanks | Suitable for newly manufactured tanks |
| Temperature Control | Localized or sectional heating / cooling | More uniform temperature control across the vessel |
| Typical Industries | Chemical, pharma, general process retrofits | Brewing, dairy, fermentation, storage, integrated process systems |
| Heat Transfer Mechanism | Convective jacket flow + conduction through shell + product-side absorption | Same principle, but optimized through integrated tank layout and surface coverage |
