Industrial Furnaces
Furnace walls, burner zones, and process chambers often face continuous radiant heat. Pillow plate panels can be installed as cooled wall protection to control metal temperature and extend furnace service life.
In high-temperature processing, the challenge is often not simply to block heat, but to control it. When wall temperatures become too high, insulation alone may no longer be enough. Pillow plate thermal shields solve this problem by combining structural protection with internal cooling channels, creating a robust surface that can remove heat continuously while protecting the underlying equipment.

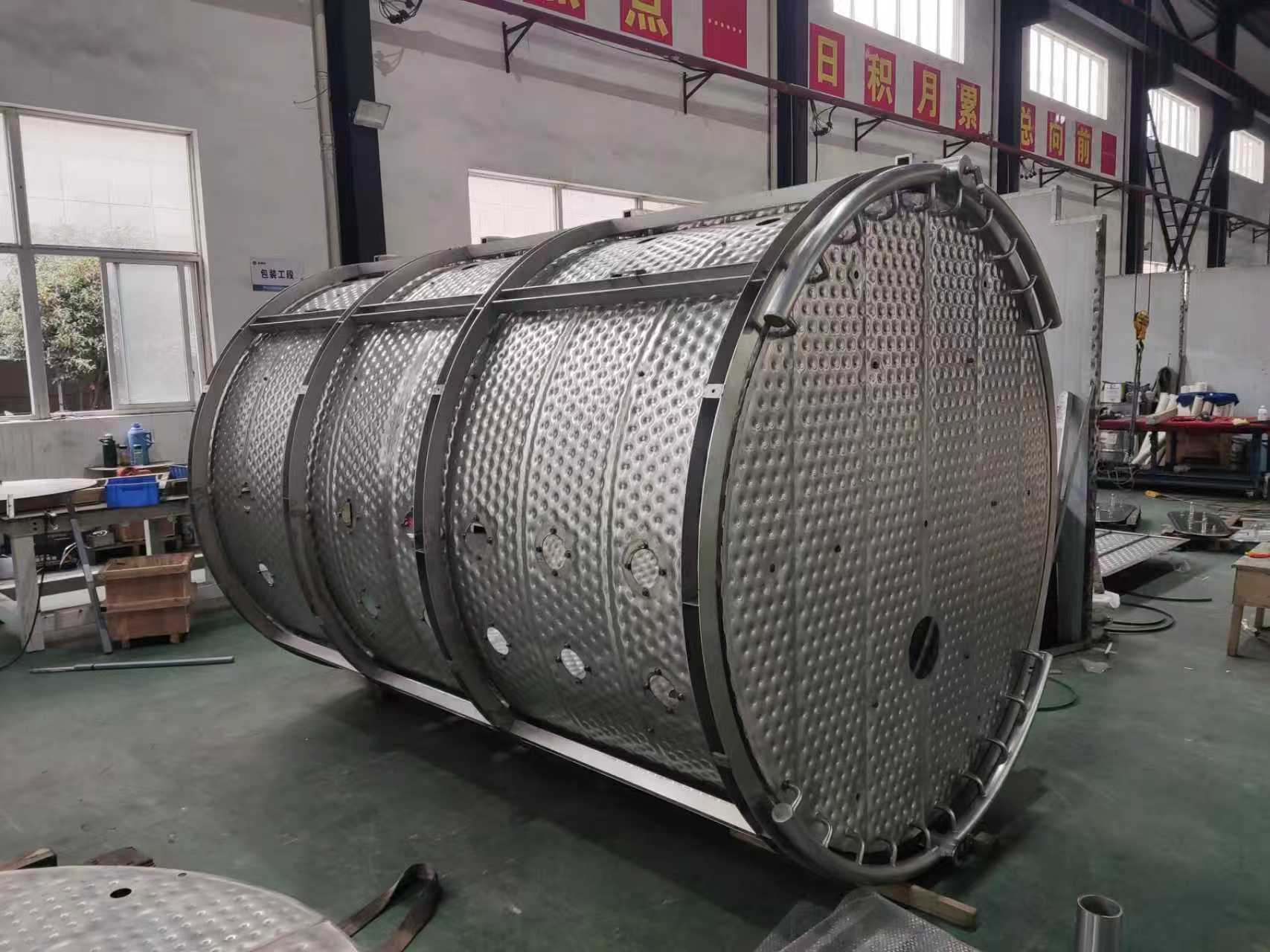

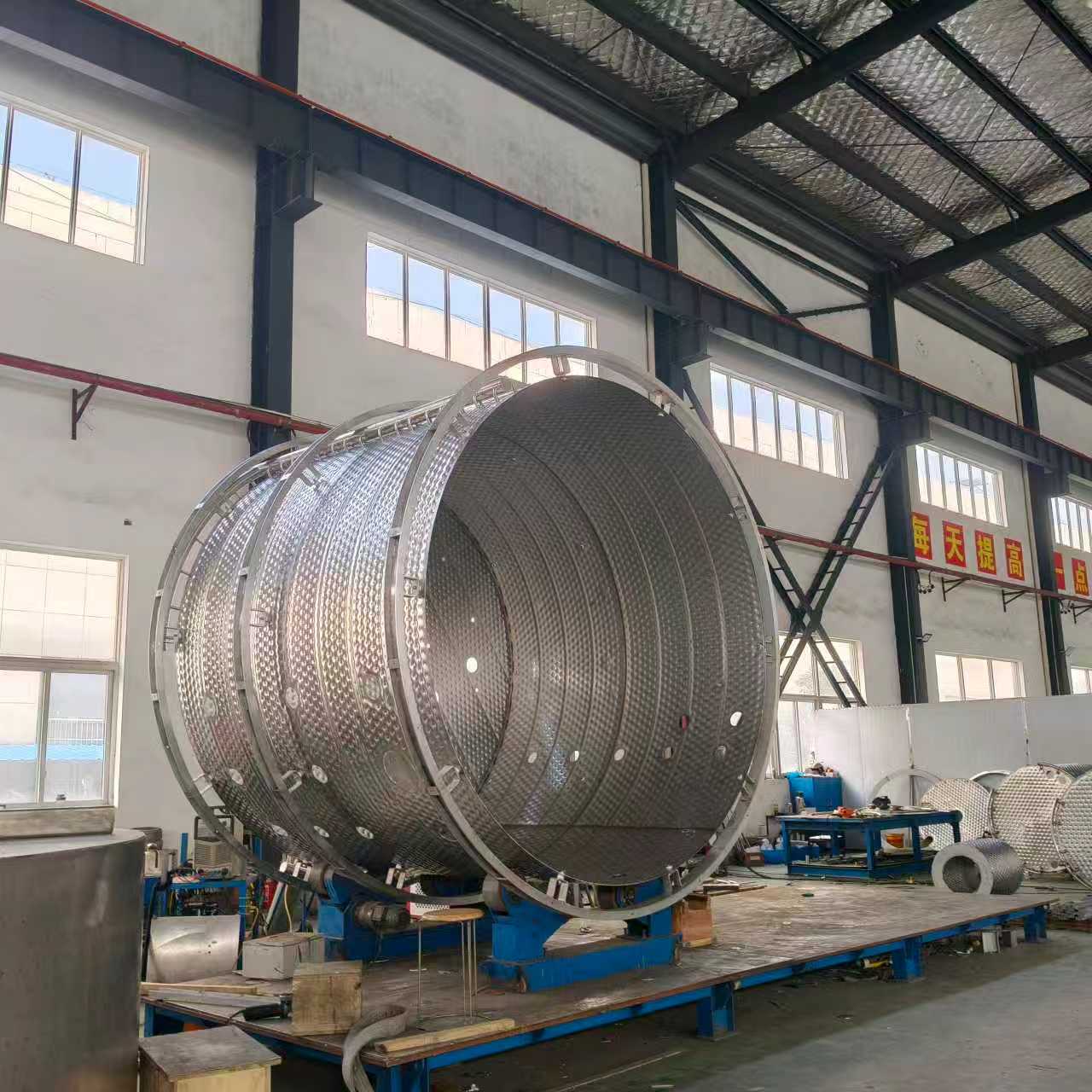

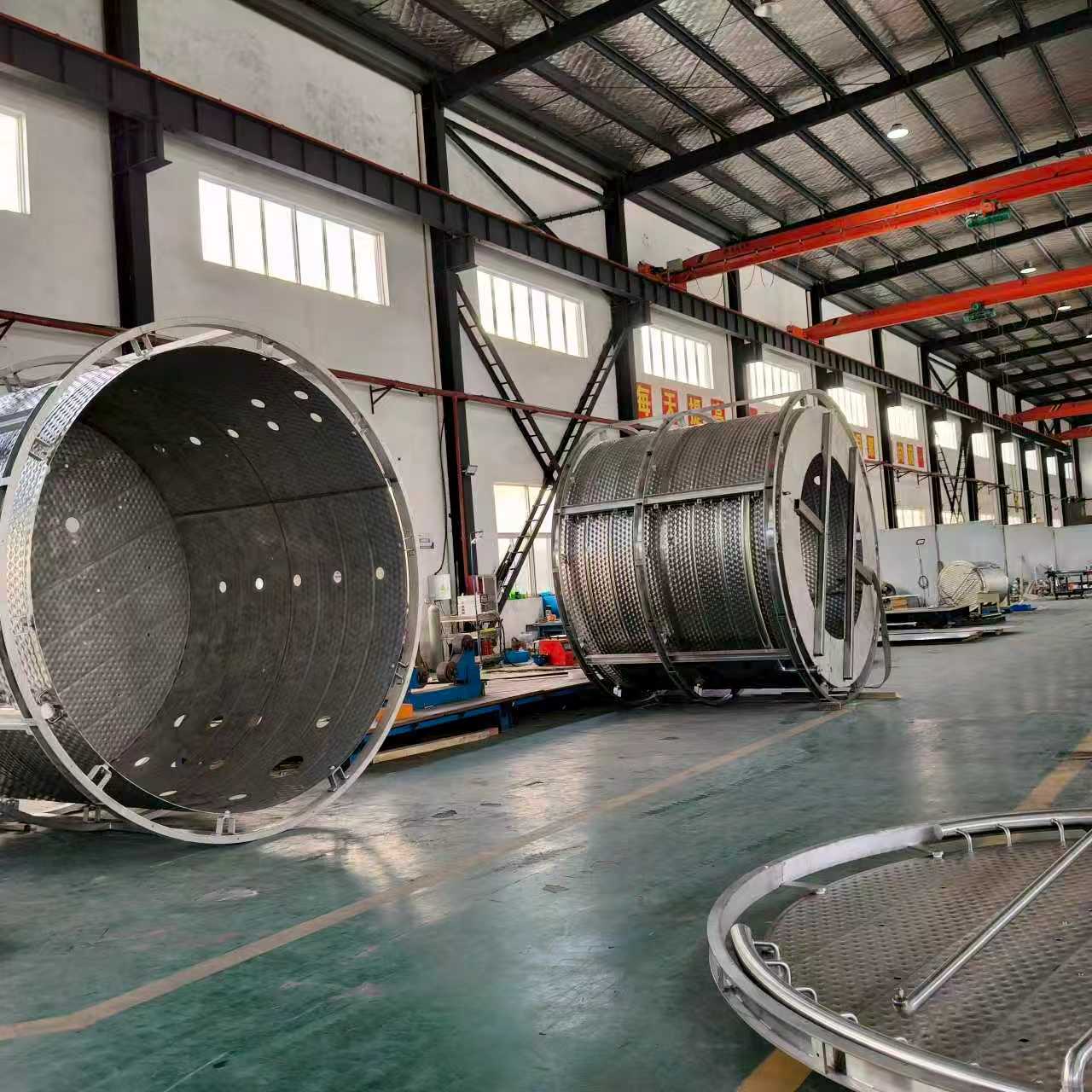

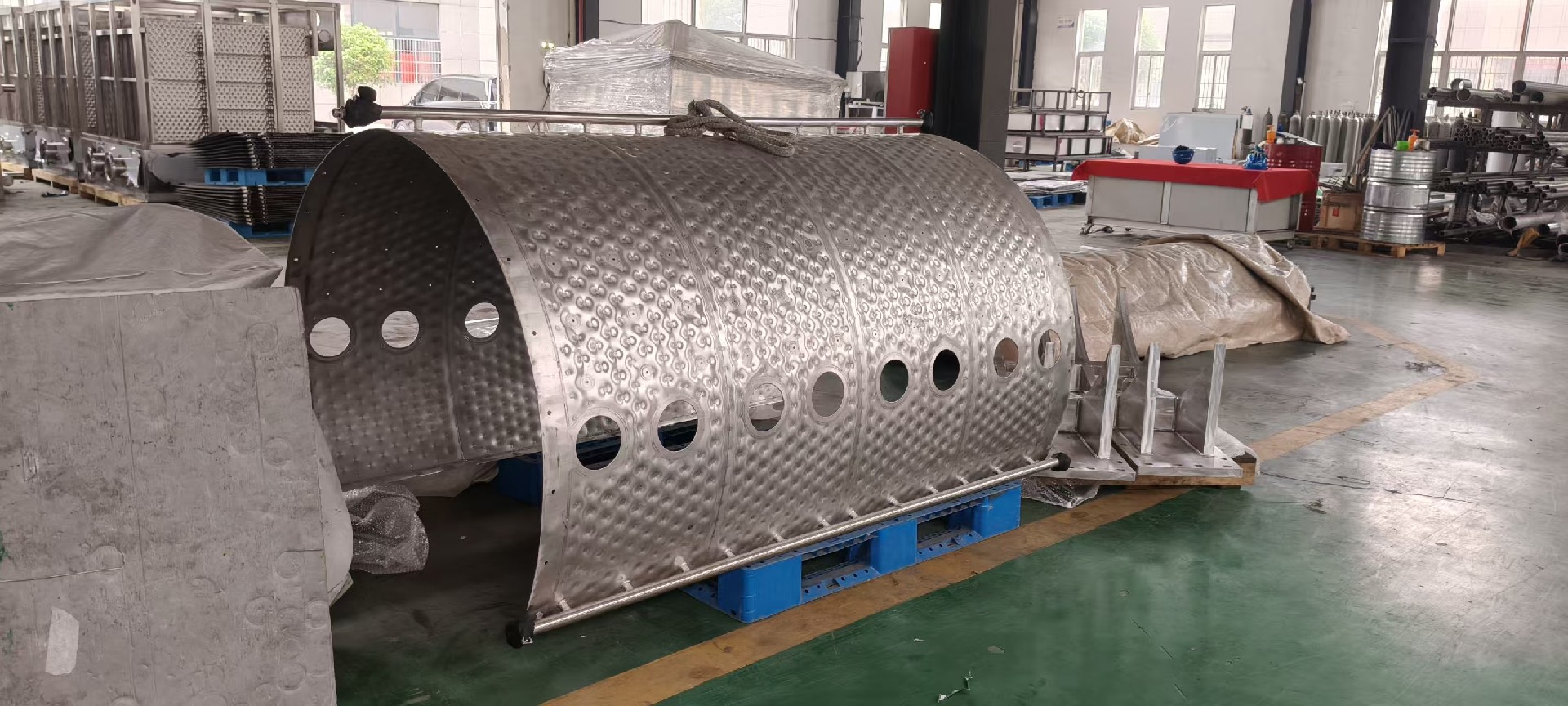

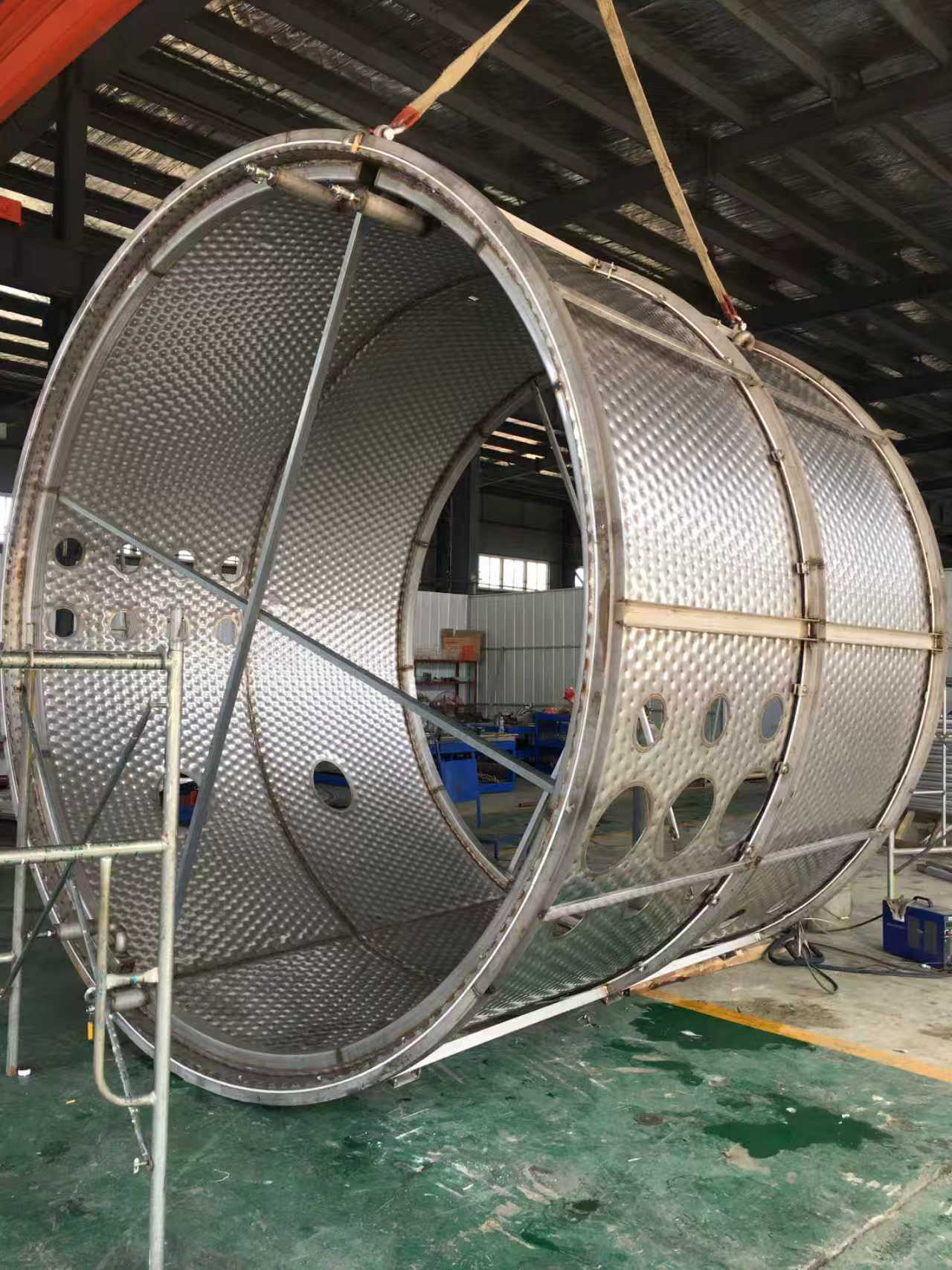

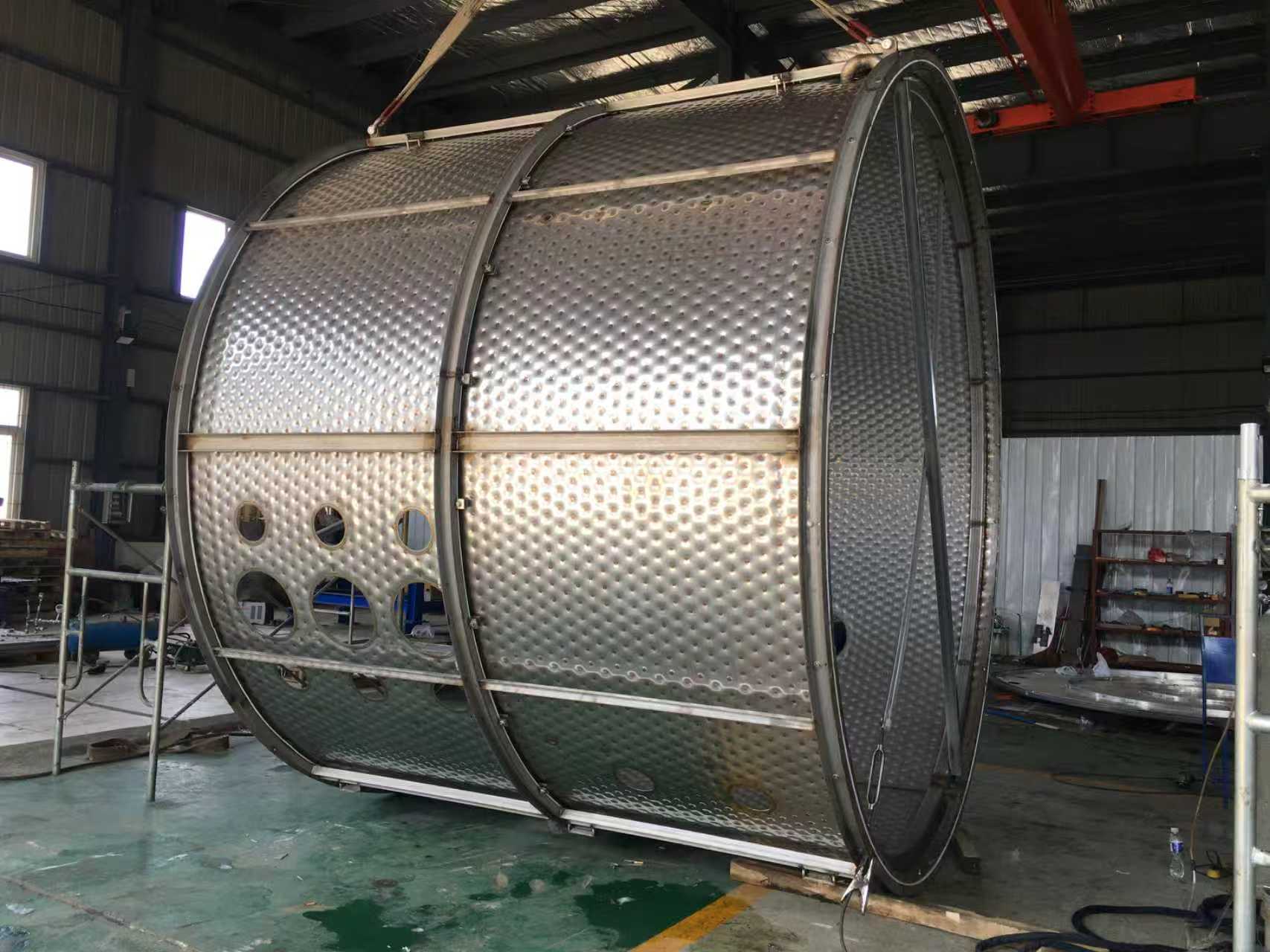

What Is a Pillow Plate Thermal Shield?
A pillow plate thermal shield is a double-wall metal panel made by welding two sheets together and then inflating them to form internal flow passages. Cooling media such as water, thermal oil, or other process fluids circulate through these channels and remove heat from the exposed surface.
This design changes the function of a thermal shield. Instead of acting only as a passive barrier, the panel becomes an engineered heat removal surface. That is why pillow plates are increasingly used in high-temperature applications where stable wall temperature, longer equipment life, and tighter thermal control are required.
Why Active Cooling Works Better Than Passive Shielding
Traditional thermal shields reduce heat transfer by reflection or insulation. That approach is effective within certain limits, but in applications with high radiant load or continuous exposure to hot gases, the shield itself can still become too hot. Once that happens, the structure behind it remains at risk.
Pillow plate thermal shields approach the problem differently. By continuously removing heat from the panel, they reduce surface temperature directly and create a more stable thermal boundary. This improves equipment protection, reduces thermal stress, and helps maintain consistent operating conditions.
Heat is removed, not only resisted
The internal channel network carries thermal energy away from the hot surface instead of relying only on thermal resistance.
Temperature can be controlled
Because the shield is cooled by flowing media, operators can manage wall temperature more precisely than with passive systems alone.
Better protection for structural walls
Lower and more uniform temperature helps protect shells, housings, and process chambers from localized overheating.
Longer service life
Reduced thermal cycling and hot spots can decrease fatigue, distortion, and premature material damage.
Typical Applications of Pillow Plate Thermal Shields
Pillow plate thermal shields are most valuable where large surfaces face intense thermal load and where operators need a strong, welded, actively cooled panel instead of a purely insulating layer.
Chemical and Petrochemical Reactors
In reactor shells and high-temperature process enclosures, pillow plate thermal shields help remove heat from exposed surfaces while supporting safer and more stable operation.
Waste-to-Energy and Incineration Systems
Incinerator walls and hot gas sections are exposed to severe thermal conditions. Actively cooled pillow plate panels can help protect the structure and improve temperature management.
Boilers and Thermal Power Equipment
In certain wall cooling or protective panel applications, pillow plates provide a compact welded solution with broad surface coverage and high mechanical robustness.
Design Considerations
The design of a pillow plate thermal shield is driven by both heat load and mechanical requirements. Unlike standard heat exchangers, these panels often need to function as part of the protective structure while also handling coolant pressure and thermal expansion.
- Surface heat flux and expected hot side temperature
- Cooling media type, inlet temperature, and flow rate
- Allowable pressure drop through the internal channels
- Panel thickness, weld pattern, and inflation height
- Material selection for corrosion and temperature resistance
- Installation geometry, panel size, and support arrangement
In many projects, the most important question is not only how much heat must be blocked, but how much heat must be removed continuously from the exposed wall.
Materials and Construction Advantages
Pillow plate thermal shields are typically manufactured in stainless steel for industrial duty, with material selection based on operating temperature, corrosion risk, and fabrication requirements. Compared with more fragile or layered shielding concepts, the welded all-metal structure offers excellent robustness in demanding environments.
Welded double-wall construction
Provides a durable panel structure with internal channels formed by inflation.
Large-area coverage
Suitable for wall-mounted or panel-type protection where broad thermal exposure must be managed.
No gaskets in the heat zone
A fully welded metal solution avoids elastomer limitations in elevated temperature applications.
Custom geometry
Panel size, channel layout, and nozzle positions can be adapted to the equipment structure.
Pillow Plate Thermal Shield vs Passive Heat Shield
The key difference is function. Passive shields slow heat transfer. Pillow plate thermal shields actively extract heat. For high-temperature process equipment, that difference can be decisive.
| Comparison Point | Passive Heat Shield | Pillow Plate Thermal Shield |
|---|---|---|
| Primary role | Reduce heat transfer | Remove heat and control wall temperature |
| Thermal stability | Limited by shield temperature build-up | Improved by continuous cooling flow |
| Structure | Often layered or reflective | Welded inflated double-wall metal panel |
| Best use case | Moderate thermal exposure | High heat flux and large heated surfaces |
| Temperature control | Indirect | Direct and more controllable |
Where Pillow Plate Thermal Shields Fit in Thermal System Design
In thermal engineering, different components solve different heat management problems. Standard pillow plates are widely used for heat transfer and vessel jackets. A thermal shield version extends that concept into equipment protection, where the panel acts as a cooled barrier between the heat source and the structure behind it.
For projects involving aggressive or high-temperature service, system designers often evaluate multiple technologies, including shell and plate heat exchangers, spiral heat exchangers, and specialized plate solutions. The correct choice depends on whether the goal is process heat transfer, wall protection, or both.
Frequently Asked Questions
Is a pillow plate thermal shield the same as insulation?
No. Insulation reduces heat transfer by resistance. A pillow plate thermal shield actively removes heat through internal coolant flow, so it behaves more like a protective cooling system than a passive insulating layer.
What cooling media can be used inside the pillow plate?
Water is common, but the actual media depends on the process temperature, corrosion conditions, and overall thermal system design. Thermal oil or other fluids may also be considered in specific applications.
Which industries use pillow plate thermal shields?
Typical applications include industrial furnaces, waste-to-energy systems, incineration equipment, reactors, boilers, and other high-temperature process systems where structure protection and temperature control are important.
Why use pillow plates instead of a conventional jacket or coil?
Pillow plates offer broad surface coverage, a strong welded double-wall structure, and a flexible internal flow pattern. They are especially useful when the equipment wall itself needs to become a cooled protective surface.
Discuss Your Pillow Plate Thermal Shield Application
If your project involves furnace wall cooling, high-temperature thermal protection, or a large actively cooled panel, HEXNOVAS can evaluate the application and propose a suitable pillow plate configuration.
