Oil and cooling fluid pass through alternating brazed plate channels. High turbulence improves heat transfer while specialized threaded, flange, SAE flange or SAE O-ring connections simplify integration into lubrication and hydraulic circuits.
Published platforms
BL26 / BL30 / BL120
Maximum pressure
Up to 45 bar
Maximum plate count
Up to 200 plates
Connection options
Thread / flange / SAE / SAE O-ring
Engineering explained
See what is happening inside the exchanger.
Product imagery is paired with technical context so buyers and engineers can understand construction, flow path and configuration—not just the exterior.
01
Connections designed around the hydraulic system

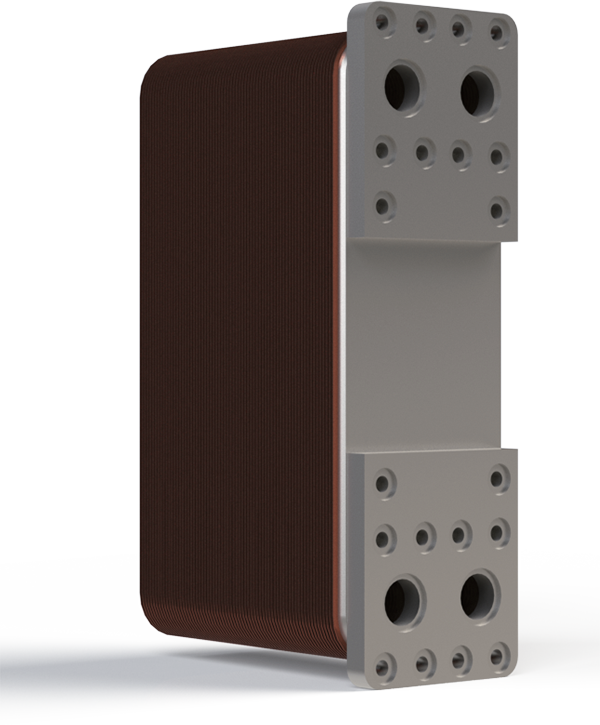

Threaded, flange, SAE flange and SAE O-ring arrangements allow the oil cooler to match mobile, industrial and heavy-equipment piping standards.
Models & technical data
Compare models and published specifications.
Compare circuit arrangement and overall dimensions at a glance, then open a product size for its product view, dimension drawing and technical summary.
Published HEXNOVAS BPHE oil-cooler platforms. N = number of plates. Oil viscosity, temperatures, coolant, allowable pressure drop and connection standard determine the final configuration.
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Model details
BL26
HEXNOVAS BPHE Oil Coolers
Product configurationDimension drawing
Circuit
Single
Width (mm)
111 mm
Height (mm)
310 mm
Thickness E (mm)
10.9 + 2.29 × N
Max. pressure (bar)
45
Max. plates (pcs)
200
Connection family
Thread / flange / SAE
Port arrangement
Project-specific
Platform
Oil cooler
Plate material
SS304 / SS316L
Brazing material
Copper / duty-specific
Connections
Thread / flange / SAE / SAE O-ring
Maximum pressure
Up to 45 bar
Dimensions are for reference only. Final dimensions are subject to the approved order drawing. HEXNOVAS reserves the right of final interpretation.
Oil-cooler platforms support hydraulic and mobile-equipment interfaces selected around flow, pressure and installation envelope.
Thread
Standard flange
SAE flange
SAE O-ring
Special connection on request
Representative connection geometries. Final availability is confirmed during product selection.
Why this technology
Designed around performance, integrity and serviceability.
High cooling capacity in a compact installation envelope
Connection options for mobile and industrial hydraulic systems
Published configurations up to 45 bar
Low hold-up volume and fast thermal response
Product configuration
Structure and material options.
Available configurations
BL26, BL30 and BL120 oil-cooler platforms
Threaded and standard flange connections
SAE flange and SAE O-ring options
Custom connection arrangements
Material options
SS304 / SS316L heat-transfer plates
Copper or duty-specific brazing material
Stainless steel connection components
Typical applications
Where this exchanger fits.
01
Gearboxes and hydraulic systems
02
Automotive and railway equipment
03
Construction and power-generation equipment
04
Pulp, paper, steel and heavy industry
Selection information
What our engineers need from you.
Provide oil type and viscosity, oil and coolant flow rates, inlet and target outlet temperatures, heat load, design pressure, allowable pressure drop and preferred connection standard.
Frequently asked questions
Key questions before product selection.
How does BPHE Oil Coolers work?
Oil and cooling fluid pass through alternating brazed plate channels. High turbulence improves heat transfer while specialized threaded, flange, SAE flange or SAE O-ring connections simplify integration into lubrication and hydraulic circuits.
What information is required to select the right product?
Provide oil type and viscosity, oil and coolant flow rates, inlet and target outlet temperatures, heat load, design pressure, allowable pressure drop and preferred connection standard.
The final size is confirmed by thermal calculation using flow rates, inlet and outlet temperatures, allowable pressure drop, design pressure and fluid properties.
Product documentation
Catalogue and technical downloads.
Use the published catalogue for product-range reference. Final dimensions, ratings and materials are confirmed for the selected model and operating duty.
